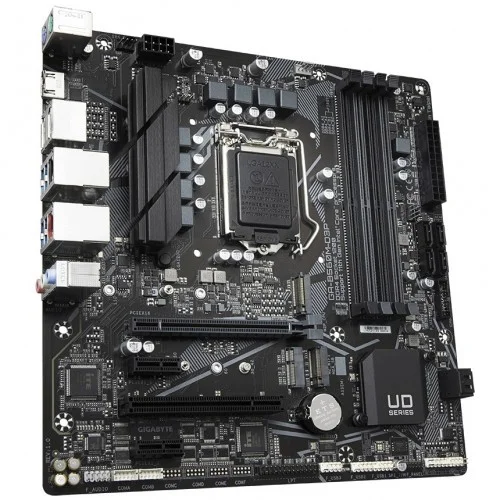

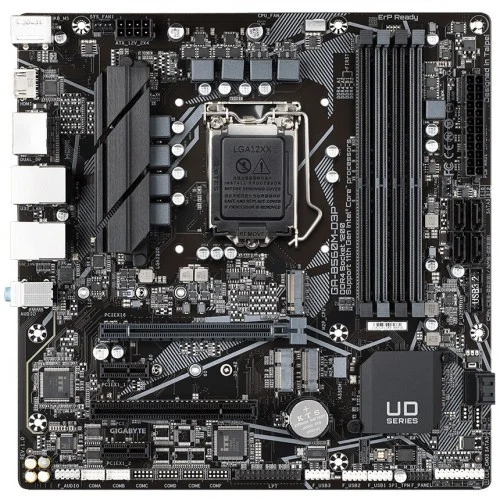

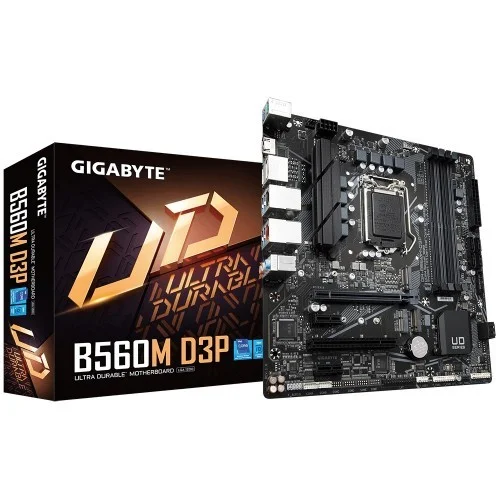

Gigabyte B560M-D3P Ultra Durable Intel 10th and 11th Gen Micro ATX Motherboard

Name: Gigabyte B560M-D3P Ultra Durable Intel 10th and 11th Gen Micro ATX Motherboard
Brand: GIGABYTE
Availability: OutOfStock

2-3 Days

Gigabyte B560M-D3P Ultra Durable Intel 10th and 11th Gen Micro ATX Motherboard

Stock: 2-3 Days
Model: Gigabyte B560M-D3P
Product id: 20209

Based on 0 reviews. - Write a review

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Add to Compare

• Supports 11th and 10th Gen Intel Core Processors • Direct 6+2 Phases Digital VRM • Dual Ultra-Fast NVMe PCIe • High Quality Audio Capacitors

যেকোনো অনাকাঙ্ক্ষিত ঝামেলা এড়াতে, অনলাইনে অর্ডার করার আগে আমাদের হেল্পলাইনে (+8801612-266507) কল করে পণ্যের স্টক এবং ডেলিভারি সম্পর্কে জেনে নেওয়ার জন্য বিনীত অনুরোধ করা হচ্ছে।

Gigabyte B560M-D3P Ultra Durable Intel 10th and 11th Gen Micro ATX Motherboard

Gigabyte B560M-D3P Ultra Durable Intel 10th and 11th Gen Micro ATX Motherboard supports 11th and 10th Gen Intel Core Series Processors. The board has Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs. It features direct 6 + 2 Phases Digital VRM with Low RDS(on) MOSFETs. The Motherboard has Shielded Memory Routing for Better Memory Overclocking. It comes with a Fully Covered Thermal Design with High Coverage MOSFET Heatsinks. This is powered by a fast 2.5GbE LAN with Bandwidth Management. It supports Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard It comes with Rear USB 3.2 Gen2 Type-C and Front USB3.2 Gen1 Type-C for Connecting Devices. This Motherboard has pre-installed IO Shield for Easy and Quick Installation. RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips. Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP. Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card.

The Gigabyte B560M-D3P Ultra Durable Intel 10th and 11th Gen Micro ATX Motherboard has 3 Years Warranty.

Specifications:

Basic Information
Supported CPU	11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors
Chipset	Intel B560 Express Chipset
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16 (PCIEX16) (The PCIEX16 slot conforms to PCI Express 4.0 standard.)(Note) 2 x PCI Express x1 slots (PCIEX1_1/PCIEX1_2) (The PCIEX1 slots conform to PCI Express 3.0 standard.) 1 x PCI slot 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
M.2 Socket	1 x M.2 connector (Socket 3, M key, type 2260/ 2280/ 22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)(Note) Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)
Memory
Type	DDR4
Slots	4 x DIMM
Supported Memory	11th Generation Intel Core i9/ i7/ i5 processors: Support for DDR4 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz memory modules 10th Generation Intel Core i9/ i7 processors: Support for DDR4 2933/ 2666/ 2400/ 2133 MHz memory modules 10th Generation Intel Core i5/ i3 /Pentium /Celeron processors: Support for DDR4 2666/ 2400/ 2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules (operate in non-ECC mode) non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Extreme Memory Profile (XMP) memory modules
Maximum Memory	128 GB
Graphics
Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @30 Hz * Support for HDMI 1.4 version and HDCP 2.3. 2 x DisplayPorts, supporting a maximum resolution of 4096 x 2304 @60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) Support for up to 3 displays at the same time
Connector & Ports
HDMI	1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @30 Hz
Display Port (s)	2 x Display Ports, supporting a maximum resolution of 4096 x 2304 @60 Hz
USB (s)	6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset + 2 USB 2.0 Hubs: 2 x USB 2.0/1.1 ports available through the internal USB header
LAN Port (s)	Intel GbE LAN chip (1 Gbit/ 100 Mbit) (LAN1) Intel 2.5GbE LAN chip (2.5 Gbit/ 1 Gbit/100 Mbit) (LAN2)
Supported Storage	CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)(Note) Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB) 6 x SATA 6Gb/s connectors Intel Optane Memory Ready
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Internal I/O Ports	1 x 24-pin ATX main power connector 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header front panel audio header 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers 2 x serial port headers parallel port header 1 x Clear CMOS jumper
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Warranty Information
Manufacturing Warranty	3 year
Others
Special Features	Support for APP Center @BIOS @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install
