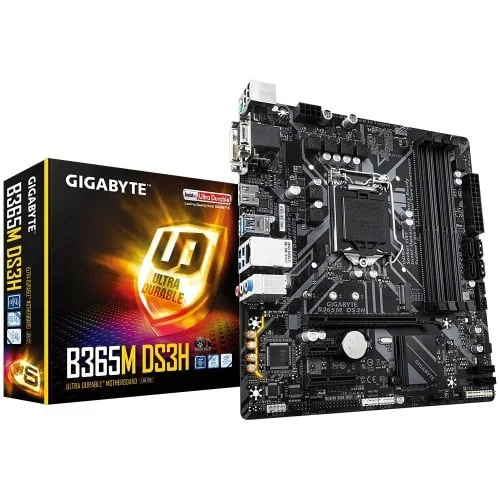

Gigabyte B365M DS3H DDR4 9th and 8th Gen Motherboard

Out Of Stock

Stock: Out Of Stock
Model: B365M DS3H
Product id: 17467

Based on 0 reviews. - Write a review

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে আমাদের হেল্পলাইন +8801612-266507 নম্বরে কল দিয়ে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

• Supports 9th and 8th Gen Intel Core Processors • Dual Channel DDR4 • New Hybrid Digital PWM Design • Ultra-Fast M.2 with PCIe Gen 3X4

Key Features
Form Factor	mATX
Basic Information
Chipset	Intel B365
Memory
Ram Type	DDR4

Gigabyte B365M DS3H DDR4 9th and 8th Gen Motherboard

Gigabyte B365M DS3H Micro ATX ultra durable motherboard has the compatibility with 9th/8th Generation Intel Core i9 / i7 / i5 / i3 / Pentium / Celeron Processors. This board also supports dual channel DDR4 maximum 64GB memory and dual ultra-fast M.2 with 4xPCIe, DVI-D, HDMI, 6xSATA & Crossfire. Focusing on the graphics, it has integrated Intel HD graphics with 1GB shared graphics memory containing the resolution of 4096x2160@30 Hz for HDMI & 1920x1200@60 Hz for DVI-D & D-Sub port. This latest motherboard has the facility of USB 3.1 Gen2 Type-C & Type-A. It supports Windows 10 64-bit. This extreme device comes with 03 years of warranty. Buy Gigabyte 9th gen boards within your budget in Chattagram, Rangpur, Dhaka & Sylhet. Star Tech provides the best price with quality service. Order online your desired device and build your dream PC in any place in Bangladesh.

Specification:

Basic Information
Supported CPU	9th/8th Generation Intel Core i9 / i7 / i5 / i3 / Pentium / Celeron Processors
Chipset	Intel B365 Express Chipset
BIOS	2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16, 1 x PCI Express x4 slot, 1 x PCI Express x1 slot
M.2 Socket	1 x M.2 Socket 3 (type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
Memory
Type	DDR4
Slots	4
Supported Memory	2666/2400/2133 MHz
Maximum Mamory	64GB
Graphics
Graphics	1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz - The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz - Support for HDMI 1.4 version and HDCP 2.2. Support for up to 3 displays at the same time
Max Shared Memory	1 GB
Connector & Ports
HDMI	Yes ( 1.4 )
USB (s)	6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Realtek GbE LAN chip (10/100/1000 Mbit)
Supported Storage	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) 6 x SATA 6Gb/s connectors - Support for RAID 0, RAID 1, RAID 5, and RAID 10
Audio	Audio chipset : 2/4/5.1/7.1-channel Audio channel : Realtek ALC887
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 1 x M.2 Socket 3 connector 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper
D-Sub (s)	Yes
DVI-D (s)	Yes
Warranty Information
Manufacturing Warranty	03 Year Warranty
