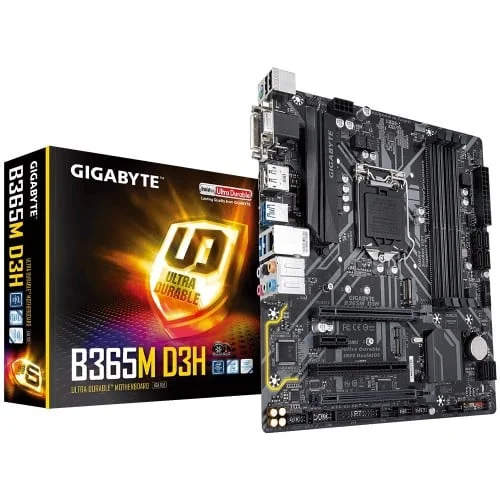

Gigabyte B365M D3H DDR4 Intel LGA1151 Socket Motherboard

Out Of Stock

Stock: Out Of Stock
Model: B365M D3H
Product id: 17470

Based on 0 reviews. - Write a review

Add to Cart

Buy Now Ask Question

Add to Wish List Add to Compare

Supports 9th and 8th Gen Intel Core Processors Dual Channel DDR4 memory New Hybrid Digital PWM Design Ultra-Fast M.2 with PCIe Gen3 X4

যেকোনো অনাকাঙ্ক্ষিত ঝামেলা এড়াতে, অনলাইনে অর্ডার করার আগে আমাদের হেল্পলাইনে (+8801612-266507) কল করে পণ্যের স্টক এবং ডেলিভারি সম্পর্কে জেনে নেওয়ার জন্য বিনীত অনুরোধ করা হচ্ছে।

Gigabyte B365M D3H DDR4 Intel LGA1151 Socket Motherboard

Gigabyte B365M D3H Micro ATX ultra durable motherboard has the compatibility with 9th/8th Generation Intel Core i9 / i7 / i5 / i3 / Pentium / Celeron Processors. This board also supports dual channel DDR4 maximum 64GB memory and dual ultra-fast M.2 with 4xPCIe, DVI-D, HDMI, 6xSATA & Crossfire. Focusing on the graphics, it has integrated Intel HD graphics with 1GB shared graphics memory containing the resolution of 4096x2160@30 Hz for HDMI & 1920x1200@60 Hz for DVI-D & D-Sub port. This latest motherboard has the facility of USB 3.1 Gen2 Type-C & Type-A. It supports Windows 10 64-bit.

Buy Gigabyte 9th gen boards within your budget in Chattagram, Rangpur, Dhaka & Sylhet. Star Tech provides the best price with quality service. Order online your desired device and build your dream PC in any place in Bangladesh.

This extreme device comes with 3 years of warranty

Specification:

Basic Information
Supported CPU	9th/8th Generation Intel Core i9 / i7 / i5 / i3 / Pentium / Celeron Processors
Chipset	Intel B365 Express
BIOS	2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16 (PCIEX16), 1 x PCI Express x16 slot, running at x4 (PCIEX4), 1 x PCI Express x1 slot, 1 x PCI slot
M.2 Socket	1 x M.2 Socket 3 (type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
Memory
Type	DDR4
Slots	4
Supported Memory	2666/ 2400/ 2133 MHz
Maximum Mamory	64 GB
Graphics
Graphics	1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz - The DVI-D port does not support D-Sub connection by adapter. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz - Support for DisplayPort 1.2 version, HDCP 2.2, and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz - Support for HDMI 1.4 version and HDCP 2.2. Support for up to 3 displays at the same time
Max Shared Memory	1 GB
Connector & Ports
HDMI	Yes ( 1.4 )
Display Port (s)	1 x Display Port, supporting a maximum resolution of 4096x2304@60 Hz - Support for Display Port 1.2 version, HDCP 2.2, and HDR
USB (s)	1 x USB Type-C port on the back panel, with USB 3.1 Gen 1 support 5 x USB 3.1 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Intel GbE LAN chip (10/100/1000 Mbit)
Supported Storage	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 - Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors
Audio	Audio chipset : Realtek ALC892 Audio channel : 2/4/5.1/7.1-channel
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x RGB LED strip header 1 x M.2 Socket 3 connector 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper
D-Sub (s)	1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
DVI-D (s)	1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz - The DVI-D port does not support D-Sub connection by adapter
Warranty Information
Manufacturing Warranty	03 Years Warranty
