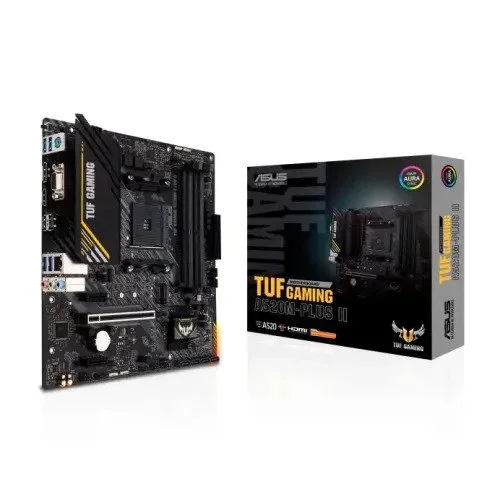

Asus TUF GAMING A520M-PLUS II AMD AM4 mATX Motherboard

-100 % Discontinued

Stock: Discontinued
Model: TUF GAMING A520M-PLUS II
Product id: 24072

Based on 0 reviews. - Write a review

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে আমাদের হেল্পলাইন +8801612-266507 নম্বরে কল দিয়ে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

- Supported CPU: Ryzen 5000/ 4000 G/ 3000 Series
- Supported RAM: 4 x DIMM, Max. 128GB, DDR4
- Graphics Output: 1 x DisplayPort 1.2, 1 x HDMI 2.1, 1 x D-Sub
- : Onboard RGB headers

Specification

Supported CPU	AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
Chipset	A520
Memory	4 X DIMM, Max. 128GB, DDR4 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4266(OC) /4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/3000/2800/2666/2400/2133 MHz, Un-Buffered Memory
Graphics	1 X DisplayPort 1.2 1 X HDMITM 2.1(4K@60Hz) 1 X D-Sub
Slots	AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors 1 X PCIe 3.0 X16 Slot (Supports X16 Mode) AMD A520 Chipset 2 X PCIe 3.0 X1 Slots
Supported Storage	AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors M.2 Slot (Key M), Type 2242/2260/2280 (Supports PCIe 3.0 X4 & SATA Modes) AMD A520 Chipset 4 X SATA 6Gb/S Ports Support RAID 0, 1, 10
LAN	1 X Realtek 1Gb Ethernet TUF LANGuard
Audio	Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack Detection, Multi-Streaming, Front Panel Jack-Retasking - Supports Up To 24-Bit/192 KHz Playback" Audio Features - Audio Shielding - Premium Japanese Audio Capacitors - Dedicated Audio PCB Layers *A Chassis With An HD Audio Module In The Front Panel Is Required To Support 7.1 Surround Sound Audio Output.
USB Port	4 X USB 3.2 Gen 1 Ports (4 X Type-A) 2 X USB 2.0 Ports (2 X Type-A) Front USB:Total 6 Ports 1 X USB 3.2 Gen 1 Header Supports Additional 2 USB 3.2 Gen 1 Ports 2 X USB 2.0 Headers Support Additional 3 USB 2.0 Ports
Internal I/O Ports	Fan And Cooling Related 1 X 4-Pin CPU Fan Header 2 X 4-Pin Chassis Fan Headers Power Related 1 X 24-Pin Main Power Connector 1 X 8-Pin +12V Power Connector Storage Related 1 X M.2 Slot (Key M) 4 X SATA 6Gb/S Ports USB 1 X USB 3.2 Gen 1 Header Supports Additional 2 USB 3.2 Gen 1 Ports 2 X USB 2.0 Headers Support Additional 4 USB 2.0 Ports Miscellaneous 2 X AURA Addressable Gen 2 Header 2 X AURA RGB Headers 1 X Clear CMOS Header 1 X COM Port Header 1 X Front Panel Audio Header (AAFP) 1 X S/PDIF Out Header 1 X Speaker Header 1 X SPI TPM Header (14-1pin) 1 X 10-1 Pin System Panel Header
External I/O Ports	4 X USB 3.2 Gen 1 Ports (4 X Type-A) 2 X USB 2.0 Ports (2 X Type-A) 1 X BIOS FlashBack™ Button 1 X DisplayPort 1 X HDMI Port 1 X D-Sub 1 X Realtek 1Gb Ethernet Port 3 X Audio Jacks 1 X PS/2 Keyboard/Mouse Combo Port
DIMENSIONS	24.4cm X 24.4cm
Form Factor	MicroATX
Warranty	3 Years

Asus TUF GAMING A520M-PLUS II AMD AM4 microATX Motherboard

The Asus TUF GAMING A520M-PLUS II Motherboard distills essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution, and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability. When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case. With upgraded power delivery and comprehensive cooling options to fuel the latest AMD Ryzen CPUs, plus support for faster memory, the Asus TUF GAMING A520M-PLUS II Motherboard is the perfect foundation for your next high-core-count battle rig. TUF Gaming motherboards are designed to be easy to set up and configure just the way you want even for first-time builders. The TUF Gaming Alliance eco-system makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity. TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits, and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger. Asus TUF GAMING A520M-PLUS II Motherboard provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere. Turbo LAN is a network-optimization software for customizable packet prioritization. With cFosSpeed traffic-shaping technology, it allows you to configure application priority via an intuitive interface and reduces network lag. The Asus TUF GAMING A520M-PLUS II Motherboard comes with 3 years of warranty.
