Asus ROG Strix B550-F Gaming AM4 ATX Motherboard

Name: Asus ROG Strix B550-F Gaming AM4 ATX Motherboard
Brand: ASUS
Availability: OutOfStock

Discontinued

Asus ROG Strix B550-F Gaming AM4 ATX Motherboard

Stock: Discontinued
Model: B550-F Gaming
Product id: 18096

Based on 0 reviews. - Write a review

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে আমাদের হেল্পলাইন +8801612-266507 নম্বরে কল দিয়ে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

• AMD AM4 socket: Ready for 3rd Gen AMD Ryzen Processors • Best gaming connectivity • Best gaming connectivity • Industry-leading gaming audio

Key Features
Form Factor	ATX
Basic Information
Supported CPU	Ryzen 5000, Ryzen 4000G
Chipset	AMD B550

Asus ROG Strix B550-F Gaming AM4 ATX Motherboard

ROG Strix B550 Gaming series motherboards offer a feature-set usually found in the higher-end ROG Strix X570 Gaming series, including the latest PCIe 4.0. With robust power delivery and effective cooling, ROG Strix B550 Gaming is well-equipped to handle 3rd Gen AMD Ryzen CPUs. Boasting futuristic aesthetics and intuitive ROG software, ROG Strix B550-F Gaming gives you a head start on your dream build. ROG Strix B550-F Gaming is PCIe 4.0-ready and provides the latest connectivity options for supersmooth networking and blisteringly fast file transfers. Audio enhancements give you a massive advantage, allowing you to pick up on the subtlest of cues for a completely immersive gaming experience. ROG Strix B550-F Gaming features two M.2 slots, one of which supports the latest PCIe 4.0 standard to provide maximum storage flexibility and the fastest data speeds available via the 3rd Gen AMD Ryzen platform. Both M.2 slots support up to the type 22110 socket and NVM Express RAID for a performance boost. Onboard 2.5 Gb Ethernet gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections for speedy file transfers, lag-free gaming, and high-res video streaming. Built-in ROG SupremeFX audio technology ensures pristine audio for ROG Strix B550-F Gaming. Along with ensuring a flat frequency response for a neutral, detailed sound signature, it offers two front-panel outputs driven by op-amps that deliver high-quality audio to gaming headsets. ROG Strix B550-F Gaming provides robust power delivery to fuel Ryzen's cores, comprehensive cooling, and support for faster memory — so it has everything you need to load up your build with high-performance components for playing in the big leagues. Digital power control and an array of power stages ensure ROG Strix B550-F Gaming has the muscle to control the latest AMD CPUs. The ProCool socket is built to exacting specifications to ensure flush contact with the PSU power lines, enabling lower impedance and better heat dissipation. ASUS DIGI+ Power Control is an innovative set of controllers for digital VRM and DRAM Voltage. These controllers offer ultra-precise memory and voltage tuning for optimal system efficiency, stability, and performance. 12+2 power stages combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that the AMD CPUs demand. Superior chokes and durable capacitors are engineered to resist extreme temperatures and provide up to 110% better performance than the industry standard. The 6-layer PCB quickly dissipates heat around the VRM to improve overall system stability and give the CPU more overclocking headroom. The cyberpunk-inspired aesthetics of ROG Strix B550-F Gaming are accentuated by the bold slashes and cybertext. By pairing your rig with other products from the diverse ROG ecosystem, you can create a fully customized gaming setup that reflects your personal style.

Asus ROG Strix B550-F Gaming Review

We review the new STRIX B550-F Gaming Wi-Fi motherboard from ASUS. This board is aimed and priced in a more mainstream fashion but still is fitted with features like AX WIFI6 and 2.4 GigE as well as a set of M2 SSD slots. All Ryzen processors Gen processors are supported on this board. An 8+4 pin dual pin connector already indicates a strong VRM, and this motherboard as such has 12+2 phases. ASUS applies a somewhat more simplified shielded design, optimized for cooling, and armed with a proper feature set for that Ryzen processor. It also has and has nice hidden M2 slots, two of them. The motherboard has been fitted with the usual suspects and then some, including a 2.5 Gigabit (Intel) ethernet and then WIFI6 in the form of AX. When it comes to audio you will run into an ALC 1220 Codec from Realtek. B550, believe it or not, the B series typically are business (quick add-in) motherboards, or for consumers, we refer to it as the B for budget. Alongside the Ryzen 3 3000 series, there is X570, and now a B550 chipset for socket AM4 processors. PCI Gen 4.0 still is applied to the x16 slot and one M2 slot (the processor provides it (you need a Ryzen 3000 processor for PCIe Gen 4.0, older procs will offer PCIe Gen 3.0). The B550 chipset and DMI uplink otherwise are all PCIe Gen 3.0. Little about the ASUS ROG Strix B550-F Gaming [WI-FI] can be referred to as 'budget' though, as this easily could be a premium motherboard due to its features and a BD price tag. The board as stated is positioned in an higher end region of what is considered the mainstream segment, it does look properly STRIX styled, stuff we like of course. Also, the new board has some interesting new features Have a peek, and then let's head onwards into the review my man.

Specification:

Basic Information
Supported CPU	AMD AM4 Socket for 3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors Processors
Chipset	AMD B550
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Expansion Slots
PCI	3rd Gen AMD Ryzen Processors 1 x PCIe 3.0 x16 (x16 mode) AMD B550 Chipset 1 x PCIe 3.0 x16 (x4 mode) 3 x PCIe 3.0 x1
M.2 Socket	3rd Gen AMD Ryzen Processors : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) AMD B550 Chipset : 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices
Memory
Type	Dual Channel Memory Architecture
Slots	4 x DIMM slots
Supported Memory	4400(O.C)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3600(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory OptiMem II ECC Memory (ECC mode) support varies by CPU
Maximum Mamory	128GB
Graphics
Graphics	Integrated Graphics Processor 1 x DisplayPort 1.2 1 x HDMI 2.1(4K@60HZ) Supports AMD 2-Way CrossFireX Technology

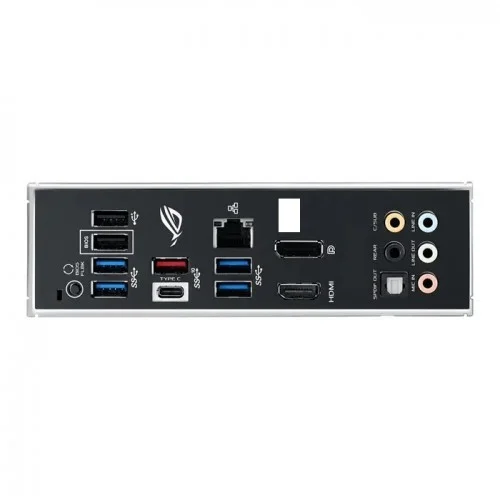

Connector & Ports
HDMI	1 x HDMI 2.1(4K@60HZ)
Display Port (s)	1 x DisplayPort 1.2
USB (s)	Rear USB Port ( Total 8 ) 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s)
LAN Port (s)	Intel I225-V 2.5Gb Ethernet ASUS LANGuard
Supported Storage	Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports 3rd Gen AMD Ryzen Processors : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) AMD B550 Chipset : 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 10
Audio	ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/192kHz playback Audio Feature : - SupremeFX Shielding Technology - Gold-plated jacks - Optical S/PDIF in port(s) at the back panel - Audio Shielding - Premium Japanese audio capacitors - Audio Cover
Internal I/O Ports	1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x AAFP connector 2 x Aura RGB Strip Header(s) 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x System panel(s) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s)
Warranty Information
Manufacturing Warranty	03 Years Warranty
Others
Special Features	ROG Exclusive Software - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS® Sound Unbound - Overwolf - Anti-virus software ASUS Exclusive Software Features Armoury Crate - Aura Creator - Aura Sync - AI Noise Cancelling Microphone AI Suite 3: - PPSU EPU DIGI+ VRM Fan Xpert 4 TurboV EVO - EZ update WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ ModeAura Sync - Standard RGB header(s) - Addressable Gen 2 RGB header(s) ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink ASUS EZ DIY -BIOS FlashBack™ button -BIOS FlashBack™ LED -Clear CMOS header -ProCool -Pre-mounted I/O shield - SafeSlot

ASUS B550 SERIES MOTHERBOARD LIST IN BANGLADESH 2022

MOTHERBOARD MODEL	SIZE
ASUS Prime B550 Plus AM4 ATX Motherboard	mATX
Asus Prime B550M-K AM4 mATX AMD Motherboard	ATX
Asus TUF Gaming B550 Pro ATX AM4 Motherboard	ATX
Asus TUF Gaming B550M-E Micro ATX Motherboard	mATX
Asus TUF Gaming B550 Plus ATX AM4 Motherboard	ATX
Asus PROART B550-CREATOR AM4 AMD ATX Motherboard	ATX
ASUS ROG STRIX B550-E GAMING AM4 ATX MOTHERBOARD	ATX
Asus ROG Strix B550-A Gaming AM4 ATX Motherboard	ATX
Asus ROG Strix B550-F Gaming AM4 ATX Motherboard	ATX
ASUS ROG STRIX B550-I AMD WiFi Gaming Motherboard	ATX
Asus Prime B550M-A Wi-Fi AMD Micro ATX Motherboard	ATX
Asus Prime B550M-A Wi-Fi AMD Micro ATX Motherboard	ATX
Asus TUF Gaming B550M-Plus Micro ATX AM4 Motherboard	ATX
Asus ROG Strix B550-F Gaming (WI-FI) AM4 ATX Motherboard	ATX
Asus TUF Gaming B550M-Plus Wi-Fi Micro ATX AM4 Motherboard	ATX

Choose The Best Cooler For Your Build

AMD CPU	TDP	RECOMMANDED AIO COOLER
Ryzen 9 3950X Ryzen 9 3900X Ryzen 7 3800X	105W	ROG RYUJIN 360 ROG STRIX LC 360 RGB ROG STRIX LC 360
Ryzen 5 3600X	95W	ROG RYUJIN 240 / ROG RYUJIN 360 ROG RYUO 240 ROG STRIX LC 240 RGB WHITE EDITION ROG STRIX LC 360 RGB
Ryzen 7 3700X Ryzen 5 3600 Ryzen 5 3500X Ryzen 3 3300X Ryzen 3 3100	65W	ROG RYUJIN 240 ROG RYUO 120 / ROG RYUO 240 ROG STRIX LC 120 RGB ROG STRIX LC 240 RGB ROG STRIX 240 RGB WHITE EDITION ROG STRIX LC 120 ROG STRIX LC 240
