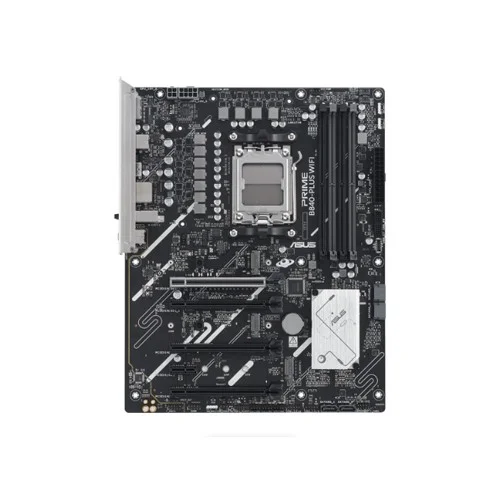

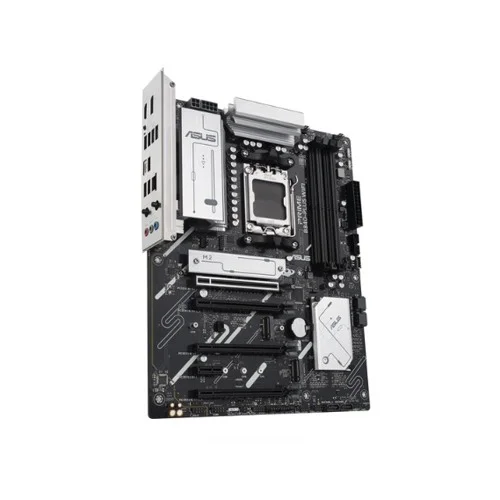

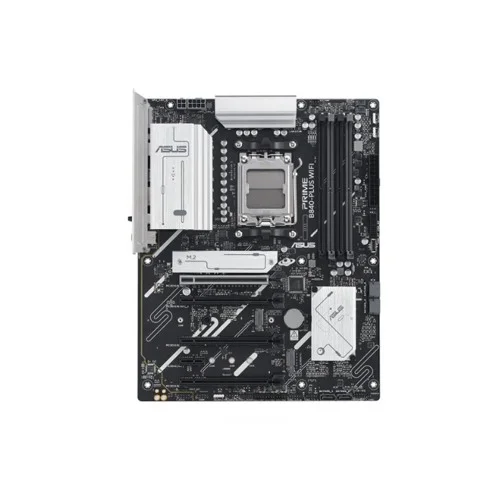

ASUS PRIME B840-PLUS WIFI AM5 ATX Motherboard

Name: ASUS PRIME B840-PLUS WIFI AM5 ATX Motherboard
Brand: ASUS
Availability: OutOfStock

Up Coming

ASUS PRIME B840-PLUS WIFI AM5 ATX Motherboard

Stock: Up Coming
Model: PRIME B840-PLUS WIFI
Product id: 27726

Based on 0 reviews. - Write a review

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

AM5 Socket
ATX Form Factor
AMD B840 Chipset
4 x Dual-Channel DDR5 Slots

Basic Information
Memory	4 x DIMM slots, max. 192GB, DDR5 Supports up to 7600+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Supported CPU	AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* * Refer to https://www.asus.com/support/download-center/ for CPU support list.
Chipset	AMD B840
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
CPU Socket	AM5
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Storage	Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)* AMD B840 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode 4 x SATA 6Gb/s ports * Specifications vary by CPU types. AMD RAIDXpert2 Technology Ryzen™ 9000 Series Processors: RAID 0/1/5/10 Ryzen™ 8000 Series Processors: RAID 0/1 Ryzen™ 7000 Series Processors: RAID 0/1/10
Memory
Slots	4x 288-Pin
Graphics
Graphics	1 x DisplayPort 1 x HDMI™ port* * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. Supports max. 8K@30Hz as specified in DisplayPort 1.4. * Supports 4K@60Hz as specified in HDMI 2.1.
Connector & Ports
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Internal I/O Ports	Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan header Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connectors 1 x 4-pin +12V CPU Power connectors Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header 1 x Thunderbolt™ (USB4®) header
Software
Operating System	Windows® 11, Windows® 10 64-bit
External Features
Expansion Slots	AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD B840 Chipset 1 x PCIe 3.0 x16 slot (support x4 mode)* 2 x PCIe 3.0 x16 slots (support x1 mode)* 1 x PCIe 3.0 x1 slot* * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). Specifications vary by CPU types. * The PCIEX16(G3)_1/3 and PCIEX1(G3) share bandwidth with PCIEX16(G3)_2. The PCIEX16(G3)_2 will run x1 mode when any of the PCIEX16(G3)_1/3 and PCIEX1(G3) slots is occupied. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Others
Special Features	ASUS 5X PROTECTION III - DIGI+ VRMI - LANGuardI - Overvoltage protectionI - SafeSlot core+I - Stainless-steel back I/OI ASUS Q-DesignI - Q-AntennaI - Q-DashboardI - Q-DIMMI - Q-LED CoreI - Q-SlotI ASUS Thermal SolutionI - Flexible M.2 heatsinkI - VRM heatsink designI ASUS EZ DIYI - BIOS FlashBack™ buttonI - BIOS FlashBack™ LEDI - Pre-mounted I/O shieldI - SafeSlot core+I Aura SyncI - Addressable Gen 2 headers
Network
Ethernet Port	1 x Realtek 2.5Gb Ethernet ASUS LANGuard

ASUS PRIME B840-PLUS WIFI AM5 ATX Motherboard

The ASUS PRIME B840-PLUS WIFI AM5 ATX Motherboard is a high-performance solution designed for AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors. Built with the AMD B840 chipset, it supports DDR5 memory up to 192GB with speeds reaching 7600+ MT/s (OC), ensuring exceptional multitasking and overclocking capabilities. This motherboard is equipped with three M.2 slots and four SATA 6Gb/s ports, allowing high-speed storage expansion. It also features PCIe 4.0 support, offering fast data transfer and enhanced system performance for gaming, content creation, and professional workloads. The Realtek 7.1 Surround Sound High Definition Audio CODEC provides an immersive audio experience, complemented by premium capacitors and audio shielding for crystal-clear sound.The ASUS PRIME B840-PLUS WIFI includes Wi-Fi capabilities, Realtek 2.5Gb Ethernet, and multiple USB ports, including USB Type-C for modern peripherals. The motherboard supports DisplayPort 1.4 and HDMI 2.1, ensuring compatibility with 8K and 4K displays for a superior visual experience. ASUS has integrated 5X PROTECTION III, featuring SafeSlot Core+, LANGuard, overvoltage protection, and a stainless-steel back I/O panel for enhanced durability. Additionally, Q-Design features like Q-DIMM, Q-Slot, and BIOS FlashBack™ simplify installation and updates. With an efficient VRM heatsink design, flexible M.2 heatsinks, and Aura Sync RGB compatibility, this motherboard balances performance, cooling, and aesthetics. The ATX form factor (30.5 cm x 24.4 cm) ensures compatibility with various PC builds, making the ASUS PRIME B840-PLUS WIFI AM5 an excellent choice for enthusiasts and professionals seeking reliability and cutting-edge technology.
