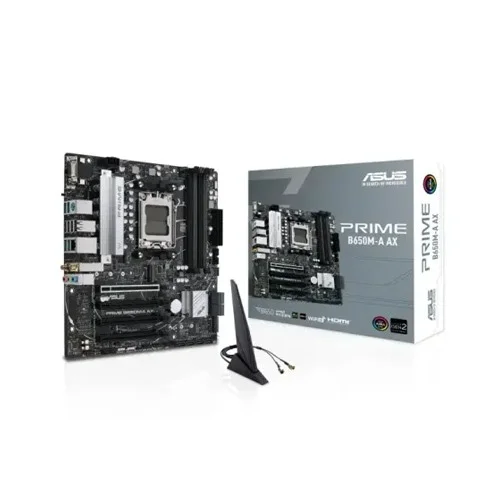

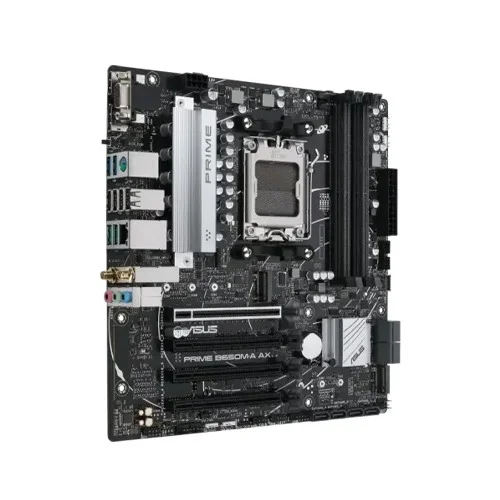

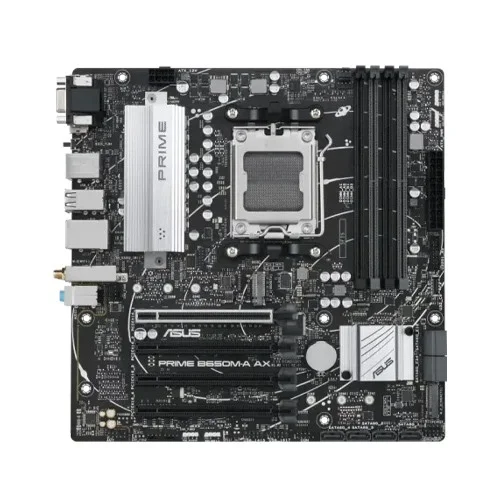

Asus PRIME B650M-A AX DDR5 AMD AM5 Micro-ATX Motherboard

Name: Asus PRIME B650M-A AX DDR5 AMD AM5 Micro-ATX Motherboard
Brand: ASUS
Availability: OutOfStock

Up Coming

Asus PRIME B650M-A AX DDR5 AMD AM5 Micro-ATX Motherboard

Stock: Up Coming
Model: PRIME B650M-A AX
Product id: 28336

Based on 0 reviews. - Write a review

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Add to Compare

Supports AMD Ryzen 8000/7000 CPUs
Dual-channel DDR5 up to 5600 MHz (OC)
PCIe 5.0 M.2 & Wi-Fi 6 built-in
HDMI 2.1, DisplayPort & USB Type-C

যেকোনো অনাকাঙ্ক্ষিত ঝামেলা এড়াতে, অনলাইনে অর্ডার করার আগে আমাদের হেল্পলাইনে (+8801612-266507) কল করে পণ্যের স্টক এবং ডেলিভারি সম্পর্কে জেনে নেওয়ার জন্য বিনীত অনুরোধ করা হচ্ছে।

Basic Information
Supported CPU	AMD Socket AM5 for AMD Ryzen 8000 & 7000 Series Desktop Processors
Chipset	AMD B650 Chipset
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Form Factor	mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers
Expansion Slots
PCI	AMD Ryzen 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x16 mode) 1 x PCIe 4.0 x16 slot (supports x1 mode) AMD B650 Chipset 2 x PCIe 4.0 x16 slots (support x1 mode)
Memory
Type	DDR5
Slots	4 DIMMs
Supported Memory	DDR5 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO) OptiMem II
Maximum Memory	128GB
Graphics
Graphics	1 x DisplayPort 1 x VGA port 1 x HDMI port* * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. Supports max. 8K@60Hz as specified in DisplayPort 1.4. * Supports 4K@60Hz as specified in HDMI® 2.1.
Connector & Ports
HDMI	1x HDMI
Display Port (s)	1x DisplayPort
USB (s)	Rear USB (Total 8 ports) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s)	1 x Realtek 2.5Gb Ethernet
Wireless Communication module	Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2
Supported Storage	Total supports 2 x M.2 slots and 8 x SATA 6Gb/s ports* AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD B650 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 8 x SATA 6Gb/s ports** * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. ** The SATA6G_E12/E34 ports cannot support RAID.
TPM (Trusted Platform Module )	1 x SPI TPM header (14-1pin)
Audio	Audio Connectors
Internal I/O Ports	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 8 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header
Others
Special Features	ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - Safeslot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED Aura Sync - Aura RGB header - Addressable Gen 2 headers
Bundled Software	ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Connectivity
VGA	1 x VGA port
Warranty Information
Warranty	3 Years

Asus PRIME B650M-A AX DDR5 AMD AM5 Micro-ATX Motherboard

The Asus PRIME B650M-A AX DDR5 AMD AM5 Micro-ATX Motherboard is designed to unleash the full potential of AMD Ryzen 8000 and 7000 series processors. Featuring the robust AMD B650 chipset and DDR5 memory support up to 5600 MHz (OC), it delivers exceptional performance for gaming, content creation, and multitasking. With its advanced PCIe 5.0 M.2 slot and multiple PCIe 4.0 expansion slots, users can enjoy ultra-fast storage and flexible GPU installation options.Built to support next-gen graphics and displays, it includes HDMI 2.1, DisplayPort 1.4, and VGA outputs. Its integrated Realtek 2.5Gb LAN and Wi-Fi 6 ensure seamless online connectivity, while Bluetooth 5.2 adds wireless convenience. Audio performance is crystal-clear with Realtek 7.1 surround sound, premium capacitors, and dedicated audio layers.This Micro-ATX motherboard is engineered with ASUS 5X Protection III, Aura Sync RGB, and Q-Design features that offer both reliability and personalization. BIOS FlashBack and UEFI BIOS EZ Mode simplify updates and system tweaks, making it user-friendly for beginners and enthusiasts alike.With eight SATA ports and dual M.2 slots supporting RAID, it’s ideal for both gaming and workstation setups. USB 3.2 Gen 2, Type-C, and comprehensive internal headers provide superior connectivity for modern peripherals.If you’re building a compact yet powerful PC, the Asus PRIME B650M-A AX DDR5 Motherboard is an outstanding choice for performance, reliability, and style. Available now at the best price in BD.

Features

Supports AMD Ryzen 8000 & 7000 Series CPUs
Dual-channel DDR5 up to 5600 MHz (OC)
PCIe 5.0 M.2 & PCIe 4.0 x16 expansion slots
Wi-Fi 6 & 2.5Gb LAN for fast connectivity
Integrated HDMI 2.1, DisplayPort & VGA
Realtek 7.1 Surround Sound Audio support
8 x SATA 6Gb/s ports & 2 x M.2 slots
USB 3.2 Gen 2, Type-C & USB 2.0 support
ASUS Aura Sync RGB lighting ready
ASUS 5X Protection III for system safety
