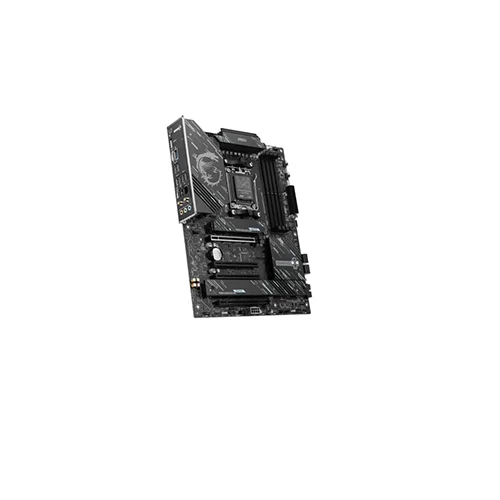

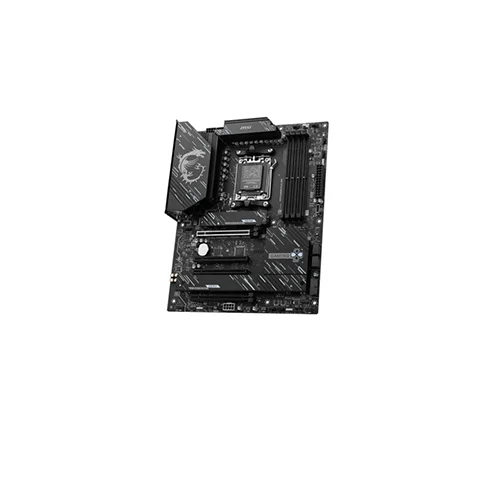

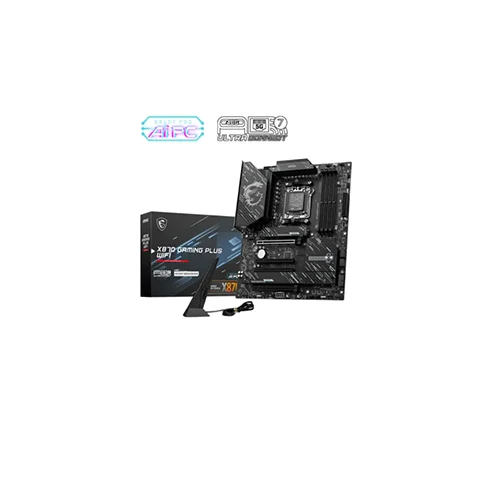

MSI X870 GAMING PLUS WIFI AM5 Motherboard

Up Coming

MSI X870 GAMING PLUS WIFI AM5 Motherboard

Stock: Up Coming
Model: X870 GAMING PLUS WIFI
Product id: 28232

Based on 0 reviews. - Write a review

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে আমাদের হেল্পলাইন +8801612-266507 নম্বরে কল দিয়ে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

Supported CPU: Ryzen 9000/8000/ 7000 Series Processors for Socket AM5
Supported RAM: 4x DDR5 8200 (OC) MT/s
Graphics Output: 1x HDMI, 1x Type-C Display Port
Features: Realtek 8126VB 5G LAN, Wi-Fi 7, Bluetooth 5.4

Basic Information
Supported CPU	Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset	AMD X870
Form Factor	ATX 243.84mmx304.8mm
Audio	Realtek ALC897 7.1-Channel High Definition Audio
Expansion Slots
PCI	4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)
M.2 Socket	3x M.2
Memory
Type	DDR5
Slots	4x UDIMM
Supported Memory	Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only*
Maximum Memory	256GB
Graphics
Graphics	1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Connector & Ports
HDMI	1x HDMI
Display Port (s)	1x Type-C DisplayPort 1.4

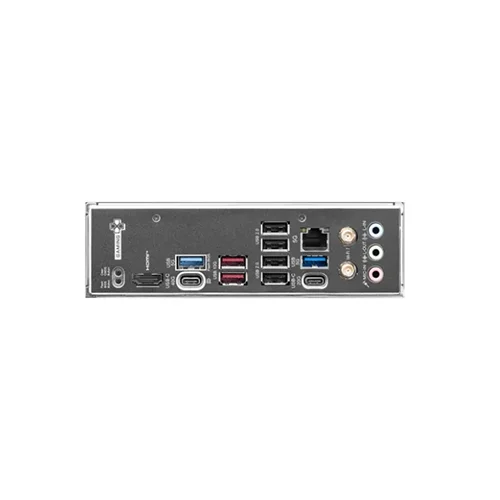

USB (s)	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) 1x USB 40Gbps Type C (Rear)
LAN Port (s)	Realtek 8126VB 5G LAN
Wireless Communication module	Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM
Supported Storage	4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices * The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors. ** USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports
RAID	Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
Internal I/O Ports	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
Others
Special Features	4x EZ Debug LED 1x EZ Digit Debug LED
Warranty Information
Warranty	3 Years Warranty

MSI X870 GAMING PLUS WIFI AM5 Motherboard

The MSI X870 GAMING PLUS WIFI is a feature-rich ATX motherboard built on the powerful AMD X870 chipset, designed for AMD Ryzen 9000, 8000, and 7000 series processors on the AM5 socket. Ideal for gamers and PC builders seeking a solid balance of performance and value, it supports the latest technologies and offers extensive connectivity and expandability. With 4 DDR5 UDIMM slots, this board supports speeds up to 8200+ MT/s (OC) and a total capacity of 256GB, ensuring fast memory performance and smooth multitasking. The primary PCIe 5.0 x16 slot ensures full bandwidth for the latest GPUs, while three additional PCIe slots (PCIe 3.0 and 4.0) provide flexibility for expansion cards. Storage is robust with four M.2 slots, including two PCIe 5.0 x4 interfaces for ultra-fast NVMe SSDs, and support for RAID 0, 1, and 10. Note that bandwidth sharing occurs between the M2_2 slot and rear USB 40Gbps Type-C ports, allowing configuration through BIOS for performance optimization. The board features a Realtek 8126VB 5G LAN and integrated Wi-Fi 7 with Bluetooth 5.4, delivering fast and stable network connectivity. For visuals, it includes an HDMI 2.1 port and a USB4 Type-C DisplayPort, supporting up to 4K 60Hz resolution—ideal for modern integrated graphics setups. Connectivity options abound with a wide array of USB ports, including USB 2.0, 5Gbps, 10Gbps, 20Gbps, and USB4 40Gbps Type-C ports. The board also includes multiple fan headers, RGB connectors, and EZ Debug LEDs for simplified troubleshooting. With a solid feature set, excellent connectivity, and future-ready specs, the MSI X870 GAMING PLUS WIFI is a dependable and high-performance foundation for any modern AM5-based gaming or productivity rig. It comes backed by a 3-year warranty.
