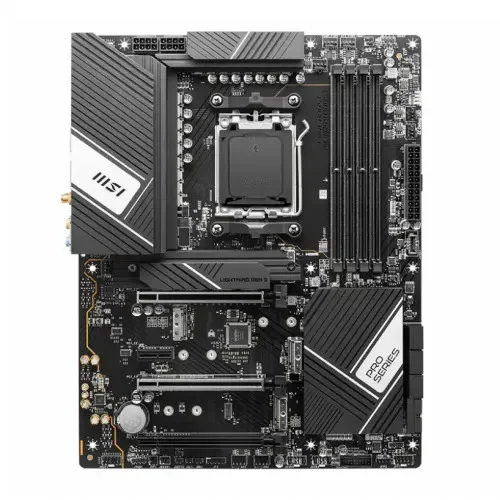

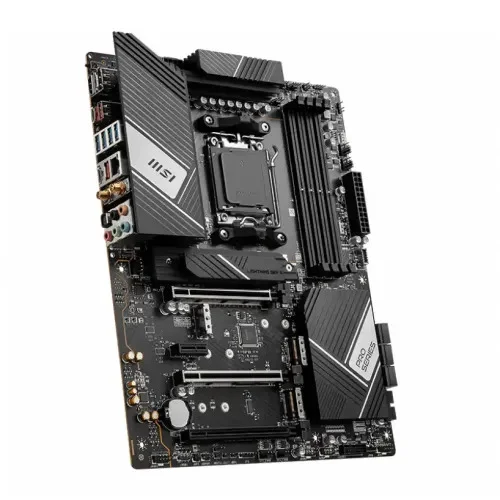

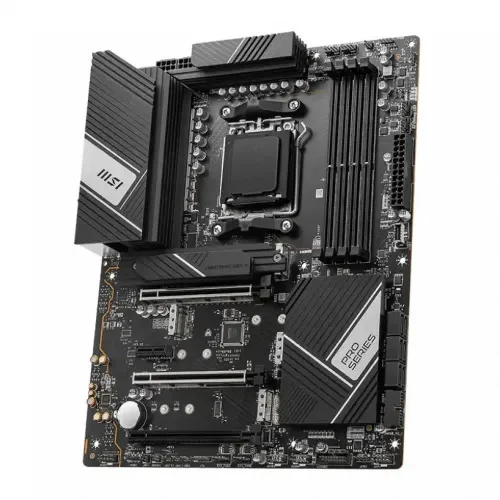

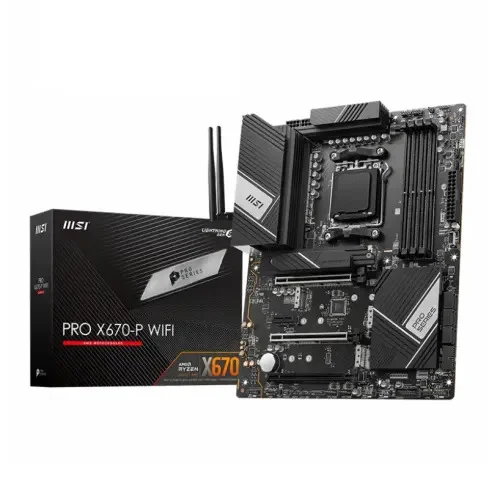

MSI PRO X670-P WIFI DDR5 AMD AM5 ATX Motherboard

Name: MSI PRO X670-P WIFI DDR5 AMD AM5 ATX Motherboard
Brand: ASUS
Availability: OutOfStock

-100 % Discontinued

MSI PRO X670-P WIFI DDR5 AMD AM5 ATX Motherboard

Stock: Discontinued
Model: PRO X670-P WIFI
Product id: 24011

Based on 0 reviews. - Write a review

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে আমাদের হেল্পলাইন +8801612-266507 নম্বরে কল দিয়ে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

- Supported CPU: Ryzen 7000 Series Processors for Socket AM5
- Supported RAM: 4x DDR5, Max 128GB
- Graphics Output: 1x HDMI, 1x Display Port, 1x Type-C Display port
- : 2.5G LAN with Wi-Fi 6E Solution

Key Features
Form Factor	ATX
Basic Information
Supported CPU	Ryzen 7000, Ryzen 7000 G
Chipset	AMD X670
General Information
Special Features	2.5GHz LAN, USB 3.2, Dual Channel DDR5, Wi-Fi 6E, Bluetooth 5.2
Memory
Ram Type	DDR5

Specification

Basic Information
Supported CPU	Supports AMD Ryzen 7000 Series Desktop Processors Socket AM5
Chipset	AMD X670
Form Factor	ATX 243.84mmx304.8mm
Audio	Realtek ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel
Expansion Slots
PCI	3x PCI-E x16 slot Supports x16/x4/x2 1x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From CPU) PCI_E4 PCIe 4.0 supports up to x2 (From Chipset)
Memory
Type	DDR5
Slots	4 DIMMs
Supported Memory	Dual Channel DDR5
Maximum Memory	128GB
Graphics
Graphics	1x HDMI Support HDMITM 2.1 FRL, maximum resolution of 4K 120Hz 1x Display Port Supports DP1.4, maximum resolution of 4K 60Hz 1x Type-C Display port Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz
Connector & Ports
HDMI	1x HDMI
Display Port (s)	1x Display Port

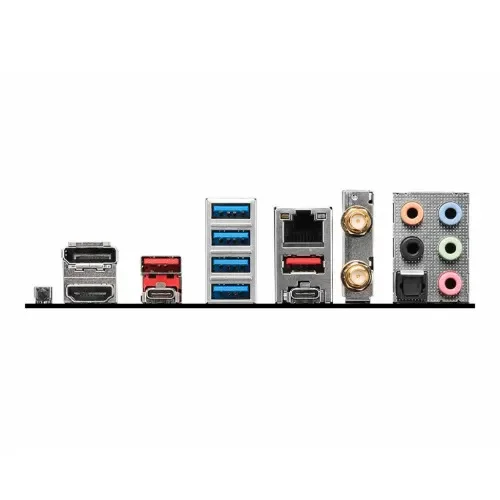

USB (s)	4x USB 2.0 ports (Front) 4x USB 3.2 Gen1 Type A ports (Rear) 4x USB 3.2 Gen1 Type A ports (Front) 2x USB 3.2 Gen2 Type A ports (Rear) 1x USB 3.2 Gen2 Type C ports (Rear) 1x USB 3.2 Gen2 Type C ports (Front) 1x USB 3.2 Gen2x2 Type C ports (Rear)
LAN Port (s)	Realtek RTL8125BG 2.5G LAN
Wireless Communication module	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2
Supported Storage	4x M.2 slot M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G port
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Internal I/O Ports	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports
Warranty Information
Manufacturing Warranty	3 Years

MSI PRO X670-P WIFI DDR5 AMD AM5 ATX Motherboard

The MSI PRO X670-P WIFI Motherboard supports AMD Ryzen 7000-series CPUs with up to 16 Zen 4 cores and dual-channel DDR5 RAM with a Maximum Memory Capacity of up to 128GB. It has a 14+2+1 Duet Rail Power System, a double 8-pin CPU power connector, Core Boost, and Memory Boost. This motherboard is made to provide an uninterrupted gaming experience on a high-performance PC. It has a bigger heatsink, 7W/mK MOSFET thermal pads, more thermal pads for the choke, and a double-sided M.2 shield Frozr. An 8-layer PCB made of server-grade components and copper that is 2 oz thicker is used to build the motherboard. Maximum storage performance is provided by the onboard and unique M.2 XPANDER-Z GEN5 DUAL PCI-Express card offered by the MSI PRO X670-P WIFI Motherboard. With PCIe 4.0 slots, Lightning Gen 5 x4 M.2, and USB 3.2 Gen 2x2 it can give a lightning-fast gaming experience. The double-sided Shield Frozr architecture makes M.2 SSDs quicker while keeping them safe and reducing throttling. The rear I/O panel now provides quick access to Turbo mode, a one-click toggle for all RGB lights, and direct safe boot entry. There are 4 M.2 slots and 2 PCIe Gen 5 x16 slots available on the MSI PRO X670-P WIFI. For efficient heat dissipation from the VRMs, the MEG series includes a MOSFET baseplate, a heatpipe, and a stacked fin array heatsink. The warranty period for the MSI PRO X670-P WIFI Motherboard is three years.
