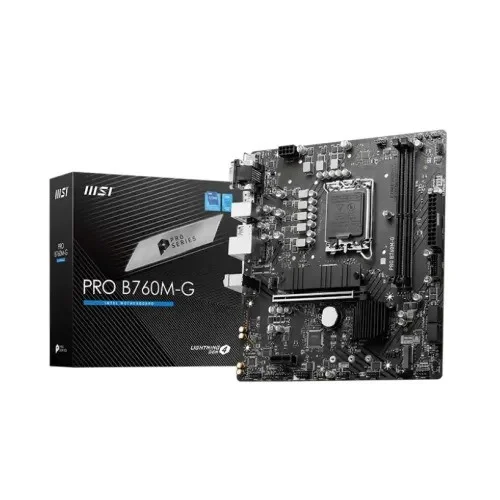

MSI PRO B760M-G mATX Motherboard

Up Coming

MSI PRO B760M-G mATX Motherboard

Stock: Up Coming
Model: PRO B760M-G
Product id: 27465

Based on 0 reviews. - Write a review

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Add to Compare

Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM: 2x DDR5, Max 96GB 6400+(OC)
Graphics Output: 1x HDMI, 1x DP, 1x VGA
Features: 2x M.2 slot, Realtek RTL8125B 2.5Gbps LAN

যেকোনো অনাকাঙ্ক্ষিত ঝামেলা এড়াতে, অনলাইনে অর্ডার করার আগে আমাদের হেল্পলাইনে (+8801612-266507) কল করে পণ্যের স্টক এবং ডেলিভারি সম্পর্কে জেনে নেওয়ার জন্য বিনীত অনুরোধ করা হচ্ছে।

Basic Information
Supported CPU	Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700
Chipset	INTEL B760
Form Factor	mATX 220mmx243.84mm
Audio	Realtek ALC897 Codec 7.1-Channel High-Definition Audio
Expansion Slots
PCI	1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 4.0 supports up to (From Chipset)
Memory
Type	DDR5
Slots	2
Supported Memory	DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 6400+ MHz • 1DPC 2R Max speed up to 5600+ MHz Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Maximum Memory	96GB
Graphics
Graphics	1x HDMI Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Connector & Ports
HDMI	1x HDMI
Display Port (s)	1x DisplayPort
USB (s)	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front)
LAN Port (s)	Realtek RTL8125B 2.5Gbps LAN
Supported Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
Internal I/O Ports	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports
Others
Special Features	4x EZ Debug LED
Warranty Information
Warranty	3 years

MSI PRO B760M-G mATX Motherboard

MSI PRO B760M-G mATX Motherboard is a versatile and reliable platform, ideal for building modern desktop systems. Powered by the Intel B760 chipset, it supports 12th and 13th Generation Intel Core processors, ensuring robust performance for gaming, productivity, and everyday tasks. This micro-ATX motherboard balances compactness with functionality, making it suitable for a wide range of builds. It supports DDR5 memory, providing faster speeds, improved efficiency, and enhanced multitasking capabilities. With support for up to 128GB of RAM across four DIMM slots, the board is well-equipped for demanding applications and future upgrades. The PRO B760M-G includes advanced storage options, featuring dual M.2 slots for NVMe SSDs, ensuring lightning-fast data transfer speeds and quick boot times. It also offers multiple SATA ports for additional storage drives, catering to users with extensive storage needs. Connectivity is another highlight, with USB 3.2 Gen 1 and Gen 2 ports for high-speed data transfers and compatibility with a wide range of peripherals. The motherboard also features DisplayPort and HDMI outputs, allowing support for high-resolution displays, making it suitable for both work and entertainment setups. Networking needs are addressed with a Gigabit LAN port, ensuring fast and stable internet connectivity. Additionally, MSI’s Realtek HD Audio provides clear and immersive sound for an enhanced multimedia experience. The board is designed with durability and ease of use in mind, featuring MSI’s EZ Debug LED for quick troubleshooting and a user-friendly BIOS for seamless system setup and optimization. Overall, the MSI PRO B760M-G mATX Motherboard is a fantastic choice for users looking to build a future-proof system with the latest technology. Its blend of performance, connectivity, and expandability makes it an excellent option for both gaming and professional use.
