MSI MPG Z690 FORCE WIFI 12th Gen ATX Motherboard

Out Of Stock

MSI MPG Z690 FORCE WIFI 12th Gen ATX Motherboard

Stock: Out Of Stock
Model: MPG Z690 FORCE WIFI
Product id: 21778

Based on 0 reviews. - Write a review

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে আমাদের হেল্পলাইন +8801612-266507 নম্বরে কল দিয়ে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

• Supports 12th Gen Intel Core/ Pentium Celeron processors for LGA 1700 socket • Supports DDR5 Memory, up to 6666+(OC) MHz • PCIe 5.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2 • 2.5G LAN with LAN Manager & Intel Wi-Fi 6E Solution

Key Features
Form Factor	ATX
Basic Information
Supported CPU	Pentium Gold, Celeron, 12th Gen
Chipset	Intel Z690
Memory
Ram Type	DDR5

MSI MPG Z690 FORCE WIFI 12th Gen ATX Motherboard

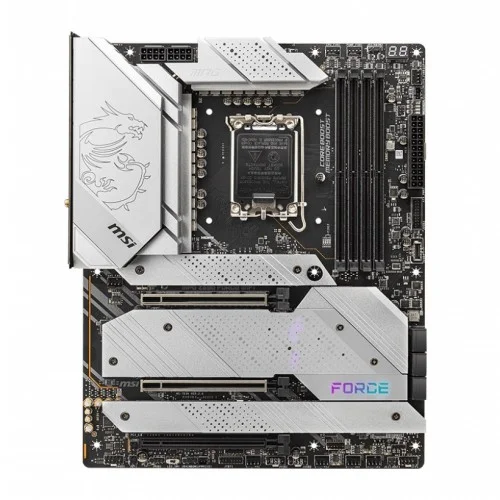

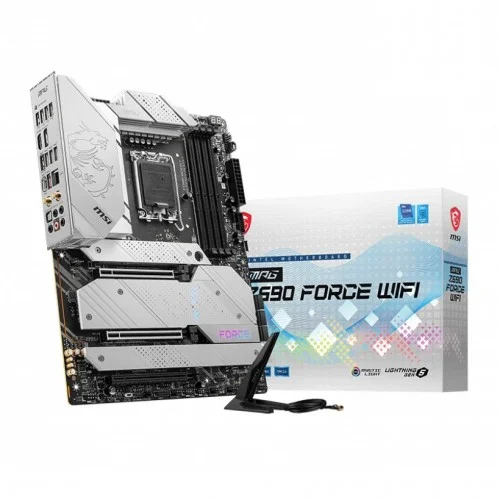

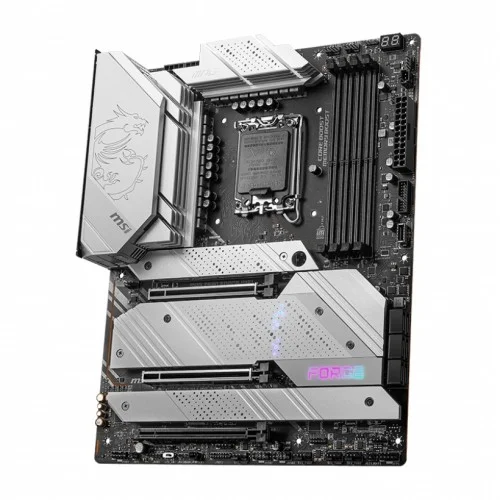

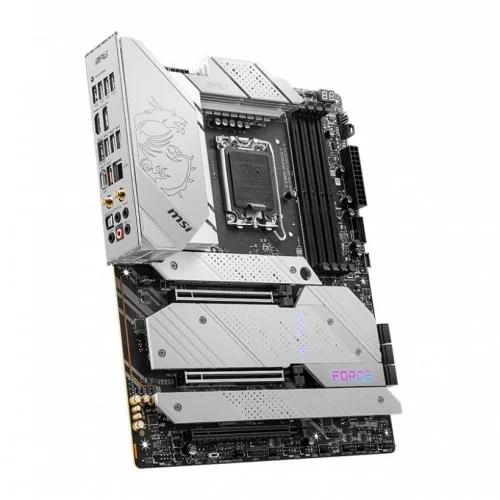

The MSI MPG Z690 FORCE WIFI Motherboard supports 12th Gen Intel Core/ Pentium Celeron processors for LGA 1700 socket. It supports DDR5 Memory, up to 6666+(OC) MHz. A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with a dedicated SMT welding process and MSI Memory Boost technology, MPG Z690 FORCE WIFI is ready to deliver world-class memory performance. It delivers a Lightning Fast Game experience with PCIe 5.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2. It comes with an Enhanced Power Design. Direct 18+1+1 phases power, dual 8-pin CPU power connectors, Core Boost, Memory Boost. It is equipped with an enlarged heatsink with heat pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads, and M.2 Shield Frozr are built for a high-performance system and non-stop gaming experience. 16.8 million colors / fancy lighting effects can be controlled in one click. MYSTIC LIGHT SYNC supports RGB, RAINBOW(ARGB), Corsair LED strips, and Ambient devices. The MSI MPG Z690 FORCE WIFI comes with a 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution. Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection. 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users. It has an 8-layer PCB made of 2oz thickened copper and server-grade level material. The MSI MPG Z690 FORCE WIFI comes with 3 years of warranty.

Specification

Basic Information
Supported CPU	Supports 12th Gen Intel Core, Pentium Gold and Celeron Processors Processor socket LGA1700
Chipset	Intel Z690 Chipset
Form Factor	ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Audio	7.1-Channel High Definition Audio Supports S/PDIF output
Expansion Slots
PCI	3x PCIe x16 slots PCI_E1 & PCI_E2 slots (From CPU) Support PCIe 5.0 Support x16/ x0, x8/ x8 PCI_E3 slot (From Z690 Chipset) Supports PCIe 3.0 x4
M.2 Socket	5x M.2 slots (Key M)
Memory
Type	DDR5
Slots	4 x DIMM
Supported Memory	Supports 1R 4800 MHz (by JEDEC & POR) Max. overclocking frequency: 1DPC 1R Max speed up to 6666+ MHz 1DPC 2R Max speed up to 5600+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Intel XMP 3.0 OC Supports Dual Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Maximum Memory	128GB
Graphics
Graphics	1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz
Connector & Ports
HDMI	1x HDMI 2.1
Display Port (s)	1x DisplayPort 1.4

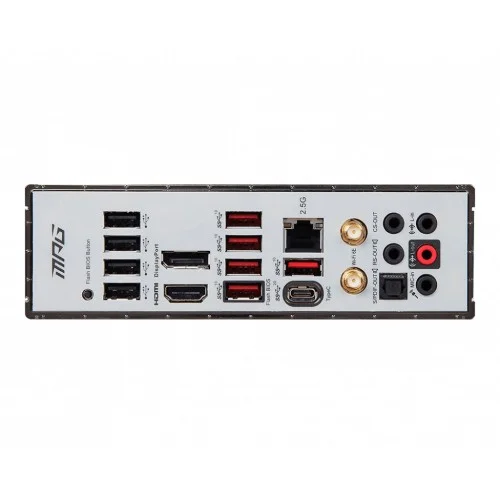

USB (s)	Intel Z690 Chipset 1x USB3.2 Gen2x2 20Gbps Type-C port on the back panel 6x USB 3.2 Gen 2 10Gbps ports (5 Type-A ports on the back panel, 1 Type-C available through the internal connector) 2x USB 3.2 Gen 1 5Gbps ports available through the internal connector 4 USB 2.0 ports on the back panel USB Hub-GL850G 4x USB 2.0 ports available through internal connectors
LAN Port (s)	1x Intel I225V 2.5Gbps LAN controller
Wireless Communication module	Intel Wi-Fi 6E module The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2, FIPS, FISMA
Supported Storage	4x SATA 6Gb/s ports - SATA5~8* (From Z690 Chipset) 2 x SATA 6Gb/s ports - SATAA & SATAB (From ASMedia ASM1061) 5x M.2 slots (Key M) M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2260/ 2280/ 22110 storage devices M2_2 slot (From Z690 Chipset) Supports PCIe 4.0 x4 Supports 2260/ 2280 storage devices M2_3 slot (From Z690 Chipset) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_4 slot (From Z690 Chipset) Supports PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_5 slot (From Z690 Chipset) Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2260/ 2280 storage devices M2_2~5 support Intel Optane Memory Supports Intel Smart Response Technology for Intel Core processors
Audio	1x Front panel audio connector
Internal I/O Ports	1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 5x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C connector 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x TBT connector (supports RTD3) 1x Tuning Controller connector
TPM (Trusted Platform Module )	1x TPM module connector
Warranty Information
Manufacturing Warranty	3 years
