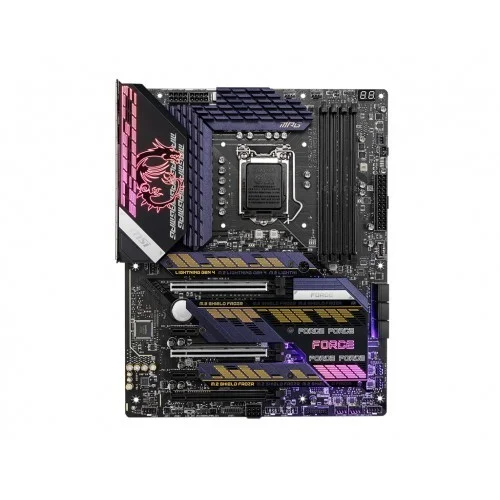

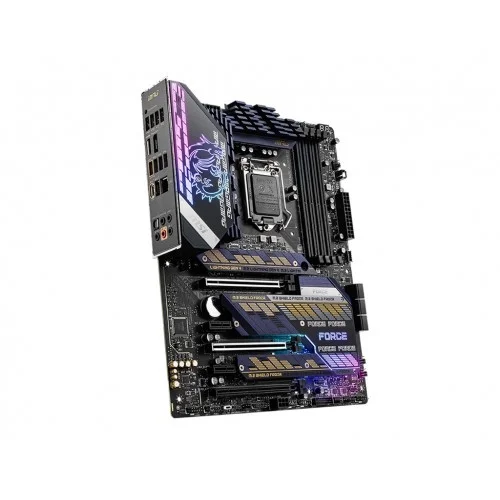

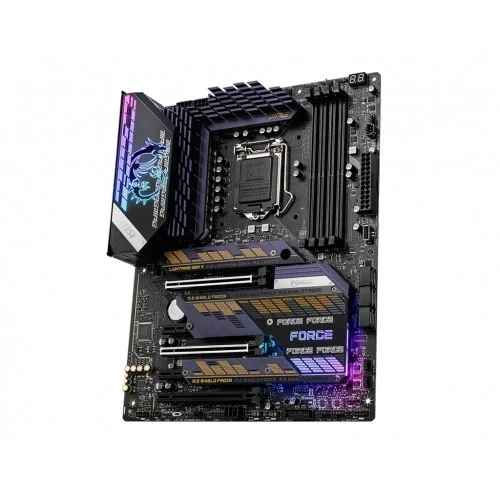

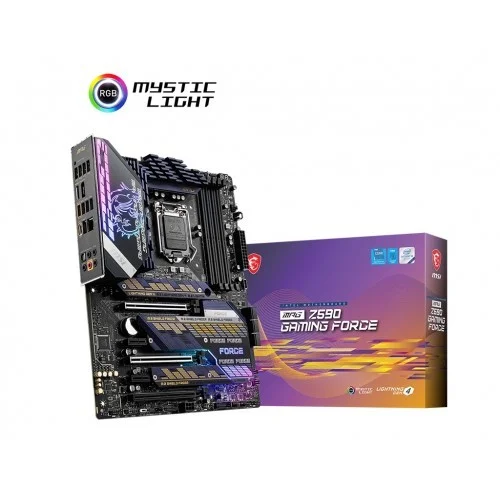

MSI MPG Z590 Gaming Force Intel 10th Gen and 11th Gen ATX Motherboard

Out Of Stock

MSI MPG Z590 Gaming Force Intel 10th Gen and 11th Gen ATX Motherboard

Stock: Out Of Stock
Model: MSI MPG Z590 Gaming Force
Product id: 19621

Based on 0 reviews. - Write a review

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে আমাদের হেল্পলাইন +8801612-266507 নম্বরে কল দিয়ে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

• Supports 11th and 10th Gen Intel Processors • LGA 1200 socket, MYSTIC LIGHT • DDR4 Memory, up to 5333(OC) MHz • 2.5G LAN with LAN Manager

Key Features
Form Factor	ATX
Basic Information
Supported CPU	10th Gen, Pentium Gold, Celeron, 11th Gen
Chipset	Intel Z590
Memory
Ram Type	DDR4

MSI MPG Z590 Gaming Force Intel 10th Gen and 11th Gen ATX Motherboard

MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Here, 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.MSI MPG Z590 Gaming Force Motherboard Supports 11th and 10th Gen Intel Core Pentium Celeron processors for LGA 1200 socket, DDR4 Memory, up to 5333(OC) MHz, PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2. This latest MSI MPG Z590 Gaming Force Intel 10th Gen and 11th Gen ATX Motherboard has 03 years warranty.

Specifications

Basic Information
Supported CPU	Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors Processor socket LGA1200
Chipset	Intel Z590 Chipset
Form Factor	ATX Form Factor
Audio	7.1-Channel High Definition Audio
Expansion Slots
PCI	3x PCIe x16 slots Support x16/x0/x4, x8/x8/x4, x8/x4+x4/x4 PCI_E1 & PCI_E3 slots (From CPU) Support PCIe 4.0 for 11th Gen Intel CPU Support PCIe 3.0 for 10th Gen Intel CPU PCI_E5 slot (From Z590 Chipset) Supports PCIe 3.0 2x PCIe 3.0 x1 slots (From Z590 Chipset)
M.2 Socket	3x M.2 slots (Key M)
Memory
Type	DDR4
Slots	4x DDR4 memory slots
Supported Memory	1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5333 MHz 1DPC 2R Max speed up to 4700+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Dual-Channel mode non-ECC, un-buffered memory Intel Extreme Memory Profile (XMP)
Maximum Mamory	up to 128GB
Graphics
Graphics	1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
Connector & Ports
USB (s)	1x USB3.2 Gen2x2 20Gbps port (Type-C port on the back panel) 4x USB 3.2 Gen 2 10Gbps ports (3 Type-A port on the back panel, 1 Type-C available through the internal connector) 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 Type-A ports available through the internal connector) Hub-GL850G 8x USB 2.0 ports (4 Type-A ports on the back panel, 4 Type-A ports available through internal connectors)
LAN Port (s)	1x Intel I225V 2.5Gbps LAN controller
Supported Storage	6x SATA 6Gb/s ports (From Z590 Chipset) 3x M.2 slots (Key M) M2_1 slot (From CPU) Available only on 11th Gen Intel CPU PCIe 4.0 x4 2242/ 2260/ 2280/ 22110 storage devices M2_21 & M2_32 slot (From Z590 Chipset) PCIe 3.0 x4 SATA 6Gb/s 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready Supports Intel Smart Response Technology for Intel Core processors
Audio	1x Front panel audio connector
Internal I/O Ports	1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 1x 6-pin PCIE power connector 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector Clear CMOS jumper 1x TPM module connector TBT connector (supports RTD3) 1x Tuning Controller connector
Warranty Information
Manufacturing Warranty	03 years warranty
