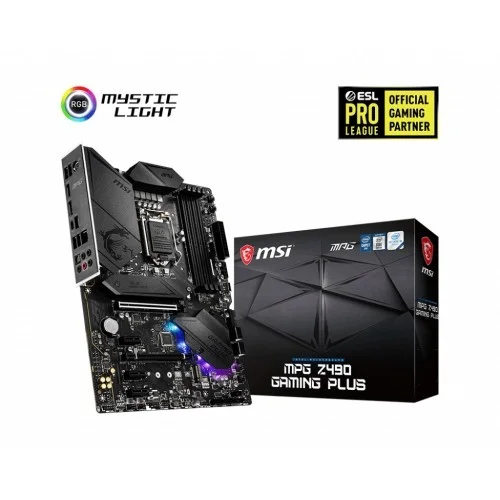

MSI MPG Z490 Gaming Plus ATX Motherboard

Out Of Stock

Stock: Out Of Stock
Model: Model-6276
Product id: 18069

Based on 0 reviews. - Write a review

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে আমাদের হেল্পলাইন +8801612-266507 নম্বরে কল দিয়ে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

• Supports 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket • Supports DDR4 Memory, up to 4800(OC) MHz • Support Lightning Gen 4 Solution • Enhanced Power Design, Premium Thermal Solution

MSI MPG Z490 Gaming Plus ATX Motherboard

The MSI MPG series motherboard brings out the best in gamers by allowing full expression in color with advanced RGB lighting control and synchronization. In this motherboard, the LED strip that provides convenient in-game and real time notifications. The MPG series, transform your equipment into the center of attention and top leaderboards in style. The MSI MPG Z490 Gaming Plus ATX Motherboard supports 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket, DDR4 Memory, up to 4800(OC) MHz, Lightning Gen 4 Solution for the future. This motherboard also comes with Enhanced Power Design 12+1+1 Duet Rail Power System, 8+4 pin CPU power connectors, Core Boost, DDR4 Boost. In this motherboard Premium Thermal Solution extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop gaming experience. In this motherboard, it has 2.5G LAN with LAN Manager that upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection. Here the Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs. It is also Powered by Intel USB 3.2 Gen 2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds. Here, The thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed with MSI motherboards. This motherboard also has 12 with CROSSFIRE features. This motherboard Support for Windows 10 64-bit. The MSI MPG Z490 Gaming Plus cpmes with 03 years warranty.

Specification:

Basic Information
Supported CPU	Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA1200 socket CPU (MAX SUPPORT): i9 SOCKET: 1200
Chipset	Intel Z490 Chipset
Form Factor	ATX Form Factor
Audio	7.1-Channel High Definition Audio 1x front panel audio connector HD Audio Connectors
Expansion Slots
PCI	1x PCIe 3.0 x16 slot (from CPU) 1x PCIe 3.0 x16 slot (from PCH， supports x4 mode) 3x PCIe x1 slots (from PCH)
M.2 Socket	2x M.2 slots (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
Memory
Type	DDR4
Slots	4 x DDR4 memory slots
Supported Memory	Supports 1R 2133/2666/2933 MHz : 1DPC 1R Max speed up to 4800+ MHz 1DPC 2R Max speed up to 4266+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Maximum Mamory	4 x DDR4 memory slots, support up to 128GB
Graphics
Graphics	1x HDMI port, supports a maximum resolution of 4096x2160 @ 30Hz 1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz
Connector & Ports
HDMI	1x HDMI port, supports a maximum resolution of 4096x2160 @ 30Hz
Display Port (s)	1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz
USB (s)	2x USB 3.2 Gen 2 10Gbps ports (1 Type-A port and 1 Type-C port on the back panel) 7x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 4 ports through the internal USB connectors, 1 Type-C internal connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
LAN Port (s)	1x Realtek RTL8125B-CG 2.5G LAN Controller
Audio	7.1-Channel High Definition Audio Supports S/PDIF output
Internal I/O Ports	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps Type-C port 2x USB 3.2 Gen 1 5Gbps connectors (support additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water pump connector 6x 4-pin system fan connectors 1x front panel audio connector 2x system panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x serial port connector 1x TPM module connector 1x TBT connector
Warranty Information
Manufacturing Warranty	03 years warranty
