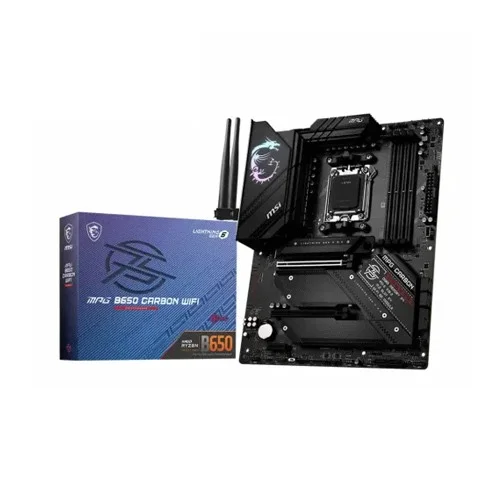

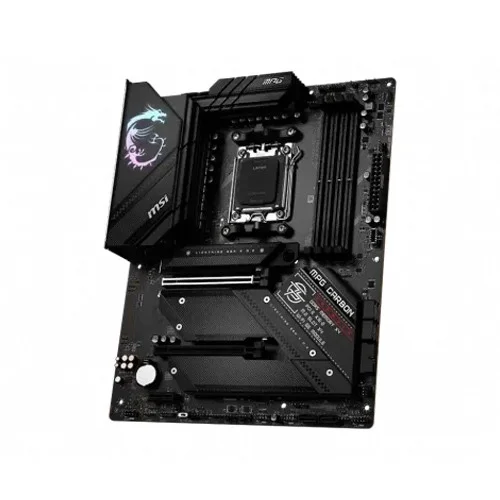

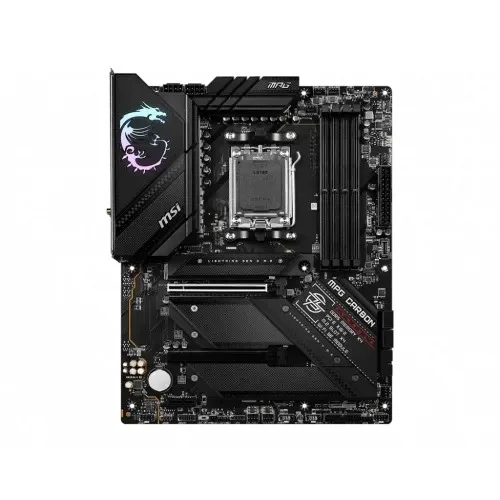

MSI MPG B650 CARBON WIFI DDR5 AMD AM5 ATX Motherboard

Up Coming

MSI MPG B650 CARBON WIFI DDR5 AMD AM5 ATX Motherboard

Stock: Up Coming
Model: MPG B650 CARBON WIFI
Product id: 28335

Based on 0 reviews. - Write a review

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে আমাদের হেল্পলাইন +8801612-266507 নম্বরে কল দিয়ে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

Supports AMD Ryzen 8000/7000 CPUs
DDR5 memory up to 6600+ MHz
PCIe Gen5 M.2 & Wi-Fi 6E
HDMI 2.1 & USB 3.2 Gen2x2

Basic Information
Supported CPU	Supports AMD Ryzen 8000 & 7000 Series Desktop Processors Socket AM5
Chipset	AMD B650
Form Factor	ATX 243.84mmx304.8mm
Audio	Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-Bit/384 kHz playback on front panel
Expansion Slots
PCI	2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 4.0 supports up to x4 (From CPU) PCI_E3 PCIe 3.0 supports up to x1 (From Chipset)
Memory
Type	DDR5
Slots	4 DIMMs
Supported Memory	Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max. speed up to 6600+ MHz • 1DPC 2R Max. speed up to 6000+ MHz • 2DPC 1R Max. speed up to 6400+ MHz • 2DPC 2R Max. speed up to 4000+ MHz Support Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO
Maximum Memory	128GB
Graphics
Graphics	1x HDMI 1x DisplayPort Support HDMI 2.1, maximum resolution of 4K 60Hz Supports DP1.4, maximum resolution of 4K 60Hz
Connector & Ports
HDMI	1x HDMI
Display Port (s)	1x DisplayPort

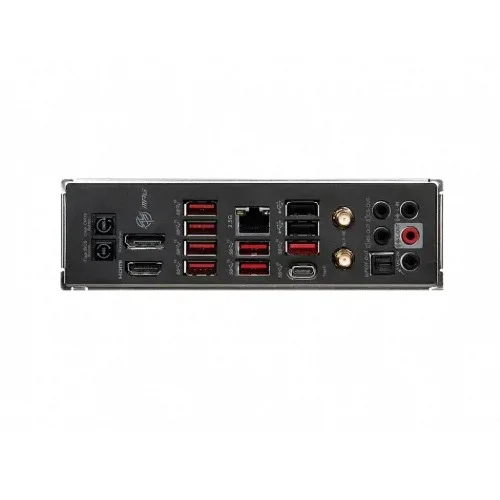

USB (s)	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 7x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s)	Realtek RTL8125 2.5Gbps LAN
Wireless Communication module	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2
Supported Storage	4x M.2 slot M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices 6x SATA 6G port
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
Audio	Audio Connectors
Internal I/O Ports	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C
Others
Special Features	4x EZ Debug LED 1x EZ LED Control switch
Warranty Information
Warranty	3 Years

MSI MPG B650 CARBON WIFI DDR5 AMD AM5 ATX Motherboard

Experience unmatched performance and cutting-edge connectivity with the MSI MPG B650 CARBON WIFI DDR5 AMD AM5 ATX Motherboard, designed for power users, gamers, and content creators. Built on the AMD B650 chipset and supporting the latest AMD Ryzen 8000 & 7000 Series Desktop Processors, this motherboard ensures blazing speed, future-proof compatibility, and rock-solid stability.With advanced DDR5 memory support up to 6600+ MHz (OC) and a maximum capacity of 128GB, multitasking and demanding applications become effortless. The board includes four M.2 slots, including one PCIe 5.0 x4, enabling ultra-fast storage speeds for quicker boot times and file transfers. Gamers will love the 2.5Gbps LAN and Wi-Fi 6E connectivity, which provide high-speed, low-latency networking for smooth online gameplay and streaming.For display, it supports both HDMI 2.1 and DisplayPort 1.4, capable of delivering crisp 4K visuals at 60Hz. Onboard Realtek ALC4080 audio codec offers a rich, immersive audio experience with up to 32-bit/384kHz playback.The motherboard also features multiple USB 3.2 Gen2 & Gen2x2 ports, integrated Bluetooth 5.2, and extensive internal headers including ARGB, system fans, and a TPM 2.0 header for security. Designed in a durable ATX form factor with MSI’s signature Carbon aesthetic, it’s built for style and endurance.If you're building a high-end gaming or productivity PC, the MSI MPG B650 CARBON WIFI DDR5 is a top-tier choice with premium features, future-ready connectivity, and industry-leading reliability—perfect for those seeking ultimate performance and seamless computing.

Features

Supports AMD Ryzen 8000 & 7000 Series CPUs for future-ready computing
Integrated Wi-Fi 6E and 2.5G LAN for ultra-fast network performance
PCIe Gen5 M.2 slot for lightning-fast storage speed
Supports DDR5 memory up to 6600+ MHz for extreme multitasking
Multiple USB 3.2 Gen2 & Gen2x2 Type-C for high-speed data transfer
Realtek ALC4080 7.1 HD Audio Codec with 32-bit/384kHz playback
HDMI 2.1 and DisplayPort 1.4 for 4K 60Hz ultra-clear visuals
Pre-installed Bluetooth 5.2 for seamless wireless device support
ATX form factor with stylish Carbon finish for modern builds
Full RAID support for both SATA and M.2 NVMe storage devices
