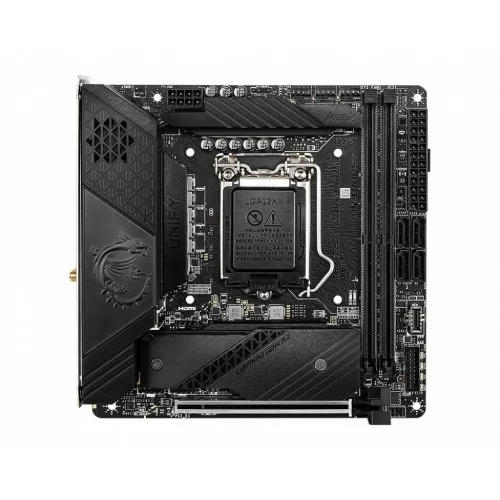

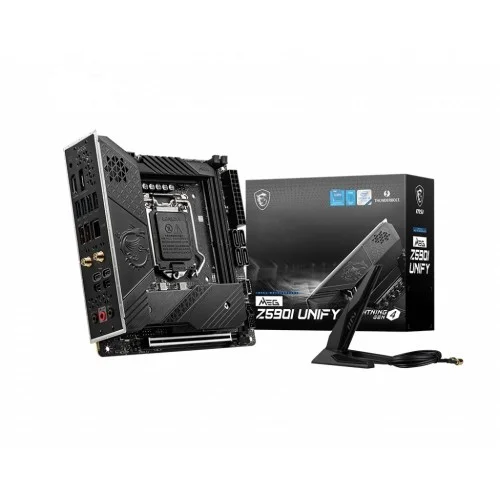

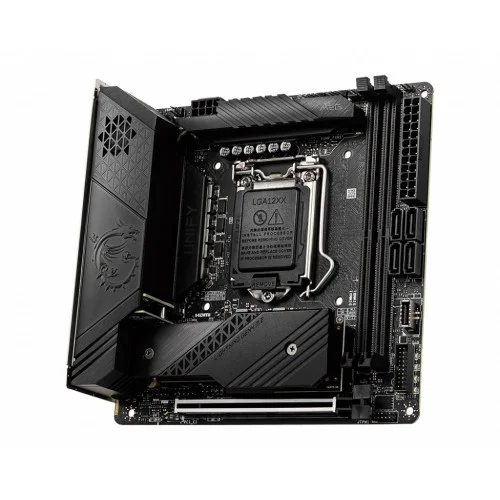

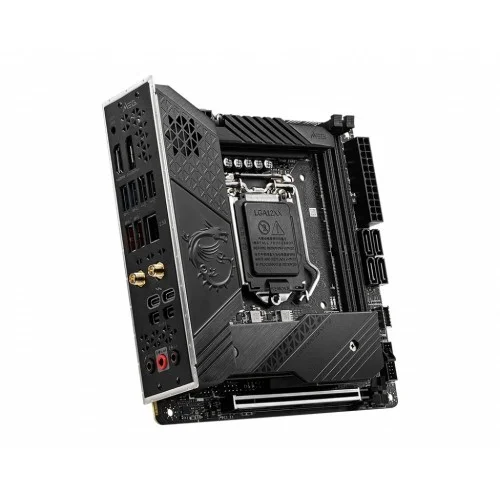

MSI MEG Z590I Unify Gaming 10th Gen and 11th Gen Mini-ITX Motherboard

2-3 Days

MSI MEG Z590I Unify Gaming 10th Gen and 11th Gen Mini-ITX Motherboard

Stock: 2-3 Days
Model: MSI MEG Z590I Unify Gaming
Product id: 19624

Based on 0 reviews. - Write a review

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে আমাদের হেল্পলাইন +8801612-266507 নম্বরে কল দিয়ে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

• Supports 11th and 10th Gen Intel Core Processors • DDR4 Memory, up to 5600(OC) MHz • Dual Thunderbolt 4 ports, LGA1200 socket • 2.5G LAN with latest Wi-Fi 6E

MSI MEG Z590I Unify Gaming 10th Gen and 11th Gen Mini-ITX Motherboard

The new MSI MEG Z590I Unify Gaming motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed, Utilizing 11th Gen Intel processors. The2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users. MSI MEG Z590I Unify Gaming Motherboard Supports 11th and 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket, DDR4 Memory, up to 5600(OC) MHz. This Motherboard has Dual Thunderbolt 4 ports, that Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience. It comes with Extreme Power Design, that INTERSIL digital PWM, direct 8 phases with 90A Smart Power Stage and Titanium Choke III unleash the true power of your processors.

The latest MSI MEG Z590I Unify Gaming 10th Gen and 11th Gen Mini-ITX Motherboard has 03 years warranty.

Specifications:

Basic Information
Supported CPU	Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron processors Processor socket LGA1200
Chipset	Intel Z590 Chipset
Form Factor	Mini-ITX Form Factor
Audio	7.1-Channel High Definition Audio
Expansion Slots
PCI	1x PCIe x16 slot Support up to PCIe 4.0 for 11th Gen Intel CPU Support up to PCIe 3.0 for 11th Gen Intel CPU
M.2 Socket	2x M.2 slots (Key M)
Memory
Type	DDR4
Slots	2x DDR4 memory slots
Supported Memory	1R 2133/2666/2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5600 MHz 1DPC 2R Max speed up to 4800+ MHz Dual-Channel mode non-ECC, un-buffered memory Intel® Extreme Memory Profile [XMP]
Maximum Mamory	support up to 64GB
Graphics
Graphics	1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
Connector & Ports
USB (s)	3x USB 3.2 Gen 2 10Gbps ports (2 Type-A port on the back panel, 1 Type-C internal connector) 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connectors) 4x USB 2.0 ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connectors)
LAN Port (s)	1x Inte I225-V 2.5Gbps LAN controller
Supported Storage	4x SATA 6Gb/s ports (from Z590 chipset) 2x M.2 slots (Key M) M2_1 slot up to PCIe 4.0 x4 for 11th Gen Intel® CPU (From CPU) up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel® CPU (From Z590 chipset) 2280 storage devices M2_2 slot (from Z590 chipset) PCIe 3.0 x4 only 2280 storage devices Intel Optane Memory Ready Supports Intel Smart Response Technology for Intel Core processors
Audio	1x Front panel audio connector
Internal I/O Ports	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots [M-Key] 1x USB 3.2 Gen2 10Gbps Type-C port USB 3.2 Gen1 5Gbps connector [supports additional 2 USB 3.2 Gen1 5Gbps ports] 1x USB 2.0 connector [supports additional 2 USB 2.0 ports] 4-pin CPU fan connector 1x 4-pin water-pump fan connector 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1xTPM module connector
Warranty Information
Manufacturing Warranty	03 years warranty
