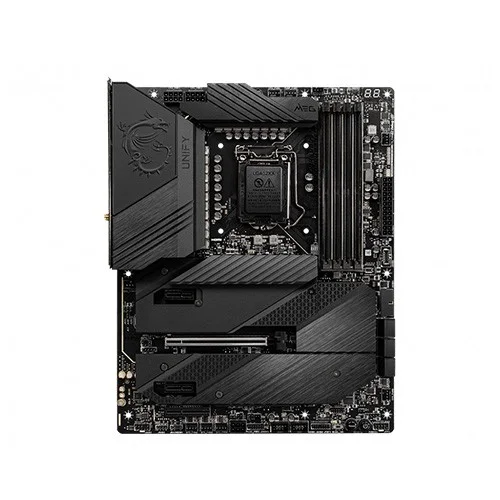

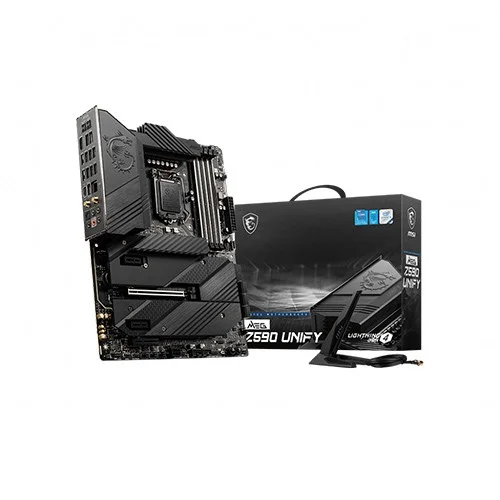

MSI MEG Z590 UNIFY 10th Gen And 11th Gen ATX WIFI Motherboard

MSI MEG Z590 UNIFY 10th Gen And 11th Gen ATX WIFI Motherboard

Supports Intel Core / Pentium Celeron processors of the 11th and 10th generation for LGA 1200 socket. Supports DDR4 memory, up to 5600 (OC) MHz.The MSI MEG Z590 UNIFY LGA 1200 ATX motherboard is based on the Intel Z590 chipset and supports Intel Core and Pentium Gold / Celeron processors of the 11th generation with an LGA 1200 socket. MSI MEG Z590 UNIFY motherboard has four memory slots for up to 128 GB DDR4 RAM can be overclocked up to 4800 MHz.MSI MEG Z590 UNIFY Motherboard is equipped with six SATA III ports and Four M.2 slots for storage. There are three PCIe 3.0 x16 slots for graphics cards and two PCIe 3.0 x1 slots for other PCI-based hardware. Other integrated functions are Realtek I225V 2.5 GbE, Intel I225V Gigabit Ethernet, Intel AX210 Wi-Fi 6, Bluetooth 5.0, and Realtek ALC4082 7.Audio HD de 1 channel.

Dual Thunderbolt 4 ports

MSI MEG Z590 UNIFY Motherboard Thunderbolt USB-C at real 40 Gbit / s speeds, 8K display support, daisy-chaining, and multi-port accessory architecture provide reliable connectivity and a better user experience.

Quad M.2 ports

MSI MEG Z590 UNIFY Motherboard 4 built-in M.2 ports for maximum storage performance with a Lightning Gen 4 solution. The Shield Frozr design holds M.2 SSDs securely and without throttling so they run faster.

Extreme performance design

INTERSIL Digital PWM, 16 + 2 + 1 phase with 90 A Smart Power Stage, two CPU power connections, and a unique mirror power supply to unleash the true power of your processors. MSI MEG Z590 UNIFY Motherboard Aluminum cover, VRM heat pipe, 7W / mK heating pad, M.2 Shield Frozr, and the aluminum backplate ensure extremely low temperatures. MSI MEG Z590 UNIFY Motherboard One key with multiple hardware controls. Reset computer control functions, safe start, turbofan, and EZ-LED with just one click 8-layer circuit board with 2 oz.

Audio Boost

The MSI MEG Z590 UNIFY Motherboard ultimate audio solution with the latest premium audio processor ALC4082, combining ESS audio DAC and amplifier, offers an immersive experience.

Wi-Fi 6 (802.11ax)

Wi-Fi 6 (802.11ax) is the next-gen Wi-Fi standard, improving a variety of features including data rates, capacity, performance in dense environments, and power efficiency.

Specifications:

Supported CPU	Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors1 Processor socket LGA1200
Chipset	Intel Z590 Chipset
Memory	4x DDR4 memory slots, support up to 128GB1 Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)1 Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)1 Max overclocking frequency: 1DPC 1R Max speed up to 5600 MHz 1DPC 2R Max speed up to 4800+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC mode, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Graphics	HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
Multi-GPU Support	Supports 2-Way AMD CrossFire Technology
Slots	1x PCIe x16 slot (PCI_E2, from CPU) Supports up to PCIe 4.0 x16 with11th Gen CPU1 Supports up to PCIe 3.0 x16 with10th Gen CPU1 1x PCIe 3.0 x4 slot (PCI_E4, from Z590 chipset)2 2x PCIe 3.0 x1 slots (from Z590 chipset)
Supported Storage	6x SATA 6Gb/s ports (from Z590 chipset) 4x M.2 slots (Key M) M2_1 (from CPU) Available only on 11th Gen Intel CPU Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_21, M2_32 slots Support up to PCIe 3.0 x4 and SATA 6Gb/s (from Z590 chipset, default)3 Support up to PCIe 4.0 x4 (from CPU, by BIOS selection)4 M2_2 supports 2242/ 2260/ 2280 storage devices M2_3 supports 2242/ 2260/ 2280/ 22110 storage devices M2_4 slot (from Z590 chipset) 3 5 Supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices Supports Intel Smart Response Technology for Intel Core processors SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.SATA5 & SATA6 will be unavailable when installing M.2 SATA/ PCIe SSD in the M2_3 slot.Intel Optane Memory Ready. Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.PCIe 4.0 specification is available only on 11th Gen Intel CPU
LAN	Intel I225-V 2.5Gbps LAN controller
Audio	Realtek ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
USB Port	Intel Z590 Chipset 1x USB 3.2 Gen 2×2 20Gbps Type-C port on the back panel 2x USB 3.2 Gen 2 10Gbps ports (1 Type-A port on the back panel and 1 Type-C internal connector) 10x USB 3.2 Gen 1 5Gbps ports (8 Type-A ports on the back panel, 2 ports are available through internal USB 3.2 Gen 1 connector) 2x USB 2.0 ports on the back panel Hub-GL850G 4x USB 2.0 ports through internal USB 2.0 connector
Internal I/O Ports	1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 1x 6-pin ATX PCIE power connector 6x SATA 6Gb/s connectors 4x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 2-pin Thermal Sensors connector 1xTPM module connector 1x Tuning Controller connector 1x TBT connector (Supports RTD3)

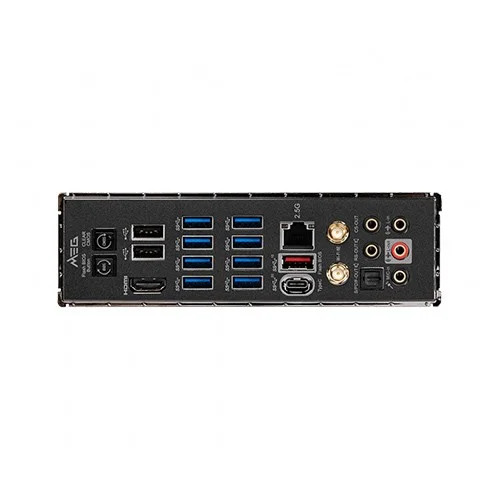

External I/O Ports	Clear CMOS Button USB 2.0 USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 1 5Gbps (Type-A) 2.5G LAN Wi-Fi / Bluetooth HD Audio Connectors Flash BIOS Button HDMI USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2×2 20Gbps (Type-C) Optical S/PDIF-Out
WiFi	Intel WiFi 6E AX210 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz1 (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.22, FIPS, FISMA
Form Factor	ATX Form Factor
Warranty	03 Years
