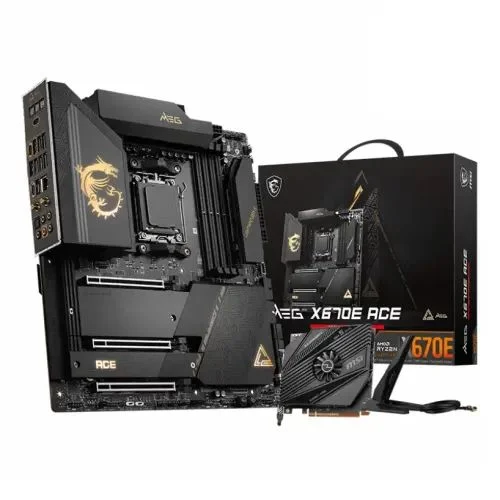

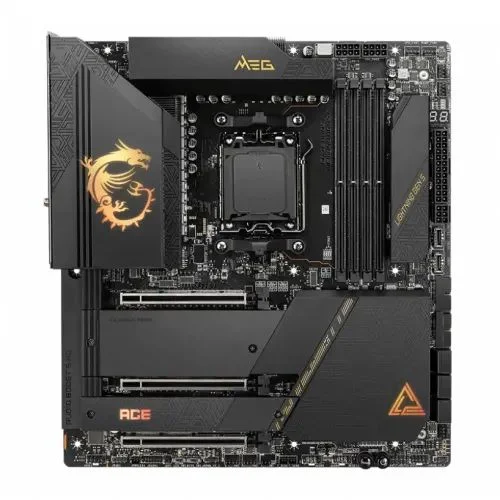

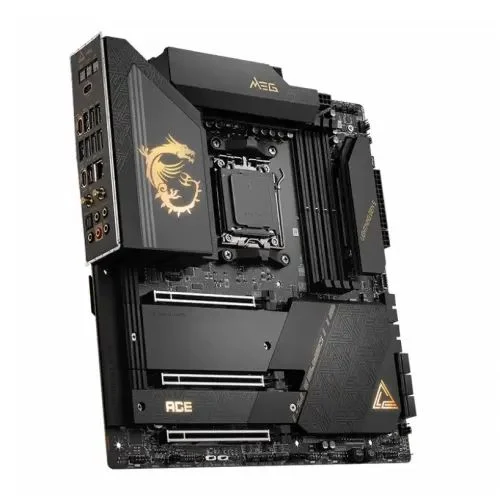

MSI MEG X670E ACE DDR5 AMD AM5 E-ATX Motherboard

2-3 Days

MSI MEG X670E ACE DDR5 AMD AM5 E-ATX Motherboard

Stock: 2-3 Days
Model: MEG X670E ACE
Product id: 24015

Based on 0 reviews. - Write a review

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে আমাদের হেল্পলাইন +8801612-266507 নম্বরে কল দিয়ে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

- Supported CPU: Ryzen 7000 Series Processors for Socket AM5
- Supported RAM: 4x DDR5, Max 128GB
- Graphics Output: 1x Type-C Display port
- : 10G Super LAN with Wi-Fi 6E solution

Key Features
Form Factor	E-ATX
Basic Information
Supported CPU	Ryzen 7000, Ryzen 7000 G
Chipset	AMD X670
General Information
Special Features	RGB, PCIe Gen5 (Graphics), USB 3.2, Dual Channel DDR5, Wi-Fi 6E, Bluetooth 5.2, 10GHz LAN
Memory
Ram Type	DDR5

Specification

Basic Information
Supported CPU	Supports AMD Ryzen 7000 Series Desktop Processors Socket AM5
Chipset	AMD X670
Form Factor	E-ATX 277mmx304.8mm
Audio	Realtek ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA 7.1-Channel High Definition Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel
Expansion Slots
PCI	3x PCI-E x16 slot Supports x16/x0/x4, x8/x8/x4 PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 5.0 supports up to x8 (From CPU) PCI_E3 PCIe 5.0 supports up to x4 (From CPU)
Memory
Type	DDR5
Slots	4 DIMMs
Supported Memory	Dual Channel DDR5
Maximum Memory	128GB
Graphics
Graphics	1x Type-C Display port Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz
Connector & Ports
USB (s)	4x USB 2.0 ports (Front) 4x USB 3.2 Gen1 Type A ports (Front) 8x USB 3.2 Gen2 Type A ports (Rear) 1x USB 3.2 Gen2 Type C ports (Rear) 1x USB 3.2 Gen2 Type C ports (Front) 2x USB 3.2 Gen2x2 Type C ports (Rear) 1x USB 3.2 Gen2x2 Type C ports (Front)
LAN Port (s)	Marvell AQC113-B1-C 10Gbps LAN
Wireless Communication module	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2
Supported Storage	4x M.2 slot M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices 6x SATA 6G port
RAID	Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
Internal I/O Ports	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Slow Mode Booting Jumper(JSLOW) 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports 1x USB 3.2 Gen 2x2 Type-C ports 1x USB 3.2 Gen 2x2 Type C ports V-check point
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
Warranty Information
Manufacturing Warranty	3 Years

MSI MEG X670E ACE DDR5 AMD AM5 E-ATX Motherboard

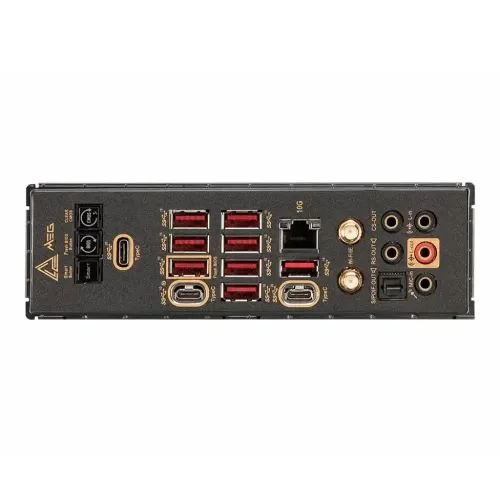

The MSI MEG X670E ACE offers onboard and exclusive M.2 XPANDER-Z GEN5 DUAL PCI-Express card offer totally sextuple M.2 connectors for maximum storage performance. It can deliver a lightning-fast game experience with PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Front USB 3.2 Gen 2x2 20G with 60W USB Power Delivery. The double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster. The rear I/O panel now offers easy ways of directly entering the safe boot, a one-click toggle for all RGB lights, and directly activating Turbo mode. The MSI MEG X670E ACE Motherboard offers 2x PCIe Gen 5 x16 slots and 4x M.2 slots. The MEG series offers a stacked fin array heatsink and a heatpipe along with a MOSFET baseplate for effective heat dissipation from the VRMs. The MSI MEG X670E ACE comes with 3 years of warranty. For optimal storage performance, the MSI MEG X670E ACE provides an exclusive M.2 XPANDER-Z GEN5 DUAL PCI-Express card that is built into the motherboard. With PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Front USB 3.2 Gen 2x2 20G, and 60W USB Power Delivery, it can provide a lightning-fast gaming experience. The double-sided Shield Frozr architecture makes M.2 SSDs quicker while keeping them safe and reducing throttling. The rear I/O panel now provides quick access to Turbo mode, a one-click toggle for all RGB lights, and direct safe boot entry. Two PCIe Gen 5 x16 slots and four M.2 slots are available on the MSI MEG X670E ACE Motherboard. For efficient heat dissipation from the VRMs, the MEG series includes a MOSFET baseplate, a heatpipe, and a stacked fin array heatsink. Three years of warranty are included with the MSI MEG X670E ACE.
