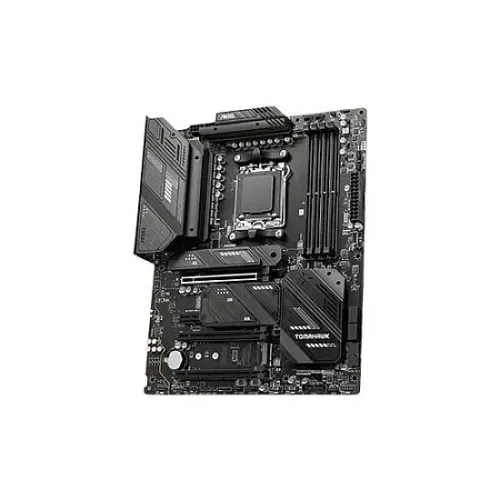

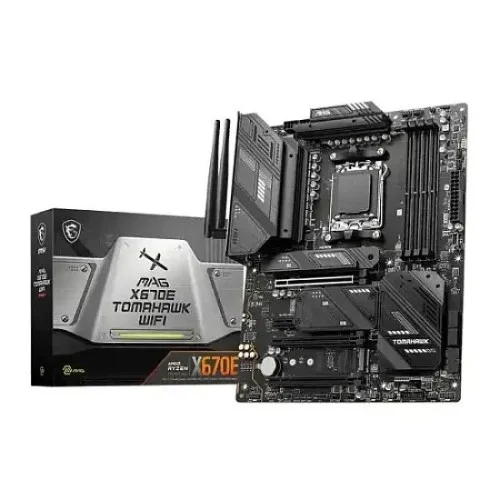

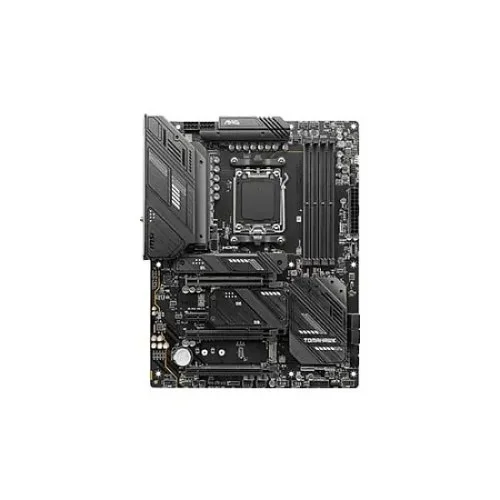

MSI MAG X670E TOMAHAWK WIFI AMD AM5 ATX Motherboard

MSI MAG X670E TOMAHAWK WIFI AMD AM5 ATX Motherboard

MSI MAG X670E TOMAHAWK WIFI AMD AM5 ATX motherboard is designed to support AMD's Ryzen 8000 and 7000 series desktop processors, making it a powerful and future-proof choice for enthusiasts and gamers. Built around the AMD X670 chipset and featuring a socket AM5, this motherboard offers a robust platform for high-performance computing. In terms of form factor, the MAG X670E TOMAHAWK adheres to the ATX standard, measuring 243.84mm by 304.8mm. This ensures compatibility with a wide range of cases and provides ample space for various components and cooling solutions. The motherboard's audio capabilities are handled by the Realtek ALC1200 codec, supporting 7.1-channel high-definition audio and S/PDIF output, ensuring rich and immersive sound quality for both gaming and multimedia applications. The expansion slots on this motherboard are designed to accommodate a variety of configurations. It includes three PCI-E x16 slots, supporting x16, x4, and x2 configurations, and one PCI-E x1 slot. Specifically, the PCI_E1 slot is a Gen PCIe 5.0 supporting up to x16 speeds (sourced from the CPU), while the PCI_E2 slot is a Gen PCIe 3.0 supporting up to x1 speeds (from the chipset). Additionally, the PCI_E3 and PCI_E4 slots support PCIe 4.0, with x4 and x2 speeds respectively, sourced from both the CPU and chipset. For memory, the MAG X670E TOMAHAWK supports DDR5 RAM with four DIMM slots, allowing for dual-channel configurations and a maximum capacity of 192GB. It supports various overclocked speeds, with maximum frequencies reaching up to 6000+ MHz depending on the configuration. This makes it an excellent choice for users looking to maximize their system's performance with high-speed memory. Graphics output options include one HDMI 2.1 port, supporting up to 4K resolution at 120Hz, one DisplayPort 1.4 supporting up to 4K at 60Hz, and one Type-C DisplayPort with HBR3, supporting up to 4K at 120Hz. This variety ensures compatibility with modern monitors and high-resolution displays, catering to both gamers and content creators. Connectivity is another strong point of this motherboard. It features an array of USB ports, including four USB 2.0 ports (front), four USB 3.2 Gen1 Type A ports (rear), four USB 3.2 Gen1 Type A ports (front), two USB 3.2 Gen2 Type A ports (rear), and multiple USB Type-C ports. The network connectivity is handled by a Realtek RTL8125BG 2.5Gbps LAN port and an AMD Wi-Fi 6E module, which also supports Bluetooth 5.3. For storage, the motherboard offers four M.2 slots and four SATA 6G ports, supporting various RAID configurations for both SATA and NVMe storage devices. Internal I/O ports are abundant, including power connectors, fan headers, RGB LED connectors, and multiple USB headers, ensuring extensive expandability and customization options. Special features include four EZ Debug LEDs, providing quick and easy troubleshooting for system issues. Overall, the MSI MAG X670E TOMAHAWK WIFI AMD AM5 ATX motherboard is a versatile and high-performance option, well-suited for building a cutting-edge PC.
