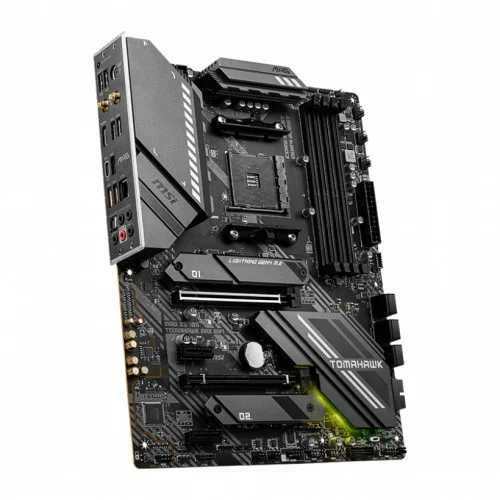

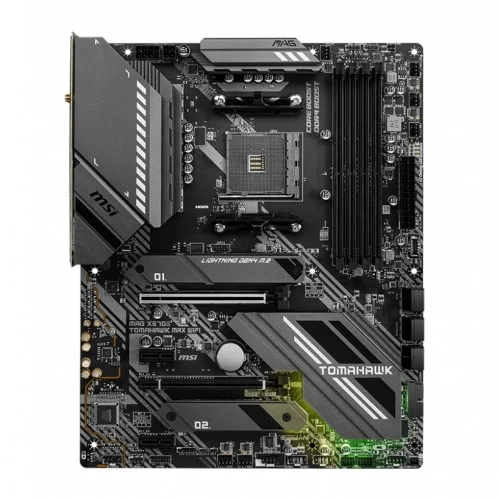

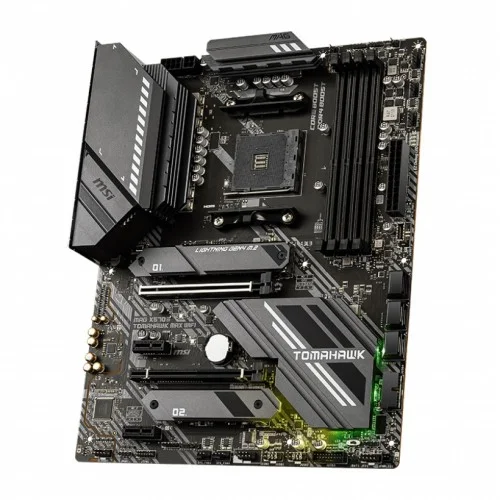

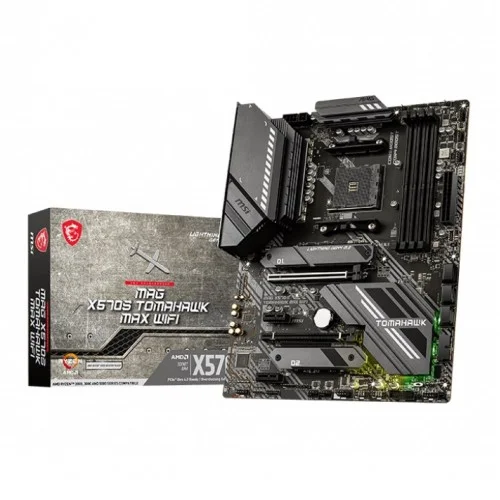

MSI MAG X570S TOMAHAWK MAX WIFI AMD AM4 ATX Motherboard

Out Of Stock

MSI MAG X570S TOMAHAWK MAX WIFI AMD AM4 ATX Motherboard

Stock: Out Of Stock
Model: MAG X570S TOMAHAWK MAX WIFI
Product id: 21771

Based on 0 reviews. - Write a review

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে আমাদের হেল্পলাইন +8801612-266507 নম্বরে কল দিয়ে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

• Supports Ryzen 5000, 5000 G, 4000 G, 3000, 3000 G, 2000 & 2000 G-Series processors • Supports DDR4 Memory, up to 5100(OC) MHz • 2.5G LAN and Intel Wi-Fi 6E Solution • Supports 2-Way AMD Crossfire

Key Features
Form Factor	ATX
Basic Information
Supported CPU	Ryzen 5000, Ryzen 5000 G, Ryzen 4000 G, Ryzen 3000, Ryzen 2000, Ryzen 3000 G, Ryzen 2000 G
Chipset	AMD X570
Memory
Ram Type	DDR4

MSI MAG X570S TOMAHAWK MAX WIFI AMD AM4 ATX Motherboard

The MSI MAG X570S TOMAHAWK MAX WIFI Motherboard supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, and 2000 G-Series desktop processors. It supports DDR4 Memory, up to 5100(OC) MHz. It features Premium Thermal Solution. Extended Heatsink Design and M.2 Shield Frozr are built for high-performance systems and non-stop works. It is equipped with 2.5G LAN and Intel Wi-Fi 6E Solution. Upgraded network solution for professional and multimedia use. Delivers a secure, stable, and fast network connection. Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs. Reward your ears with the studio-grade sound quality for the most immersive gaming experience with AUDIO BOOST 5. It comes with ith Steel armor PCIe slots. It also supports 2-Way AMD Crossfire. The MSI MAG X570S TOMAHAWK MAX WIFI comes with 3 years of warranty.

Specification

Basic Information
Supported CPU	Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors Supports Socket AM4
Chipset	AMD X570 Chipset
Form Factor	ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Audio	Realtek ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Expansion Slots
PCI	Supports PCIe 4.0 / PCIe 3.0 specification PCIe 4.0 is available only on AMD Ryzen 5000 Series and 3000 Series desktop processors 1x PCIe x16 slot (From processor) PCI_E1 supports PCIe 4.0/ 3.0 x16 1x PCIe x16 slot (From X570 chipset) PCI_E3 supports PCIe 4.0/ 3.0 x4 2x PCIe 3.0 x1 slots (From X570 chipset)
Memory
Type	DDR4
Slots	4 x DDR4 memory slots
Supported Memory	Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC1 Max overclocking frequency by A-XMP OC mode: For Ryzen 5000 G-Series & 4000 G-Series processors 1DPC 1R Max speed up to 5100 MHz 1DPC 2R Max speed up to 4000 MHz 2DPC 1R Max speed up to 4266 MHz 2DPC 2R Max speed up to 3600 MHz For Ryzen 5000 Series & 3000 Series processors 1DPC 1R Max speed up to 5100 MHz 1DPC 2R Max speed up to 3866 MHz 2DPC 1R Max speed up to 4000 MHz 2DPC 2R Max speed up to 3600 MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory
Maximum Memory	Up to 128GB
Graphics
Graphics	1x HDMI 2.1 port, supports a maximum resolution of 4K 60Hz Supports AMD CrossFire Technology
Connector & Ports
HDMI	1 x HDMI 2.1

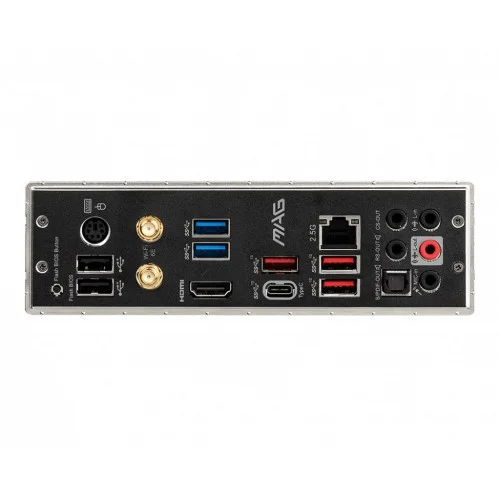

USB (s)	AMD X570 Chipset 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel, 1 Type-C internal connector) 4x USB 3.2 Gen 1 5Gbps ports available through the internal USB 3.2 Gen 1 5Gbps connectors 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD Processor 2x USB 3.2 Gen 2 10Gbps ports on the back panel (Type-A & Type-C) 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
LAN Port (s)	1x Realtek 8125B 2.5Gbps LAN Controller
Wireless Communication module	Intel® Wi-Fi 6E AX210 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2, FIPS, FISMA
Supported Storage	6x SATA 6Gb/s ports (from AMD X570 Chipset) 2x M.2 slots (Key M) Support up to PCIe 4.0 for AMD Ryzen 5000 Series and 3000 Series desktop processors Support up to PCIe 3.0 for AMD Ryzen 5000 G-Series, 4000 G-Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processor Supports up to SATA 6Gb/s M2_1 slot (from Processor) Support 2280/22110 storage devices M2_2 slot (from AMD X570 Chipset) Supports 2242/ 2260/ 2280 storage devices
Internal I/O Ports	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x 4-pin CPU fan connector 1x 4-pin water-pump connector 4x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Serial port connector 1x Chassis Intrusion connector
TPM (Trusted Platform Module )	1x TPM module connector
Warranty Information
Manufacturing Warranty	3 Years
