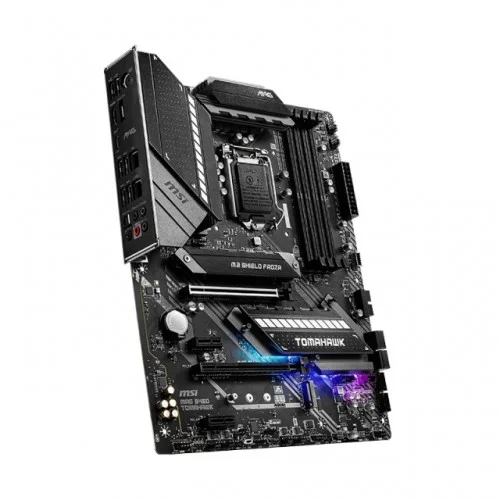

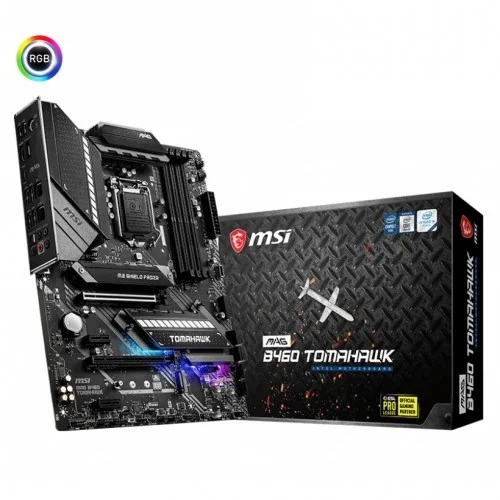

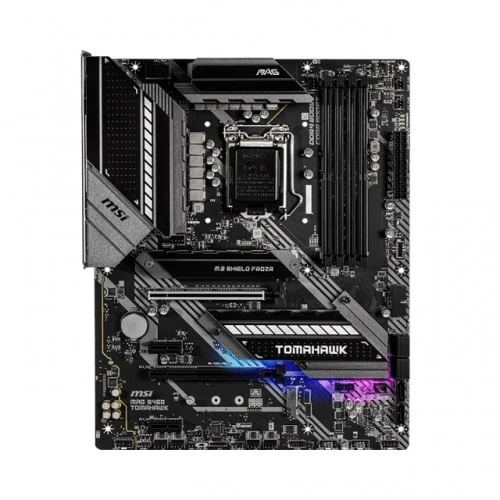

MSI MAG Intel B460 Tomahawk 10th Gen ATX Motherboard

MSI MAG Intel B460 Tomahawk 10th Gen ATX Motherboard

The MSI MAG Intel B460 Tomahawk 10th Gen ATX Motherboard was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry-level gamers. With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPU to run at full speed with MSI motherboards. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill, and many more to optimize memory modules, configurations, and even improve overclocking. MAG B460 TOMAHAWK features high-bandwidth and low-latency 2.5G plus Gigabit LAN for power users. Onboard 2.5Gbps connectivity provides incredible data transfer speed faster than ever before. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency.

Specification:

Basic Information
Supported CPU	Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA1200 socket
Chipset	Intel B460 Chipset
BIOS	1x 128 Mb flash UEFI AMI BIOS ACPI 6.2, SM BIOS 3.2 ∙Multi-language
Form Factor	ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Expansion Slots
PCI	1x PCIe 3.0 x16 slot (From CPU, PCI_E1), supports x16 mode 1x PCIe 3.0 x16 slot (From PCH, PCI_E3), supports x4 mode 2x PCIe 3.0 x1 slots (From PCH)
M.2 Socket	M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
Memory
Type	Dual channel memory architecture
Slots	4 x DDR4 memory slots
Supported Memory	Intel Core i7/i9: Supports up to DDR4 2933 MHz Intel Core i5 (Below): Supports up to DDR4 2666 MHz
Maximum Mamory	128GB
Graphics
Graphics	1x HDMI port, supports a maximum resolution of 4096x2160 @30Hz 1x DisplayPort, supports a maximum resolution of 4096x2304 @60Hz
Connector & Ports
HDMI	1 x HDMI port (4096x2160 @30Hz)
Display Port (s)	1 x DisplayPort port (4096x2304 @60Hz)

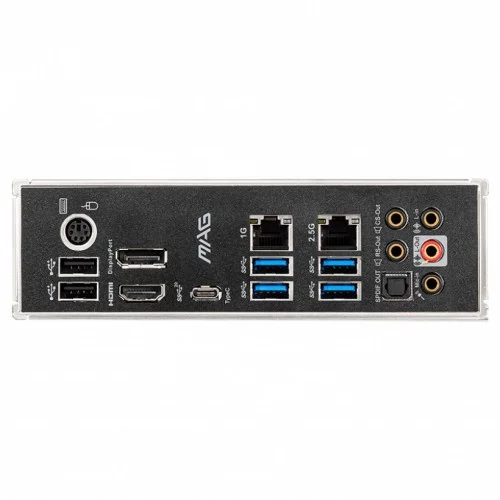

USB (s)	Intel B460 Chipset: 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal USB 3.2 Gen 1 connector) 1x USB 3.2 Gen 1 5Gbps port (1 Type-C internal connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) ASMedia ASM3241 Chipset: 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel
LAN Port (s)	1x Realtek RTL8125B 2.5Gbps LAN controller 1x Intel I219V 1Gbps LAN controller
Supported Storage	Intel B460 Chipset 6x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready Supports Intel Smart Response Technology for Intel Core processors
Audio	Realtek ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Internal I/O Ports	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 2x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1xTPM module connector 1x Clear CMOS jumper
Warranty Information
Manufacturing Warranty	03 years
