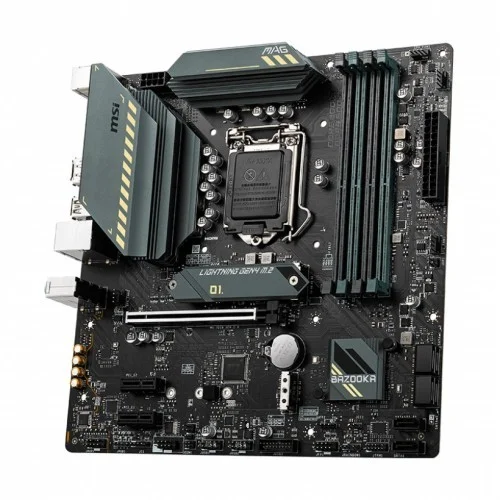

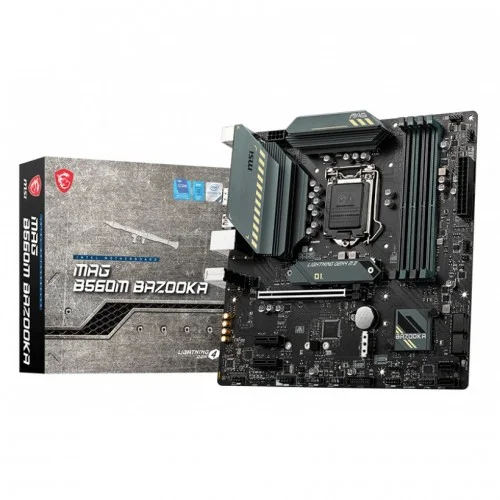

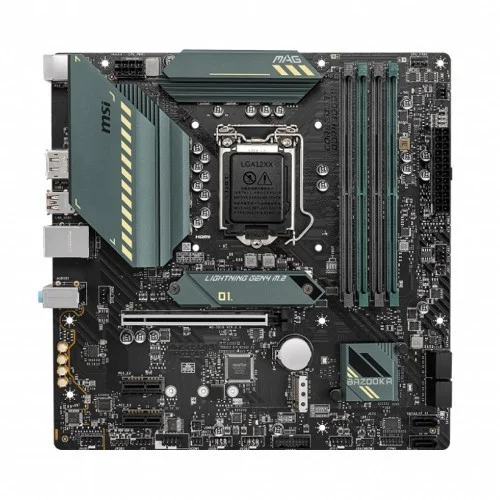

MSI MAG B560M BAZOOKA 10th and 11th Gen Micro ATX Motherboard

-100 % Out Of Stock

MSI MAG B560M BAZOOKA 10th and 11th Gen Micro ATX Motherboard

Stock: Out Of Stock
Model: MSI MAG B560M BAZOOKA
Product id: 20274

Based on 0 reviews. - Write a review

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Add to Compare

• Supports 10th & 11th Gen Intel processors for LGA 1200 socket • Supports DDR4 Memory, up to 5066(OC) MHz • Extended Heatsink Design & M.2 Shield Frozr • Supports 2-Way AMD Crossfire

যেকোনো অনাকাঙ্ক্ষিত ঝামেলা এড়াতে, অনলাইনে অর্ডার করার আগে আমাদের হেল্পলাইনে (+8801612-266507) কল করে পণ্যের স্টক এবং ডেলিভারি সম্পর্কে জেনে নেওয়ার জন্য বিনীত অনুরোধ করা হচ্ছে।

Key Features
Form Factor	mATX
Basic Information
Supported CPU	10th Gen, Pentium Gold, Celeron, 11th Gen
Chipset	Intel B560
Memory
Ram Type	DDR4

MSI MAG B560M BAZOOKA 10th and 11th Gen Micro ATX Motherboard

The MSI MAG B560M BAZOOKA Micro ATX Motherboard supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold, and Celeron processors for LGA 1200 socket. It supports DDR4 Memory, up to 5066(OC) MHz. Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs. It comes with Premium Thermal Solution. Extended Heatsink Design and M.2 Shield Frozr are built for high-performance systems and non-stop works. It features 2.5G LAN with LAN Manager. Upgraded network solution for professional and multimedia use. Delivers a secure, stable, and fast network connection. The motherboard is powered by a USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C. It has Audio Boost, Reward your ears with studio-grade sound quality. It is supported with Multi-GPU. With Steel armor PCIe slots. Supports 2-Way AMD Crossfire. It has 3 years of warranty.

Specification

Basic Information
Supported CPU	Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium® Gold, and Celeron Processors
Chipset	Intel B560 Chipset
Form Factor	Micro ATX Form Factor
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio
Expansion Slots
PCI	1x PCIe x16 slot PCI_E1 (from CPU) Support up to PCIe 4.0 for 11th Gen Intel CPU Support up to PCIe 3.0 for 10th Gen Intel CPU 2x PCIe 3.0 x1 slots PCI_E2 & PCI_E3 (From B560 chipset)
M.2 Socket	2x M.2 slots (Key M)
Memory
Type	DDR4
Slots	4 x DIMM slots
Supported Memory	Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)1 Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5066 MHz 1DPC 2R Max speed up to 4600+ MHz 2DPC 1R Max speed up to 4266+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory,Supports Intel Extreme Memory Profile (XMP)
Maximum Memory	Up to 128GB
Graphics
Graphics	1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
Connector & Ports
HDMI	1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
Display Port (s)	1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
USB (s)	Intel B560 Chipset 2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 2x USB 2.0 Type-A ports on the back panel USB Hubs GL850G 4x USB 2.0 ports are available through the internal USB 2.0 connectors
LAN Port (s)	1x Realtek RTL8125B 2.5Gbps LAN controller
Supported Storage	6x SATA 6Gb/s ports (from B560 chipset) 2x M.2 slots (Key M) M2_1 slot Supports up to PCIe 4.0 x4 for 11th Gen Intel CPU(From CPU) Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel CPU (From B560 chipset),Supports 2242/ 2260/ 2280 storage devices M2_2 slot(from B560 chipset) Supports up to PCIe 3.0 x4,Supports 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready Supports Intel Smart Response Technology for Intel Core processors
Audio	1x Front panel audio connector
Internal I/O Ports	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB Gen 1 ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector,1x Clear CMOS jumper 1x Serial port connector,1x Tuning Controller connector
TPM (Trusted Platform Module )	1x TPM module connector
Warranty Information
Manufacturing Warranty	03 years Warranty
