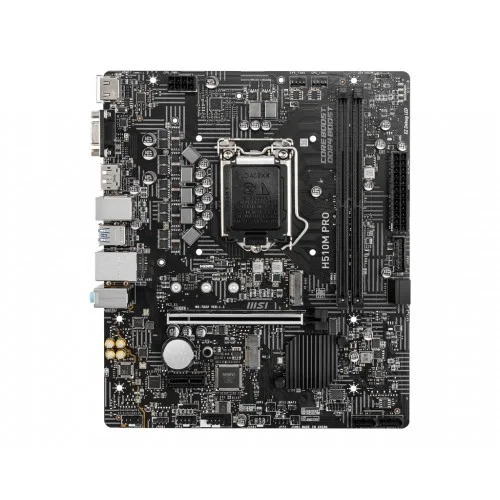

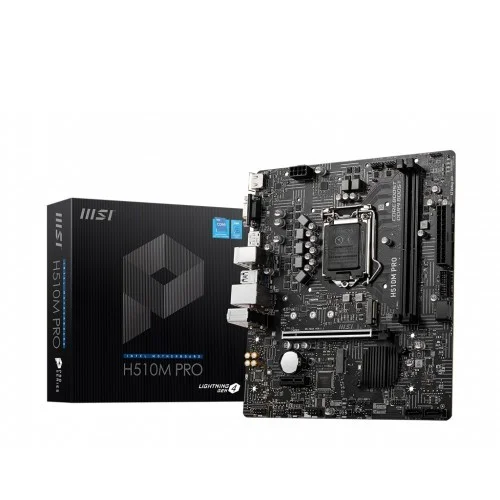

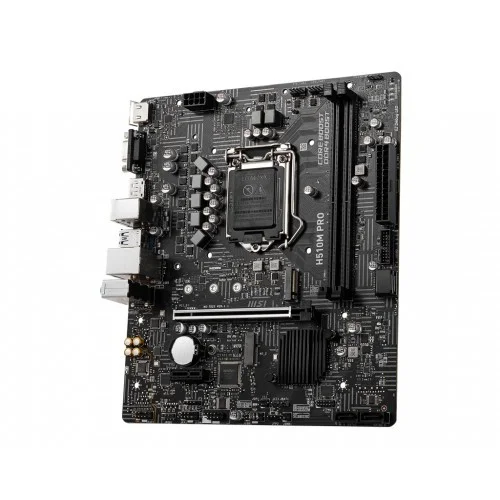

MSI H510M PRO Intel 10th Gen and 11th Gen Mirco-ATX Motherboard

Out Of Stock

MSI H510M PRO Intel 10th Gen and 11th Gen Mirco-ATX Motherboard

Stock: Out Of Stock
Model: MSI H510M PRO
Product id: 19627

Based on 0 reviews. - Write a review

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে আমাদের হেল্পলাইন +8801612-266507 নম্বরে কল দিয়ে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

• Supports 10th and 11th Gen Processors • DDR4 Memory, up to 3200(Max) MHz • LGA 1200 socket • PCIe 4.0, Turbo M.2

MSI H510M PRO Intel 10th Gen and 11th Gen Mirco-ATX Motherboard

The MSI PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. MSI H510M PRO Intel 10th Gen and 11th Gen Mirco-ATX Motherboard supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket, DDR4 Memory, up to 3200(Max) MHz. The Motherboard featured with premium layout and digital power design to support more cores and provide better performance

The latest MSI H510M PRO Intel 10th Gen and 11th Gen Mirco-ATX Motherboard has 03 years warranty.

Specifications:

Basic Information
Supported CPU	Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors1
Chipset	Intel H510 Chipset
Form Factor	mATX Form Factor
Audio	7.1-Channel High Definition Audio
Expansion Slots
PCI	1x PCIe x16 slot (From CPU) - Support up to PCIe 4.0 for 11th Gen Intel CPU - Support up to PCIe 3.0 for 10th Gen Intel CPU 1x PCIe 3.0 x1 slot (From PCH)
M.2 Socket	1x M.2 slot with E key for WiFi module only(M2_2)
Memory
Type	DDR4
Slots	2x DDR4 memory slots
Supported Memory	1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Dual-Channel mode non-ECC, un-buffered memory Intel Extreme Memory Profile (XMP)
Maximum Mamory	support up to 64GB
Graphics
Graphics	HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
Connector & Ports
USB (s)	- 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) - 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)
LAN Port (s)	1x Intel I219V 1Gbps LAN controller
Supported Storage	4x SATA 6Gb/s ports (From H510 Chipset) 1x M.2 slot (Key M) - M2_1 slot (From H510 Chipset) - up to PCIe 3.0 x4 - SATA 6Gb/s1 - 2242/ 2260/ 2280 storage devices
Audio	1x Front panel audio connector
Internal I/O Ports	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) USB 2.0 connector (supports additional 2 USB 2.0 ports) 1x 4-pin CPU fan connector 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors Serial port connector 1x Chassis Intrusion connector Clear CMOS jumper 1x TPM module connector
Warranty Information
Manufacturing Warranty	03 years warranty
