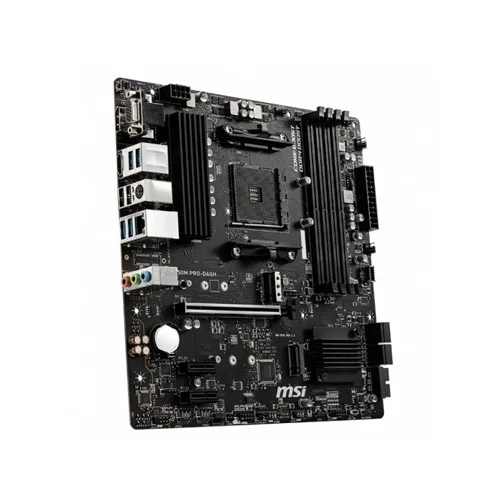

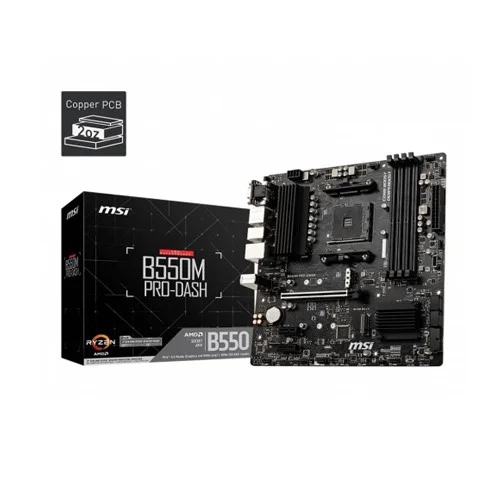

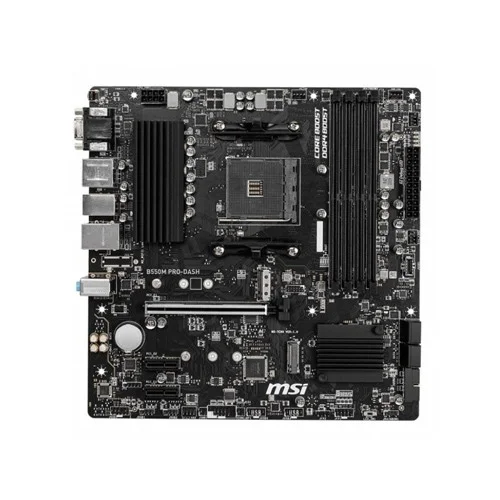

MSI B550M PRO-DASH AM4 Micro-ATX Motherboard

Up Coming

MSI B550M PRO-DASH AM4 Micro-ATX Motherboard

Stock: Up Coming
Model: B550M PRO-DASH
Product id: 28334

Based on 0 reviews. - Write a review

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

যেকোনো অনাকাঙ্ক্ষিত ঝামেলা এড়াতে, অনলাইনে অর্ডার করার আগে আমাদের হেল্পলাইনে (+8801612-266507) কল করে পণ্যের স্টক এবং ডেলিভারি সম্পর্কে জেনে নেওয়ার জন্য বিনীত অনুরোধ করা হচ্ছে।

Supports AMD Ryzen 5000/4000G/3000 CPUs
Dual M.2 with PCIe 4.0 & SATA
128GB DDR4 Dual Channel Memory
HDMI 2.1 & DisplayPort 4K Output

Basic Information
Supported CPU	Supports AMD Ryzen 5000 & 3000 Series desktop processors and AMD Ryzen 4000 G-Series desktop processors
Chipset	AMD B550 Chipset
Form Factor	Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Expansion Slots
PCI	1x PCIe 3.0/ 4.0 x16 slot (PCI_E1) 1 2x PCIe 3.0 x1 slots
M.2 Socket	2x M.2 slots (Key M) M2_1 slot (from AMD processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices
Memory
Type	DDR4
Slots	4x DDR4 memory slots
Supported Memory	Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933 MHz by JEDEC Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory Supports un-buffered memory
Maximum Memory	128GB
Graphics
Graphics	1x VGA port, supports resolution of 2048 x 1536 @ 50Hz, 2048 x 1280 @60Hz, 1920x1200 @60Hz 1x DisplayPort, supports a maximum resolution of 4096 x 2160 @60Hz 1x HDMI 2.1 port, supports a maximum resolution of 4096 x 2160 @60Hz Support HDCP 1.4 & 2.3
Connector & Ports
HDMI	1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
Display Port (s)	1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz
USB (s)	AMD A520 Chipset: 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor: 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
LAN Port (s)	1x Realtek RTL8111EPV 1Gbps LAN controller
Supported Storage	AMD B550 Chipset 4x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices
TPM (Trusted Platform Module )	1 x TPM module connector
Audio	Realtek ALC892/ ALC897 Codec 7.1-Channel High Definition Audio
Internal I/O Ports	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 3x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x Clear CMOS jumper
Connectivity
VGA	1x VGA port, supports resolution of 2048x1536 @50Hz, 2048 x 1280 @60Hz, 1920 x 1200 @60Hz
Warranty Information
Warranty	03 Years Warranty

MSI B550M PRO-DASH AM4 Micro-ATX Motherboard

The MSI B550M PRO-DASH AM4 Micro-ATX Motherboard is engineered to meet the demands of modern-day productivity, business solutions, and home users seeking top-tier performance at an affordable price. Designed around the reliable AMD B550 chipset, it supports a wide range of AMD Ryzen 5000, 4000 G-Series, and 3000 series processors, ensuring optimal speed and responsiveness across tasks.Equipped with dual M.2 slots and 4x SATA 6Gb/s ports, this board delivers versatile storage options including PCIe 4.0 support, providing faster boot times and improved application load speeds. Its robust memory architecture supports up to 128GB DDR4 RAM in a dual-channel configuration, offering stability and headroom for multitasking.Graphics connectivity is flexible with VGA, HDMI 2.1, and DisplayPort outputs—supporting up to 4K resolution. This makes it suitable for content creators, business displays, and home media setups. Additionally, onboard Realtek 7.1-channel HD audio and a 1Gbps LAN port provide smooth networking and immersive sound.The motherboard also includes multiple USB 3.2 Gen 1 and USB 2.0 ports, both internal and rear, ensuring hassle-free peripheral connectivity. Designed with MSI's PRO Series features, it includes TPM support, RGB headers, and enhanced fan control options, making it perfect for secure, efficient builds.Whether you're upgrading a workstation, building a compact gaming rig, or setting up a business PC, the MSI B550M PRO-DASH offers outstanding value, durability, and features that cater to every need.Get the best price in BD for the MSI B550M PRO-DASH AM4 Micro-ATX Motherboard and experience performance redefined.

Features

Supports AMD Ryzen 5000, 4000G, and 3000 series CPUs
Dual M.2 slots with PCIe 4.0 and SATA support
Micro-ATX form factor ideal for compact builds
4K display supported via HDMI 2.1 and DisplayPort
128GB DDR4 RAM support in dual channel mode
Multiple USB 3.2 Gen 1 and USB 2.0 connectivity
Realtek 7.1-Channel High Definition Audio
Integrated TPM header for advanced security
Efficient fan headers for optimal thermal control
Best price in Bangladesh with full 3-year warranty
