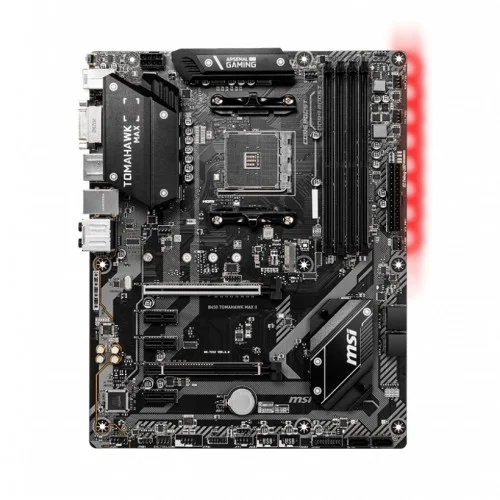

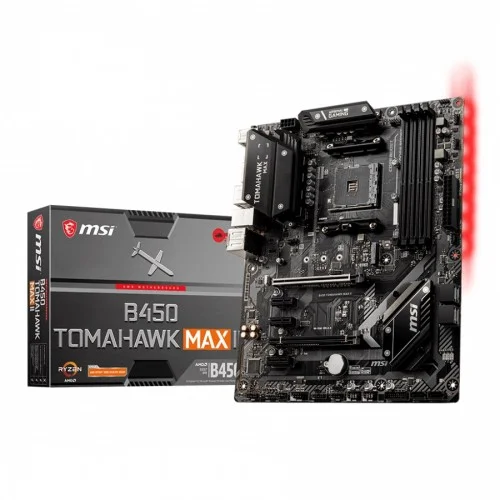

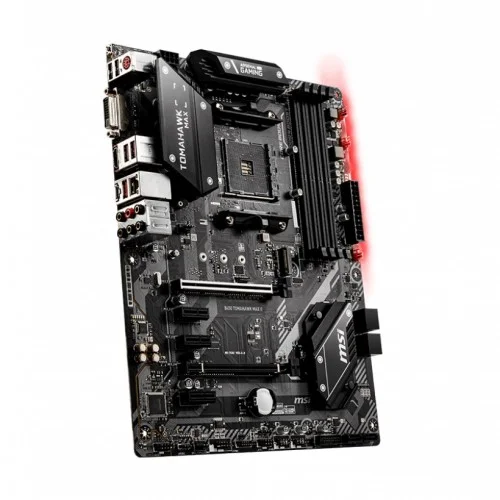

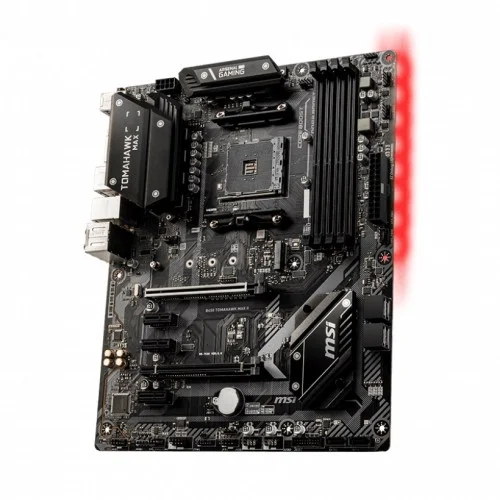

MSI B450 TOMAHAWK MAX II AMD AM4 ATX Motherboard

Out Of Stock

MSI B450 TOMAHAWK MAX II AMD AM4 ATX Motherboard

Stock: Out Of Stock
Model: B450 TOMAHAWK MAX II
Product id: 22537

Based on 0 reviews. - Write a review

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে আমাদের হেল্পলাইন +8801612-266507 নম্বরে কল দিয়ে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

- Supports 1st, 2nd and 3rd Gen AMD Ryzen Processors for Socket AM4
- Supports DDR4 Memory, up to 4133(OC) MHz
- 1x TURBO M.2, AMD Turbo USB 3.2 GEN2
- Supports 2-Way AMD Crossfire

Key Features
Form Factor	ATX
Basic Information
Chipset	AMD B450
Memory
Ram Type	DDR4

MSI B450 TOMAHAWK MAX II AMD AM4 ATX Motherboard

The MSI B450 TOMAHAWK MAX II Motherboard is Supports 1st, 2nd, and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4 with DDR4 Memory, up to 4133(OC) MHz. This motherboard is designed with Extended Heatsink Design that MSI extended PWM heatsink and enhanced circuit design ensure even high-end processors to run at full speed. From this motherboard, you will get Lightning Fast Game experience which is consists of 1x TURBO M.2, AMD Turbo USB 3.2 GEN2, Store MI technology. This AMD motherboard is consists of a premium layout and fully digital power design to support more cores and provide better performance. In this motherboard, the Advanced technology to deliver pure data signals for the best gaming performance and stability with With STEEL ARMOR PCI-E slots. Supports 2-Way AMD Crossfire (Multi GPU). You can simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory, or graphics card. The MSI B450 TOMAHAWK MAX II comes with 03 years of warranty.

Specification

Basic Information
Supported CPU	Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4
Chipset	AMD B450 Chipset
Form Factor	12 in. x 9.6 in. (30.5 cm x 24.4 cm) ATX Form Factor
Audio	Realtek ALC892/ALC897 Codec 7.1-Channel High Definition Audio
Expansion Slots
PCI	1 x PCIe 3.0 x16 slot (PCI_E1) 1st, 2nd and 3rd Gen AMD Ryzen processors support x16 speed Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics processors support x8 speed 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode) 3 x PCIe 2.0 x1 slots
Memory
Type	DDR4
Slots	4 x DDR4 memory slots
Supported Memory	- Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) - For AMD Ryzen Gen3 (R5/R7/R9) - Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 4000/ 4133 MHz (by A-XMP OC MODE) - For AMD Other CPU - Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE) - Dual channel memory architecture - Supports non-ECC UDIMM memory - Supports ECC UDIMM memory (non-ECC mode)
Maximum Memory	128GB
Graphics
Graphics	1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hz 1 x HDMI 2.1 port, supports a maximum resolution of 4096x2160@60Hz
Max Shared Memory	16GB
Connector & Ports
HDMI	1 x HDMI 2.1 port
DVI-D (s)	1 x DVI-D port

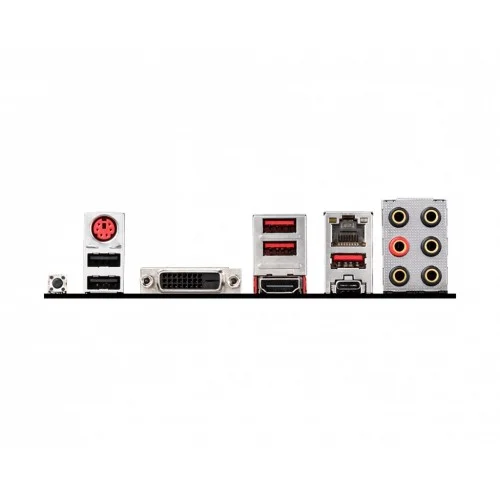

USB (s)	AMD B450 1x USB 3.2 Gen 2 10Gbps Type-C port on the back panel 1x USB 3.2 Gen 2 10Gbps Type-A port on the back Panel 2x USB 3.2 Gen 1 5Gbps ports available through the internal USB connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD CPU 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
LAN Port (s)	1 x Realtek 8111H Gigabit LAN controller
Supported Storage	AMD CPU 2 x SATA 6Gb/s ports 1 x M.2 slot (Key M) Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s Supports 2242/ 2260 /2280/ 22110 storage devices AMD B450 4 x SATA 6Gb/s ports
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 1 x Serial Port connector 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports) 1 x 4-pin CPU fan connector 1 x 4-pin water-pump-fan connector 4 x 4-pin system fan connectors 1 x TPM module connector 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 2 x 5050 RGB LED strip 12V connectors
TPM (Trusted Platform Module )	1 x TPM module connector
Warranty Information
Manufacturing Warranty	03 years warranty
