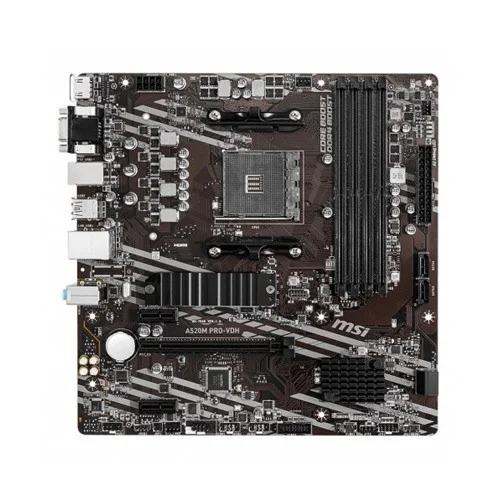

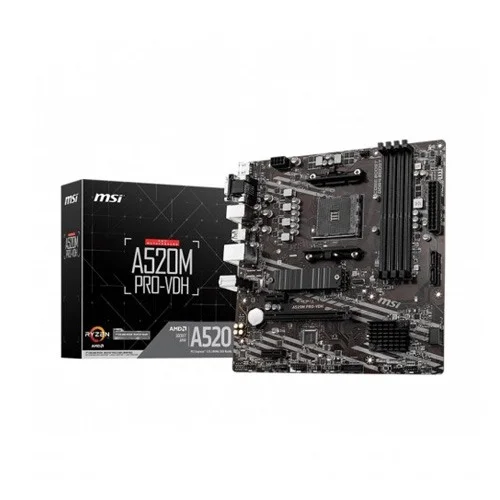

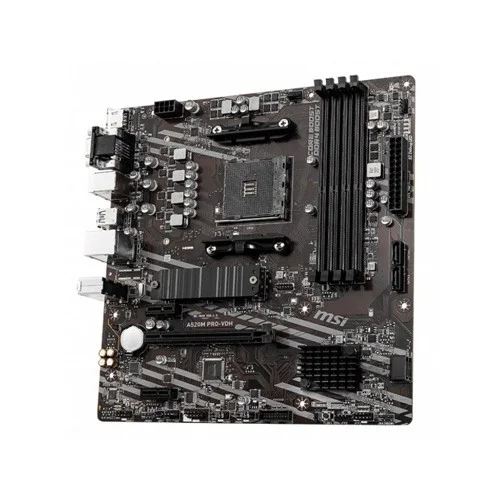

MSI A520M PRO-VDH AMD AM4 Micro-ATX Motherboard

Up Coming

MSI A520M PRO-VDH AMD AM4 Micro-ATX Motherboard

Stock: Up Coming
Model: A520M PRO-VDH
Product id: 28332

Based on 0 reviews. - Write a review

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে আমাদের হেল্পলাইন +8801612-266507 নম্বরে কল দিয়ে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

Supports Ryzen 5000/4000/3000 CPUs
Dual-channel DDR4 up to 4400+ MHz
Triple display with HDMI/DP/VGA
1x M.2 slot with PCIe & SATA support

Basic Information
Supported CPU	Supports AMD Ryzen 5000 & 3000 Series desktop processors and AMD Ryzen 4000 G-Series desktop processors
Chipset	AMD A520 Chipset
Form Factor	mATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio
Expansion Slots
PCI	2x PCIe 3.0 x16 slots 1x PCIe 3.0 x1 slot
M.2 Socket	1x M.2 slot (Key M) (from AMD Processor)
Memory
Type	Dual-channel memory architecture
Slots	4x DDR4 memory slots
Supported Memory	Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHz 1DPC 2R max speed 3866 MHz Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory
Maximum Memory	128GB
Graphics
Graphics	1x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @60Hz Support for HDMI 1.4 version, HDCP 1.4 & 2.3 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1 x VGA port, supporting a maximum resolution of 2048x1280 @60Hz
Connector & Ports
HDMI	1x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @60Hz
Display Port (s)	1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz
USB (s)	AMD A520 Chipset: 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors AMD Processor: 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
LAN Port (s)	1x Realtek RTL8111H 1Gbps LAN controller
Supported Storage	AMD A520 Chipset: 4x SATA 6Gb/s ports 1x M.2 slot (Key M) (from AMD Processor) Supports PCIe 3.01 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices
TPM (Trusted Platform Module )	1x TPM module connector
Audio	1x Front panel audio connector
Internal I/O Ports	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x Serial port connector 1x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 2x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector 1x Clear CMOS jumper 1x Flash BIOS button
Connectivity
VGA	1 x VGA port, supporting a maximum resolution of 2048x1280 @60Hz
Warranty Information
Warranty	03 Years Warranty

MSI A520M PRO-VDH AMD AM4 Micro-ATX Motherboard

The MSI A520M PRO-VDH AMD AM4 Micro-ATX Motherboard is an ideal solution for building reliable, high-performance systems powered by AMD Ryzen processors. Engineered for durability and value, this motherboard supports AMD Ryzen 5000, 4000 G-Series, and 3000 Series desktop processors, making it an excellent choice for gamers, content creators, and professionals looking for dependable computing performance.Built on the AMD A520 chipset, the board features a compact mATX form factor with a 24.4 x 24.4 cm layout, ensuring compatibility with a wide range of PC cases. It supports up to 128GB of DDR4 memory across four slots, with speeds up to 4400+ MHz in A-XMP OC mode. Whether you’re multitasking or gaming, memory performance is smooth and efficient.For display output, the MSI A520M PRO-VDH offers triple display support with HDMI 1.4, DisplayPort, and VGA ports, providing crisp visuals up to 4K resolution. With one PCIe 3.0 x16 slot and an additional M.2 slot (Key M), it supports high-speed NVMe SSDs and powerful GPUs, ensuring fast system responsiveness.The board is equipped with Realtek ALC897 7.1-channel high-definition audio and Realtek RTL8111H Gigabit LAN for strong connectivity. Multiple USB 3.2 Gen 1 and USB 2.0 ports ensure flexibility for external peripherals.Additionally, the motherboard supports RGB and Rainbow LED connectors, a clear CMOS jumper, Flash BIOS button, and TPM module support for security. It's backed by a 3-year warranty, ensuring long-term reliability.If you're searching for a budget-friendly, stable, and feature-rich AMD AM4 motherboard, the MSI A520M PRO-VDH is one of the best options at the best price in BD.

Features

Supports AMD Ryzen 5000, 4000 G-Series, and 3000 Series processors
Dual-channel DDR4 up to 4400+ MHz (OC) for high-speed multitasking
Triple display support with HDMI, DisplayPort, and VGA outputs
Realtek ALC897 7.1-Channel HD Audio for immersive sound
M.2 slot with PCIe 3.0 & SATA support for faster storage
Four DDR4 slots supporting up to 128GB memory
Realtek 1Gbps LAN for stable and fast networking
Multiple USB 3.2 Gen 1 & USB 2.0 ports for full connectivity
Integrated RGB & Rainbow LED connectors for customization
Compact mATX form factor with durable build and 3-year warranty
