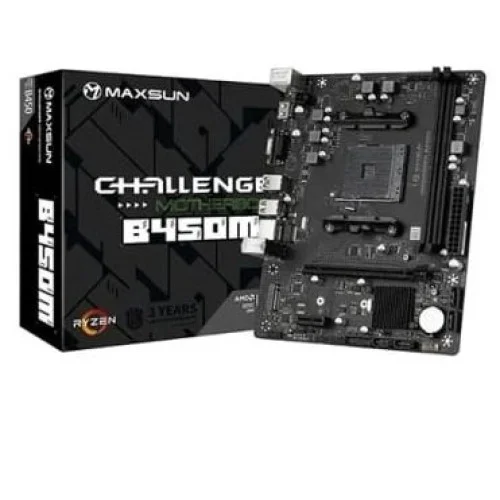

MAXSUN Challenger B450M AM4 M-ATX Motherboard
- Stock: In Stock
- Model: Challenger B450M
- Product id: 26983
- FORM FACTOR: M-ATX
- CHIPSET AMD: B450 Chipset
- Full load: R5 5600/4500/3600
- Full speed M.2
| Display Features | |
| Other Features | RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Basic Information | |
| Supported CPU | AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors |
| Chipset | AMD B450 Chipset |
| Form Factor | M-ATX |
| Audio | Realtek ALC897 Codec 5.1-Channel High Definition Audio |
| General Information | |
| LED Indicator Light | Without Debug LED |
| OS SUPPORT | Support for Windows 11 64-bit, Windows 10 64-bit |
| Memory | |
| Supported Memory | 2x DDR4, Maximum Memory Capacity 64GB Memory Support DDR4 3200(OC)/ 2933(OC)/ 2666(OC)/ 2400(OC) MHz Supports AMD A-XMP OC Supports Dual-Controller Dual-Channel mode |
| Graphics | |
| Graphics | 1x VGA *Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz 1x HDMI port *HDMI port supports up to 4K 30Hz *Graphics specifications may vary between CPU types. |
| Connector & Ports | |
| USB (s) | *Front USB (Total 4 ports) 2x USB 3.2 Gen1 Type A 2x USB 2.0 *Rear USB (Total 4 ports) 2x USB 3.2 Gen1 Type A 2x USB 2.0 |
| Supported Storage | M.2 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode) 4x SATA 6Gb/s ports |
| Audio | Realtek ALC897 Codec 5.1-Channel High Definition Audio |
| Internal I/O Ports | 1x 24-pin Power Connector(ATX_PWR) 1x 4-pin Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 1x PS/2 interface 1x M.2 slots (Key-M) 4x SATA 6Gb/s ports 1x 4-Pin SPEAKER 1x Front Audio 1x COM_A Port 1x 9-Pin DEBUG_CON 1x CLR CMOS |
| Network & Connectivity | |
| Lan | Realtek RTL8111H 1G LAN |
| External Features | |
| Expansion Slots | 1x PCIe 3.0 x16 slot 1x PCIe 3.0 x1 slot |
| Physical Specification | |
| Dimensions | 220mm x 175mm |
| Warranty Information | |
| Warranty | 3 Years |
MAXSUN Challenger B450M AM4 M-ATX Motherboard Available in creatus computer ,The MAXSUN Challenger B450M AM4 M-ATX Motherboard is a versatile and compact option designed for budget-conscious gamers and PC builders looking to harness the power of AMD Ryzen processors. This motherboard strikes a perfect balance between performance, features, and affordability, making it an excellent choice for both novice and experienced builders. At the core of the MAXSUN Challenger B450M is its AM4 socket, which supports a wide range of AMD Ryzen CPUs, including the first, second, and third generations, as well as the Ryzen APUs. This flexibility allows users to choose from a variety of processors, tailoring their system's performance to their specific needs, whether it be for gaming, content creation, or everyday tasks. One of the standout features of the Challenger B450M is its support for dual-channel DDR4 memory, with four DIMM slots that accommodate up to 64GB of RAM. With support for speeds up to 3200 MHz (OC), this motherboard ensures that your system runs smoothly and efficiently, even under heavy multitasking or demanding gaming scenarios. The ability to overclock memory provides an extra layer of performance tuning for users who want to push their systems further. The motherboard's M-ATX form factor makes it an excellent choice for compact builds, while still providing ample connectivity options. It features one PCIe 3.0 x16 slot for a dedicated graphics card, as well as two PCIe 2.0 x1 slots for additional expansion cards. This layout allows gamers to install high-performance GPUs and other peripherals without sacrificing space or functionality. Storage options are plentiful with the MAXSUN Challenger B450M, which includes four SATA III ports for traditional hard drives and SSDs, as well as one M.2 slot that supports NVMe and SATA SSDs. This ensures that users can take advantage of high-speed storage solutions, significantly reducing load times and enhancing overall system responsiveness. In terms of connectivity, the Challenger B450M is equipped with USB 3.1 Gen 1 and USB 2.0 ports, providing fast data transfer speeds and compatibility with a wide array of devices. The rear I/O panel also includes HDMI and DVI-D outputs, allowing users to connect multiple displays, which is particularly useful for productivity and gaming setups. Another noteworthy aspect of the MAXSUN Challenger B450M is its emphasis on cooling and system stability. The motherboard includes multiple fan headers and features such as temperature monitoring, which helps users maintain optimal thermal performance. This is crucial for gamers and over clockers looking to ensure that their systems run cool and stable during intense usage. Overall, the MAXSUN Challenger B450M AM4 M-ATX Motherboard is an impressive choice for anyone looking to build a powerful yet budget-friendly PC. Its robust features, solid build quality, and support for the latest AMD technologies make it a compelling option for a wide range of applications. Whether you are building a gaming rig, a content creation workstation, or a general-purpose PC, this motherboard provides the flexibility and performance you need to succeed. With its excellent value proposition, the MAXSUN Challenger B450M is poised to be a favorite among PC enthusiasts and gamers alike.
