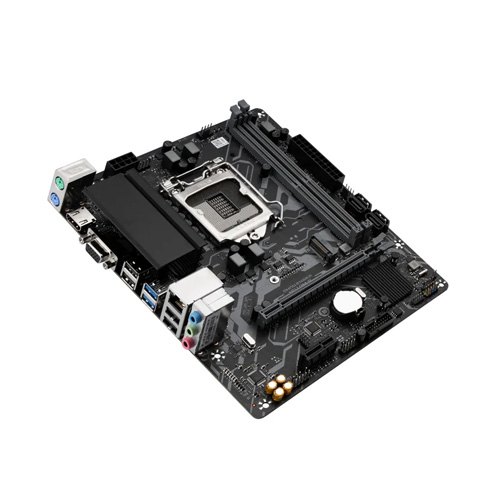

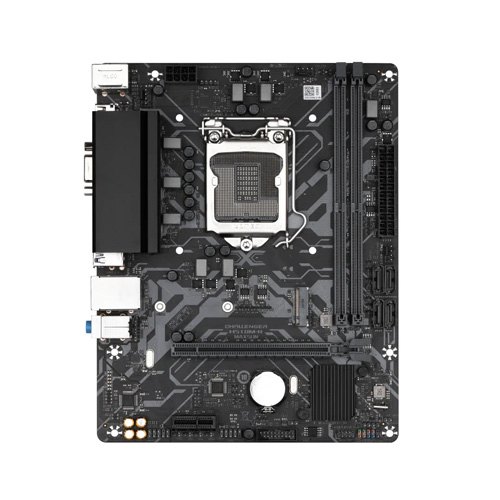

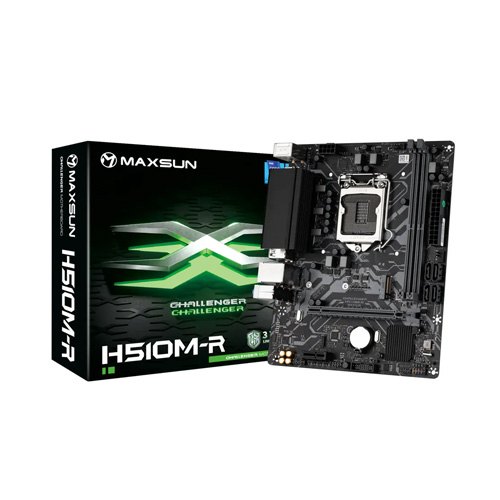

Maxsun Challenger H510M-R DDR4 LGA1200 Motherboard

Maxsun Challenger H510M-R DDR4 LGA1200 Motherboard

Maxsun Challenger H510M-R DDR4 LGA1200 Motherboard is a versatile and reliable option for building a high-performance desktop system. Powered by the Intel H510 chipset, this motherboard offers support for 10th and 11th generation Intel Core processors, Pentium Gold, and Celeron processors with LGA 1200 socket compatibility, ensuring compatibility with a wide range of CPUs for various computing needs. Featuring a dual-channel memory architecture, the Maxsun Challenger supports up to 64GB of DDR4 memory with speeds of up to 3200MHz when overclocked, providing ample room for multitasking and demanding applications. With support for Intel XMP 2.0, users can easily enable overclocking profiles for enhanced performance. In terms of graphics capabilities, the motherboard offers flexibility with both VGA and HDMI outputs. The VGA port supports resolutions up to 2048×1536 at 50Hz, while the HDMI port supports up to 4K resolution at 30Hz, catering to different display needs and setups. Additionally, the PCIe 4.0 x16 slot and PCIe 3.0 x1 slot provide expansion options for adding dedicated graphics cards or other expansion cards. Storage options are plentiful with an M.2 slot supporting PCIe 3.0 x4 mode for high-speed NVMe SSDs, along with four SATA 6Gb/s ports for traditional hard drives or SSDs. RAID support for RAID 0, RAID 1, RAID 5, and RAID 10 configurations enhances data protection and performance for storage devices. Connectivity features include a variety of USB ports, both on the front and rear panels, providing convenient access for peripherals and external devices. The onboard Realtek RTL8111H 1G LAN and Realtek ALC897 Codec deliver reliable network connectivity and high-definition audio respectively, ensuring an immersive multimedia experience. With a compact M-ATX form factor measuring 215mm x 170mm, the Maxsun Challenger H510M-R DDR4 LGA1200 Motherboard is suitable for small form factor builds without compromising on features and performance. Whether for gaming, content creation, or everyday computing tasks, this motherboard offers the reliability, expandability, and compatibility needed for a smooth and efficient PC build.

Features

• Intel H510 Chipset: Ensures stable and reliable performance with support for 10th and 11th generation Intel Core processors, Pentium Gold, and Celeron processors with LGA 1200 socket compatibility.
• Dual-Channel DDR4 Memory Support: Two DDR4 DIMM slots support up to 64GB of system memory with speeds of up to 3200MHz (OC), facilitating smooth multitasking and application performance.
• Flexible Graphics Outputs: Equipped with 1x VGA port supporting resolutions up to 2048×1536 and 1x HDMI port supporting resolutions up to 4K@30Hz, offering flexibility for various display configurations.
• Expansion Slots: Features 1x PCIe 4.0 x16 slot for graphics cards and 1x PCIe 3.0 x1 slot for additional expansion cards, providing versatility for customization and upgrades.
• Storage Options: Includes an M.2 slot supporting PCIe 3.0 x4 mode for high-speed NVMe SSDs and four SATA 6Gb/s ports for traditional hard drives or SSDs, with RAID support for enhanced data protection and performance.

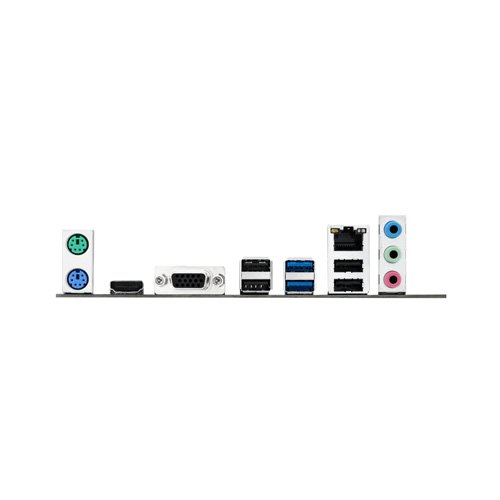

• USB Connectivity: Offers a total of 10 USB ports (4x USB 3.2 Gen1 Type-A and 6x USB 2.0), split between front and rear panels, providing ample connectivity for peripherals and external devices.
• Gigabit LAN: Utilizes Realtek RTL8111H 1G LAN for reliable and high-speed wired network connectivity, ensuring smooth online gaming and content streaming experiences.
• High-Definition Audio: Integrated with Realtek ALC897 Codec, delivering 5.1-channel high-definition audio for immersive sound quality during multimedia playback and gaming.
• Internal I/O Connectivity: Features a range of internal connectors including power connectors, fan headers, M.2 slots, SATA ports, and various other headers for ease of system assembly and expansion.
• Compact M-ATX Form Factor: With dimensions of 215mm x 170mm, it's suitable for compact PC builds while still offering a comprehensive range of features and capabilities.
