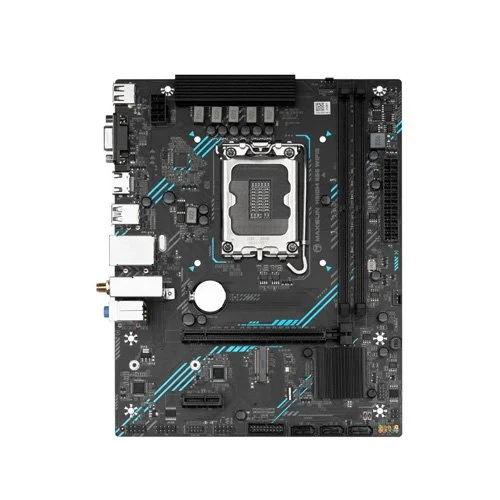

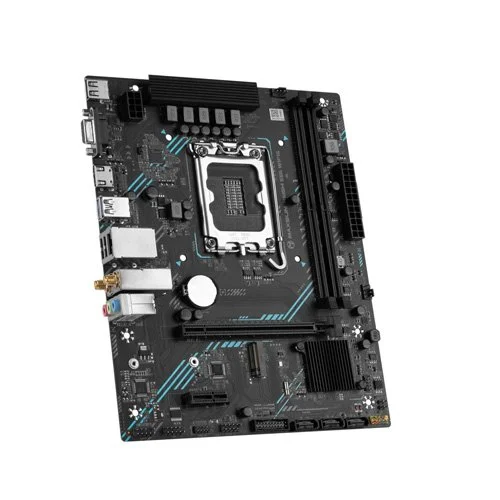

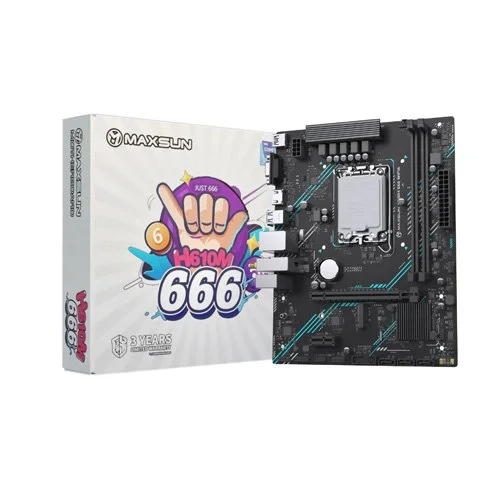

Maxsun MS-H610M 666 WIFI6 DDR4 Motherboard

Maxsun MS-H610M 666 WIFI6 DDR4 Motherboard

Maxsun MS-H610M 666 WIFI6 DDR4 Motherboard is a powerful and feature-packed option designed to meet the demands of modern computing. Built around the Intel H610 chipset, this motherboard offers robust support for 12th and 13th Gen Intel® Core™ Processors, Pentium® Gold, and Celeron® Processors, ensuring compatibility with a wide range of CPUs for various computing needs. The LGA 1700 socket provides a secure and reliable connection for your processor. In terms of memory, the motherboard boasts two DDR4 DIMM slots with a maximum capacity of 64GB, supporting memory speeds of up to 3200MHz (OC). It also features Intel® XMP 2.0 overclocking support, allowing for optimized performance configurations. The Dual-Controller Dual-Channel mode enhances memory performance, ensuring smooth multitasking and responsiveness. For graphics output, the Maxsun MS-H610M offers versatile connectivity options, including DisplayPort 1.2 and HDMI™ ports capable of delivering stunning 4K resolution at 30Hz. The onboard graphics capabilities may vary depending on the CPU type installed. Expansion capabilities are plentiful with a PCIe 4.0 x16 slot and a PCIe 3.0 x1 slot, providing ample room for additional components such as dedicated graphics cards or expansion cards. Storage options include an M.2 slot supporting PCIe 3.0 x4 mode for high-speed NVMe SSDs, as well as four SATA 6Gb/s ports for traditional storage devices. Connectivity is further enhanced with a range of USB ports, both at the front and rear of the motherboard, including USB 3.2 Gen1 Type-A and USB 2.0 ports for seamless peripheral connectivity. The inclusion of Realtek® RTL8111H 1G LAN ensures reliable networking capabilities, while the Realtek® ALC897 Codec delivers immersive 5.1-channel high-definition audio. The Maxsun MS-H610M 666 WIFI6 DDR4 Motherboard also features a range of internal I/O connectors for easy installation and maintenance, as well as LED debugging features for troubleshooting. With support for Windows® 11 64-bit and Windows® 10 64-bit operating systems, this motherboard offers a versatile platform for building high-performance desktop systems. Its M-ATX form factor ensures compatibility with a wide range of PC cases while providing a compact footprint. Overall, the Maxsun MS-H610M 666 WIFI6 DDR4 Motherboard is a reliable and feature-rich option for enthusiasts and professionals alike, offering a solid foundation for cutting-edge computing experiences.

Features

• Intel H610 Chipset: The motherboard is built around the Intel H610 chipset, providing a stable and reliable platform for compatible processors.
• CPU Support: It supports 12th and 13th Gen Intel® Core™ Processors, Pentium® Gold, and Celeron® Processors, ensuring compatibility with a wide range of CPUs for various computing needs.
• Memory Support: Equipped with two DDR4 DIMM slots, it supports a maximum memory capacity of 64GB, with memory speeds of up to 3200MHz (OC).
• Intel XMP 2.0 Support: Enables easy and optimized memory overclocking configurations for enhanced performance.
• Graphics Output: Offers versatile graphics output options with 1x DisplayPort 1.2 and 1x HDMI™ port, capable of delivering up to 4K resolution at 30Hz.
• Expansion Slots: Features 1x PCIe 4.0 x16 slot and 1x PCIe 3.0 x1 slot for accommodating additional components like graphics cards or expansion cards.
• Storage Options: Includes an M.2 slot (Key M) supporting PCIe 3.0 x4 mode for high-speed NVMe SSDs, along with four SATA 6Gb/s ports for traditional storage devices.
• USB Connectivity: Provides a variety of USB ports, including USB 3.2 Gen1 Type-A and USB 2.0 ports, both at the front and rear of the motherboard, for seamless peripheral connectivity.
• LAN and Audio: Equipped with Realtek® RTL8111H 1G LAN for reliable networking capabilities and Realtek® ALC897 Codec for immersive 5.1-channel high-definition audio.
• Internal I/O Connectors: Offers a range of internal I/O connectors, including power connectors, fan headers, M.2 slots, SATA ports, and more, for easy installation and maintenance.
• LED Debugging Features: Features 4x Distributed Debug LED for easy troubleshooting and diagnostics.
• Operating System Support: Compatible with Windows® 11 64-bit and Windows® 10 64-bit operating systems.
• Form Factor: Comes in a Micro-ATX (M-ATX) form factor, providing a balance between compactness and expandability, suitable for a variety of PC cases.
• WIFI6 Support: Incorporates WIFI6 technology for high-speed wireless connectivity, offering faster data transfer speeds and improved network performance.
