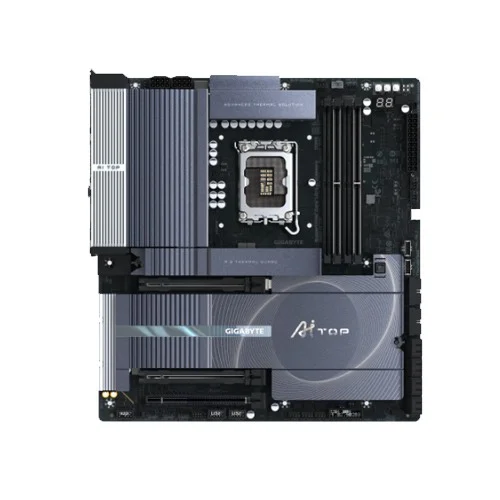

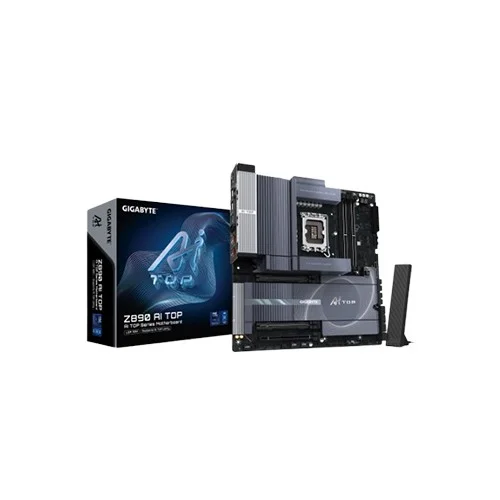

Gigabyte Z890 AI TOP Motherboard

Name: Gigabyte Z890 AI TOP Motherboard
Brand: GIGABYTE
Price: 85.00 BDT
Availability: InStock

Save: 3001৳ (3%)

Gigabyte Z890 AI TOP Motherboard

Stock: In Stock
Model: Z890 AI TOP
Product id: 27613

Based on 0 reviews. - Write a review

85,999৳

89,000৳

Ex Tax: 85,999৳

EMI starts at 30,157৳/month. View all 25 banks EMI plans >

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে আমাদের হেল্পলাইন +8801612-266507 নম্বরে কল দিয়ে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

Twin Digital 16+1+2 phases VRM solution
D5 Bionic Corsa for Infinite Memory Performance
Intel® Z890 Express Chipset
iTE® I/O Controller Chip

Basic Information
Supported CPU	Support for DDR5 9500(O.C)/ 9466(O.C) / 9333(O.C) / 9200(O.C)/ 9066(O.C) / 8933(O.C) /8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Support CUDIMM memory module (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Chipset	Intel® Z890 Express Chipset
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	E-ATX Form Factor; 30.5cm x 28.5cm
Audio	ESS ES9260 CODEC (rear panel audio) - High Definition Audio - 2-channel Realtek® ALC897 CODEC (front panel audio)
Graphics
Graphics	Integrated Graphics Processor+Intel® Thunderbolt™ 5 Controller: - 2 x Intel® Thunderbolt™ 5 connectors (USB4® USB Type-C® ports), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 7680x4320@60 Hz (single display output) * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, "Back Panel Connectors," for more information.) * Support for DisplayPort 2.1 version and HDCP 2.3 Integrated Graphics Processor-Intel® HD Graphics support: - 1 x Front Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port), supporting DisplayPort and Thunderbolt™ video outputs When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output). When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output). * Support for DisplayPort 2.1 version and HDCP 2.3 - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. (Graphics specifications may vary depending on CPU or graphics card support.) Support for up to triple-display at the same time
Connector & Ports
USB (s)	Chipset+Intel® Thunderbolt™ 5 Controller: - 2 x Intel® Thunderbolt™ 5 (USB Type-C®) ports on the back panel Support up to 80Gbps with Thunderbolt devices Support up to 40Gbps with USB4 devices *Support up to 20Gbps with USB 3.2 devices CPU: - 1 x USB4® USB Type-C® port onboard - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 2 x USB 3.2 Gen 1 ports on the back panel Chipset+USB 3.2 Gen 2 Hub: - 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)	2 x Marvell® AQtion AQC113C 10GbE LAN chips (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	Intel® Wi-Fi 7 BE200 - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 320MHz wireless standard (Actual data rate may vary depending on environment and equipment.) * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
Supported Storage	CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2L_SB) - 4 x SATA 6Gb/s connectors (SATA3 4~7) Chipset+ASMedia® ASM1164 chip: - 4 x SATA 6Gb/s connectors (SATA3 0~3) RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Back Panel Connectors	1 x DisplayPort In port 1 x HDMI port (Note) 2 x audio jacks 2 x Intel® Thunderbolt™ 5 connectors (USB Type-C® ports) 2 x USB 3.2 Gen 1 ports 6 x USB 3.2 Gen 2 Type-A ports (red) 2 x antenna connectors (2T2R) 2 x RJ-45 ports (Note) Actual support may vary by CPU.
Internal I/O Ports	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 8 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port) 2 x USB Type-C® headers, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x power button 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x noise detection header
Software
Operating System	Support for Windows 11 64-bit (Go to GIGABYTE's website for operating system support information.)
External Features
Expansion Slots	CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x8 (PCIEX8) * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. * The PCIEX16 and PCIEX8 slots can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the M2L_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2L_SB connector.
Others
Bundled Software	Norton® Internet Security (OEM version) LAN bandwidth management software

Gigabyte Z890 AI TOP Motherboard

The Gigabyte Z890 AI TOP Motherboard is a cutting-edge solution designed to meet the demands of modern computing enthusiasts and professionals. Built on the robust Intel® Z890 Express Chipset, this E-ATX motherboard offers exceptional performance, scalability, and connectivity for high-performance PCs. Supporting the latest DDR5 memory modules with speeds up to 9500MT/s (overclocked) and up to 256 GB capacity, the Z890 ensures unmatched multitasking and responsiveness. Its dual-channel memory architecture and support for Extreme Memory Profile (XMP) and ECC Un-buffered DIMMs make it an ideal choice for enthusiasts seeking optimal performance. The board integrates Intel® Thunderbolt™ 5 technology, providing two USB4 Type-C ports with ultra-fast 80Gbps bandwidth and support for high-resolution displays up to 7680x4320@60Hz. Additional display support includes HDMI 2.1 and DisplayPort 2.1 for versatile triple-display configurations. It also features three PCIe slots, including PCIe 5.0, for seamless graphics and NVMe SSD integration. With Wi-Fi 7 BE200 and dual Marvell® AQtion AQC113C 10GbE LAN ports, this motherboard ensures high-speed networking and low-latency connections, making it suitable for gaming, streaming, and data-intensive applications. Its comprehensive storage options include four PCIe M.2 connectors and eight SATA 6Gb/s ports, supporting RAID configurations for both NVMe and SATA drives. Designed with enhanced cooling solutions and advanced I/O options, the Z890 includes multiple fan headers, RGB LED headers, USB 3.2 Gen 2x2 ports, and a noise detection header. Bundled software like Norton® Internet Security adds an extra layer of protection.
