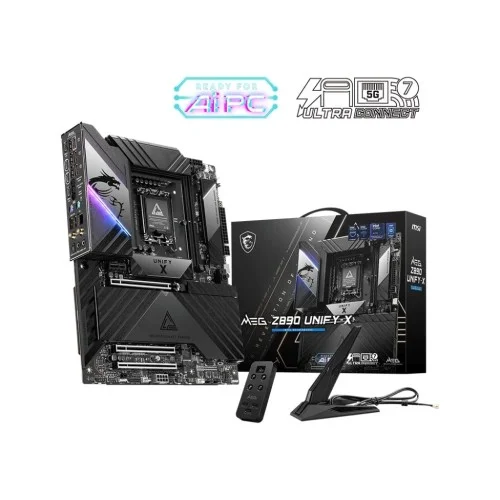

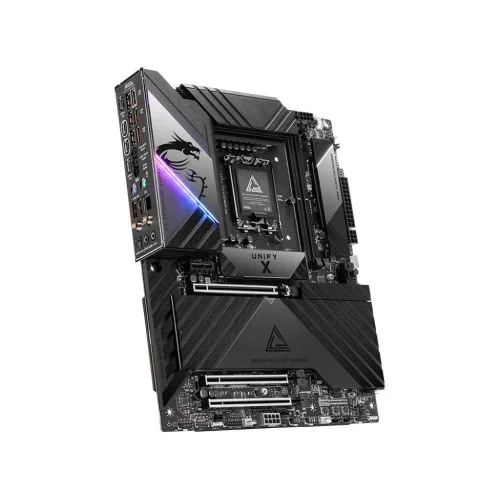

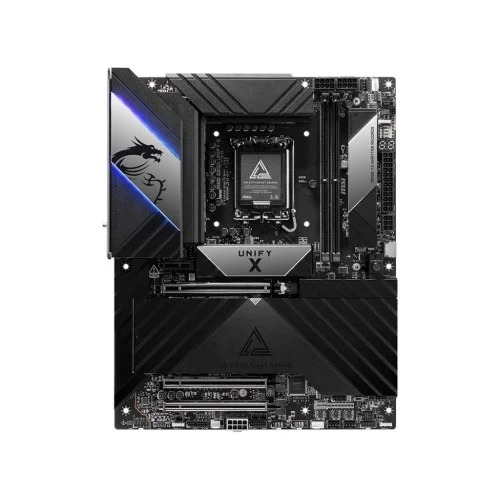

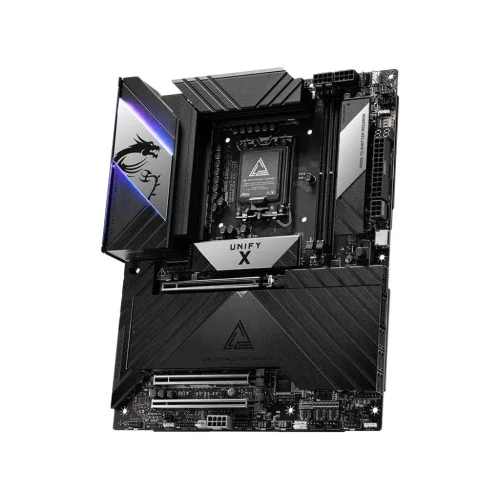

MSI MEG Z890 UNIFY-X DDR5 Motherboard

Save: 4001৳ (4%)

MSI MEG Z890 UNIFY-X DDR5 Motherboard

Stock: In Stock
Model: MEG Z890 UNIFY-X
Product id: 27263

Based on 0 reviews. - Write a review

84,999৳

89,000৳

Ex Tax: 84,999৳

EMI starts at 29,806৳/month. View all 25 banks EMI plans >

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে আমাদের হেল্পলাইন +8801612-266507 নম্বরে কল দিয়ে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

Chipset INTEL Z890
CPU: Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
LAN: 1x Intel® Killer E5000B 5G LAN
Supports Bluetooth® 5.4**, MLO, 4KQAM

Key Features
Wireless	ntel® Killer™ BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM
Basic Information
Memory	2x DDR5 UDIMM, Maximum Memory Capacity 128GB Memory Support 9600 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9600+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM
Storage	6x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From CPU+Chipset) supports up to PCIe 5.0 x4 + PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices M.2_6 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices 6x SATA 6G
Memory
Slots	3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E3 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
Graphics
Graphics	2x Type-C DisplayPort Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
Connector & Ports
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Internal I/O Ports	1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Slow Mode Booting Jumper(JSLOW) 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) V-check point 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
Network & Connectivity
Lan	1x Intel® Killer E5000B 5G LAN
Main Features
Audio	Realtek® ALC4080 Codec 7.1-Channel USB High-Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel
Physical Specification

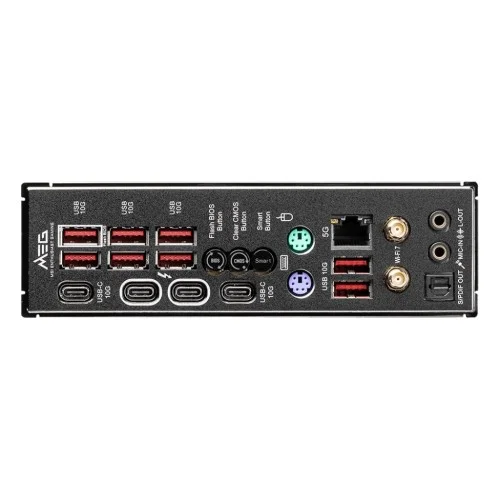

USB	4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 8x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front)

MSI MEG Z890 UNIFY-X DDR5 Motherboard

MSI MEG Z890 UNIFY-X DDR5 Motherboard is a premium motherboard tailored for enthusiasts and professionals seeking superior performance, robust stability, and overclocking potential. Designed for Intel's 13th and 14th Gen processors, this motherboard is a perfect choice for high-performance PC builds, offering cutting-edge technology and sleek design. Built on the Intel Z890 chipset, the MEG UNIFY-X supports the latest DDR5 memory, with speeds exceeding 8000 MHz in overclocking scenarios. Its focus on extreme performance is evident in the dual-DIMM design, reducing signal interference for enhanced memory overclocking potential. This makes it ideal for enthusiasts looking to push their systems to the limit. Additionally, the 19+2 phase power design with high-quality components ensures stable and reliable power delivery for CPUs, even under heavy workloads. The MEG UNIFY-X features an advanced cooling system with extended heatsinks, Frozr cooling technology, and high-conductivity heat pipes. The inclusion of M.2 Shield Frozr covers ensures NVMe SSDs remain cool, maintaining peak performance during intensive operations. Its fan management system, controlled through MSI’s Smart Fan Control, ensures optimal thermal performance with minimal noise. The motherboard is equipped with PCIe 5.0 slots, delivering high-speed connectivity for next-gen GPUs and storage devices. It features multiple M.2 slots for NVMe SSDs, USB 3.2 Gen 2x2 Type-C, and 10G LAN for ultra-fast networking. Additionally, Wi-Fi 7 support ensures seamless wireless connectivity for modern setups. The MEG UNIFY-X boasts a sleek, black design with subtle accents, reflecting its high-performance focus. Unlike RGB-heavy boards, it opts for a minimalist, professional look that complements modern builds. In conclusion, the MSI MEG Z890 UNIFY-X DDR5 Motherboard is a powerhouse designed for overclocking enthusiasts and professionals, delivering premium performance, advanced features, and a refined aesthetic.

Quick Compare

Product Details
Product	MSI MEG Z890 UNIFY-X DDR5 Motherboard	Gigabyte Z890 AI TOP Motherboard	Asus ROG STRIX X870E-E GAMING WIFI DDR5 AMD AM5 ATX Motherboard	GIGABYTE Z890 AORUS MASTER DDR5 Motherboard
Price	~~89,000৳~~ 84,999৳	~~89,000৳~~ 85,999৳	~~90,750৳~~ 80,999৳	~~85,000৳~~ 80,000৳
Model	MEG Z890 UNIFY-X	Z890 AI TOP	ROG STRIX X870E-E GAMING WIFI	Z890 AORUS MASTER
Brand	MSI	GIGABYTE	ASUS	GIGABYTE
Availability	In Stock	In Stock	In Stock	In Stock
Rating	Based on 0 reviews.	Based on 0 reviews.	Based on 0 reviews.	Based on 0 reviews.
Summary	MSI MEG Z890 UNIFY-X DDR5 MotherboardMSI MEG Z890 UNIFY-X DDR5 Motherboard is a premium motherboard tailored for enthusiasts and professionals seeking superior performance, robust stability, and overclocking potential. Designed for Intel's 13th and 14th Gen processors, this motherboard is a perfect choice for high-performance PC builds, offering cutting-edge technology and sleek design. Built on the Intel Z890 chipset, the MEG UNIFY-X supports the latest DDR5 memory, with speeds exceeding 8000 MHz in overclocking scenarios. Its focus on extreme performance is evident in the dual-DIMM design, reducing signal interference for enhanced memory overclocking potential. This makes it ideal for enthusiasts looking to push their systems to the limit. Additionally, the 19+2 phase power design with high-quality components ensures stable and reliable power delivery for CPUs, even under heavy workloads. The MEG UNIFY-X features an advanced cooling system with extended heatsinks, Frozr cooling technology, and high-conductivity heat pipes. The inclusion of M.2 Shield Frozr covers ensures NVMe SSDs remain cool, maintaining peak performance during intensive operations. Its fan management system, controlled through MSI’s Smart Fan Control, ensures optimal thermal performance with minimal noise. The motherboard is equipped with PCIe 5.0 slots, delivering high-speed connectivity for next-gen GPUs and storage devices. It features multiple M.2 slots for NVMe SSDs, USB 3.2 Gen 2x2 Type-C, and 10G LAN for ultra-fast networking. Additionally, Wi-Fi 7 support ensures seamless wireless connectivity for modern setups. The MEG UNIFY-X boasts a sleek, black design with subtle accents, reflecting its high-performance focus. Unlike RGB-heavy boards, it opts for a minimalist, professional look that complements modern builds. In conclusion, the MSI MEG Z890 UNIFY-X DDR5 Motherboard is a powerhouse designed for overclocking enthusiasts and professionals, delivering premium performance, advanced features, and a refined aesthetic...	Gigabyte Z890 AI TOP MotherboardThe Gigabyte Z890 AI TOP Motherboard is a cutting-edge solution designed to meet the demands of modern computing enthusiasts and professionals. Built on the robust Intel® Z890 Express Chipset, this E-ATX motherboard offers exceptional performance, scalability, and connectivity for high-performance PCs. Supporting the latest DDR5 memory modules with speeds up to 9500MT/s (overclocked) and up to 256 GB capacity, the Z890 ensures unmatched multitasking and responsiveness. Its dual-channel memory architecture and support for Extreme Memory Profile (XMP) and ECC Un-buffered DIMMs make it an ideal choice for enthusiasts seeking optimal performance. The board integrates Intel® Thunderbolt™ 5 technology, providing two USB4 Type-C ports with ultra-fast 80Gbps bandwidth and support for high-resolution displays up to 7680x4320@60Hz. Additional display support includes HDMI 2.1 and DisplayPort 2.1 for versatile triple-display configurations. It also features three PCIe slots, including PCIe 5.0, for seamless graphics and NVMe SSD integration. With Wi-Fi 7 BE200 and dual Marvell® AQtion AQC113C 10GbE LAN ports, this motherboard ensures high-speed networking and low-latency connections, making it suitable for gaming, streaming, and data-intensive applications. Its comprehensive storage options include four PCIe M.2 connectors and eight SATA 6Gb/s ports, supporting RAID configurations for both NVMe and SATA drives. Designed with enhanced cooling solutions and advanced I/O options, the Z890 includes multiple fan headers, RGB LED headers, USB 3.2 Gen 2x2 ports, and a noise detection header. Bundled software like Norton® Internet Security adds an extra layer of protection...	Asus ROG STRIX X870E-E GAMING WIFI DDR5 AMD AM5 ATX MotherboardThe Asus ROG STRIX X870E-E GAMING WIFI is a premium ATX motherboard engineered for elite performance, designed to support AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors on the AM5 socket. Powered by the latest AMD X870 chipset, it embraces next-gen technologies including DDR5 memory support up to 8000+ MT/s (OC) and a maximum capacity of 192GB, catering to demanding gamers and content creators alike. This motherboard is built with an emphasis on expandability and connectivity. It boasts four M.2 slots (two supporting PCIe 5.0 x4) and two SATA 6Gb/s ports, offering excellent flexibility for ultra-fast storage configurations. For graphics and expansion cards, users benefit from three PCIe x16 slots, including one PCIe 5.0 slot for top-tier GPU bandwidth. The onboard ROG SupremeFX ALC4080 7.1-channel audio codec, paired with premium capacitors and shielding, ensures immersive, studio-grade audio. Connectivity is a highlight, featuring Wi-Fi 7, Intel 2.5Gb Ethernet, and Bluetooth 5.4 for ultra-fast, low-latency networking. The board includes 12 rear USB ports, including 2 x USB4 Type-C (40Gbps) and 6 x USB 10Gbps, with support for 30W USB fast charging. Front panel I/O is equally robust, with USB 20Gbps and multiple 5Gbps and 2.0 headers. Designed for ease of use, it incorporates numerous Q-Design features like M.2 Q-Latch, Q-LED, and PCIe Q-Release, simplifying installation and troubleshooting. Its comprehensive thermal solution, including heatsink backplates and dedicated fan headers, ensures efficient heat management. Bundled with exclusive ROG and ASUS software, including Aura Sync RGB, AI Overclocking, Fan Xpert 4, and AIDA64, this motherboard delivers outstanding control, customization, and performance for high-end gaming PCs. Backed by a 3-year warranty, the Asus ROG STRIX X870E-E is a top-tier choice for future-proof AMD builds...	GIGABYTE Z890 AORUS MASTER DDR5 MotherboardGIGABYTE Z890 AORUS MASTER DDR5 Motherboard is designed for enthusiasts and professionals who seek top-tier performance from their systems. It supports Intel's latest LGA1851 socket, making it compatible with the Intel® Core™ Ultra processors, ensuring outstanding computing power for demanding tasks. The motherboard's DDR5 memory support extends up to an impressive 9500MT/s in overclocking (O.C.) mode, with a total capacity of 256 GB across its four DIMM slots, making it ideal for users who need high-speed memory for intensive workloads such as gaming, rendering, and data analysis. This board shines in terms of connectivity and expandability. It features multiple M.2 connectors, including PCIe 5.0 and 4.0 support, allowing for fast storage solutions with NVMe SSDs. Additionally, there are SATA ports and RAID configurations (RAID 0, 1, 5, and 10), providing flexibility for various storage setups. For gamers and content creators, the integrated Intel® HD Graphics, coupled with support for Thunderbolt™ 4 and DisplayPort 2.1, offers multi-display setups and high resolutions up to 5120x2880@60 Hz. Its audio system, enhanced by a Realtek® ALC1220 CODEC and ESS ES9118 DAC chip, ensures a premium sound experience, while DTS ® Ultra adds immersive audio for multimedia use. Network performance is also top-notch, thanks to the Marvell® AQtion AQC113C 10GbE LAN chip, and the inclusion of Intel® Wi-Fi 7 ensures faster and more stable wireless connections. With numerous internal headers, PCIe slots, and USB ports (including USB4® Type-C®), the Z890 AORUS MASTER is designed for extreme customization, making it a powerhouse choice for high-performance PC builds...
