Gigabyte B860M D3HP Intel Micro ATX Motherboard

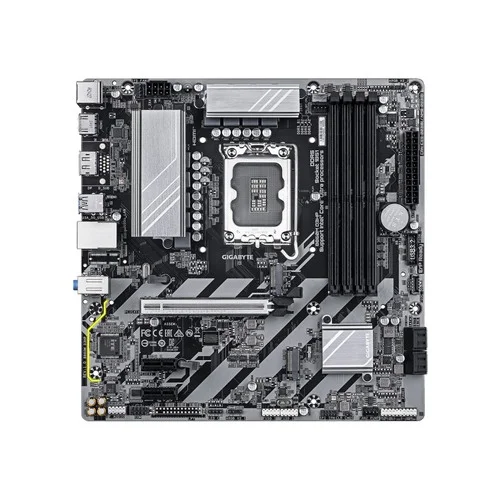

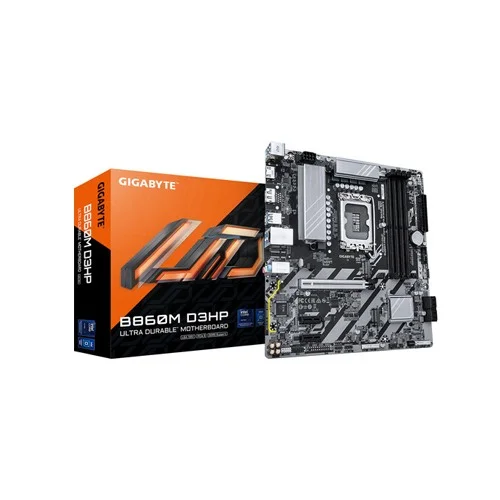

Gigabyte B860M D3HP Motherboard

The Gigabyte B860M D3HP Motherboard is a high-performance Micro-ATX motherboard designed to deliver powerful functionality and versatility for gamers and professionals alike. Built with the Intel B860 chipset, this motherboard ensures seamless compatibility with the latest Intel processors, making it excellent for next-gen computing. Equipped with four 288-pin memory slots, the B860M D3HP supports DDR5 RAM with speeds ranging from 5600 MT/s to an impressive 9066 MT/s. With a maximum memory capacity of up to 256 GB, it offers unmatched speed and efficiency for multitasking, gaming, and demanding applications. Whether you're building a gaming rig or a workstation, this motherboard provides the foundation for superior performance. The B860M D3HP features robust connectivity and expansion options. It includes a PCIe 5.0 x16 slot for high-performance graphics cards and two PCIe 3.0 x1 slots for additional peripherals. Onboard connectivity is further enhanced with various USB options, including support for USB-C and multiple USB-A ports, ensuring fast data transfers and compatibility with a wide range of devices. For display output, the motherboard offers one DisplayPort and one HDMI port, providing flexibility for dual-monitor setups or high-resolution displays. While Bluetooth is not included, its network features can easily support wired connections for stable and reliable internet access. Designed with a compact Micro-ATX form factor, the B860M D3HP measures 9.6 x 9.6 inches (24.4 x 24.4 cm), making it an ideal choice for smaller PC builds without compromising on features or performance. Its straightforward layout allows for easy installation, while its high-quality components ensure durability.

Features of Gigabyte B860M D3HP Intel Micro ATX Motherboard

• Processor Compatibility:

• Supports Intel Core Ultra Processors (LGA1851 socket).

  Intel B860 Express Chipset for improved performance.

• Memory Support:

• 4 x DDR5 DIMM sockets supporting up to 256GB of memory.

  High-speed support up to DDR5 9066 MT/s (OC).

  Dual-channel memory architecture.

  ECC Un-buffered DIMM support (operates in non-ECC mode).

  XMP memory modules support for enhanced overclocking.

• Graphics Support:

• Integrated Intel HD Graphics.

• DisplayPort: Maximum resolution of 3840x2160@144Hz (Supports DisplayPort 2.1).

• HDMI: Maximum resolution of 4096x2160@60Hz (Supports HDMI 2.1 and HDCP 2.3).

• Networking & Connectivity:

• Realtek GbE LAN Chip: Supports speeds of 1 Gbps / 100 Mbps / 10 Mbps.

• Audio System:

• Realtek High Definition Audio Codec.

• Supports 2/4/5.1/7.1-channel audio for immersive sound.

  Expansion Slots:

• CPU Slot: 1 x PCIe 5.0 x16 slot (supports graphics cards and NVMe SSDs).

• Chipset Slots: 2 x PCIe 3.0 x1 slots for additional expansion.

• Storage Options:

• M.2 Slots: 2 x M.2 connectors (PCIe 4.0 x4/x2 SSD support).

• SATA Slots: 4 x SATA 6Gb/s connectors with RAID 0, 1, 5, and 10 support.

• USB Connectivity:

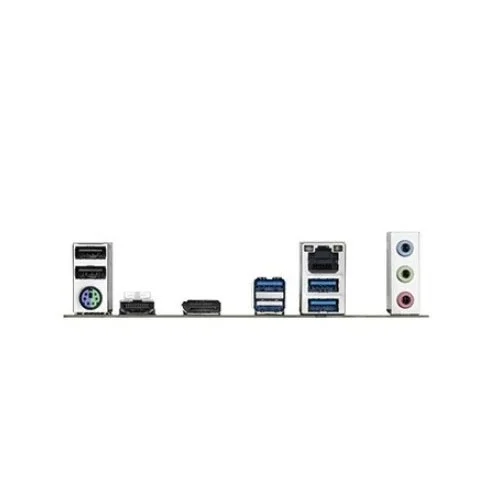

• Back Panel:

• 3 x USB 2.0/1.1 ports.

• 3 x USB 3.2 Gen 1 ports.

• 1 x USB Type-C port with USB 3.2 Gen 1 support (via internal header).

• Internal Headers:

• 2 x USB 3.2 Gen 1 headers.

• 2 x USB 2.0/1.1 headers.

• Special Features:

• GIGABYTE Control Center (GCC): For system tuning and customization.

• Fan Speed & Water Cooling Monitoring: Voltage, temperature, fan speed, and water cooling flow rate detection.

• Fan Fail Warning: Immediate alerts for fan failure.

• Form Factor & Design:

• Micro ATX Form Factor: 24.4cm x 24.4cm, perfect for compact builds.

• Operating System Support:

• Compatible with Windows 11 (64-bit) and Windows 10 (64-bit).

• Warranty:

• Comes with a 3-year warranty.
