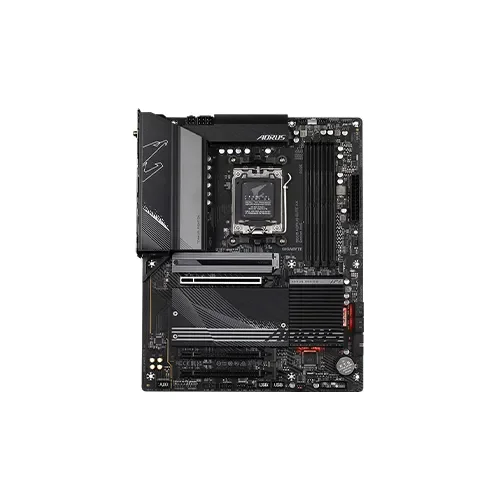

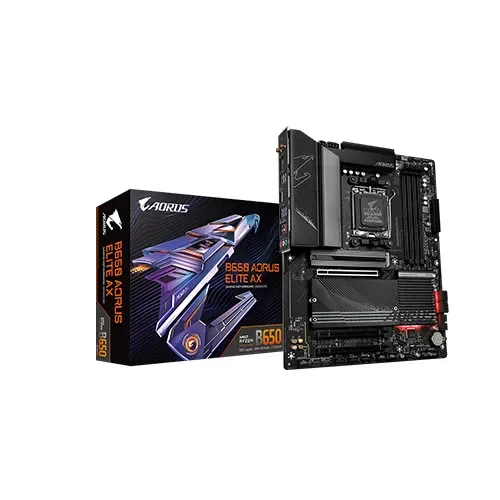

GIGABYTE B650 AORUS ELITE AX AM5 DDR5 AMD WiFi MOTHERBOARD

Name: GIGABYTE B650 AORUS ELITE AX AM5 DDR5 AMD WiFi MOTHERBOARD
Brand: GIGABYTE
Availability: OutOfStock

2-3 Days

GIGABYTE B650 AORUS ELITE AX AM5 DDR5 AMD WiFi MOTHERBOARD

Stock: 2-3 Days
Model: B650 AORUS ELITE AX
Product id: 24081

Based on 0 reviews. - Write a review

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে আমাদের হেল্পলাইন +8801612-266507 নম্বরে কল দিয়ে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

- High Definition Audio
- AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB Rev. 1.0)
- ATX Form Factor; 30.5cm X 24.4cm
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Key Features
Form Factor	ATX
Basic Information
Supported CPU	Ryzen 7000
Chipset	AMD B650
General Information
Special Features	Dual Channel DDR5, Wi-Fi 6E, Bluetooth 5.2
Memory
Ram Type	DDR5

Specifications

Motherboard
Supported CPU	AMD Socket AM5, Support For: AMD Ryzen™ 7000 Series Processors
Chipset	AMD B650
Memory	Support For DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/S Memory Modules 4 X DDR5 DIMM Sockets Supporting Up To 128 GB (32 GB Single DIMM Capacity) Of System Memory Dual Channel Memory Architecture Support For Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules Support For AMD EXtended Profiles For Overclocking (AMD EXPO™) And Extreme Memory Profile (XMP) Memory Module
Graphics	Integrated Graphics Processor: 1 X DisplayPort, Supporting A Maximum Resolution Of 3840x2160@144 Hz * Support For DisplayPort 1.4 Version And HDR. 1 X HDMI Port, Supporting A Maximum Resolution Of 4096x2160@60 Hz * Support For HDMI 2.1 Version And HDCP 2.3. ** Support Native HDMI 2.1 TMDS Compatible Ports.
Slots	1 X PCI Express X16 Slot, Supporting PCIe 4.0 And Running At X16 (PCIEX16) * For Optimum Performance, If Only One PCI Express Graphics Card Is To Be Installed, Be Sure To Install It In The PCIEX16 Slot. Chipset: 2 X PCI Express X16 Slots, Supporting PCIe 3.0 And Running At X1 (PCIEX1_1/2)
Supported Storage	1 X M.2 Connector (Socket 3, M Key, Type 25110/2280 PCIe 5.0* X4/X2 SSD Support) (M2A_CPU) * Actual Support May Vary By CPU. 1 X M.2 Connector (Socket 3, M Key, Type 25110/2280 PCIe 4.0 X4/X2 SSD Support) (M2B_CPU) Chipset: 1 X M.2 Connector (Socket 3, M Key, Type 25110/2280 PCIe 4.0 X4/X2 SSD Support) (M2C_SB) 4 X SATA 6Gb/S Connectors RAID 0, RAID 1, And RAID 10 Support For NVMe SSD Storage Devices RAID 0, RAID 1, And RAID 10 Support For SATA Storage Devices
Bluetooth	BLUETOOTH 5.3
LAN	Realtek 2.5GbE LAN Chip (2.5 Gbps/1 Gbps/100 Mbps)
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-Channel
USB Port	1 X USB Type-C® Port On The Back Panel, With USB 3.2 Gen 2 Support 2 X USB 3.2 Gen 2 Type-A Ports (Red) On The Back Panel CPU + USB 2.0 Hub: 4 X USB 2.0/1.1 Ports On The Back Panel Chipset: 1 X USB Type-C® Port With USB 3.2 Gen 2x2 Support, Available Through The Internal USB Header 3 X USB 3.2 Gen 1 Ports (1 Port On The Back Panel, 2 Ports Available Through The Internal USB Header) 4 X USB 2.0/1.1 Ports Available Through The Internal USB Headers Chipset+USB 3.2 Gen 1 Hub: 4 X USB 3.2 Gen 1 Ports On The Back Panel
Internal I/O Ports	1 X 24-Pin ATX Main Power Connector 1 X 8-Pin ATX 12V Power Connector 1 X 4-Pin ATX 12V Power Connector 1 X CPU Fan Header 1 X Water Cooling CPU Fan Header 3 X System Fan Headers 1 X System Fan/Water Cooling Pump Header 2 X Addressable LED Strip Headers 2 X RGB LED Strip Headers 1 X CPU Cooler LED Strip/RGB LED Strip Header 3 X M.2 Socket 3 Connectors 4 X SATA 6Gb/S Connectors 1 X Front Panel Header 1 X Front Panel Audio Header 1 X USB Type-C® Header, With USB 3.2 Gen 2x2 Support 1 X USB 3.2 Gen 1 Header 2 X USB 2.0/1.1 Headers 1 X Trusted Platform Module Header (For The GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 Module Only) 1 X Reset Button 1 X Reset Jumper 1 X Clear CMOS Jumper

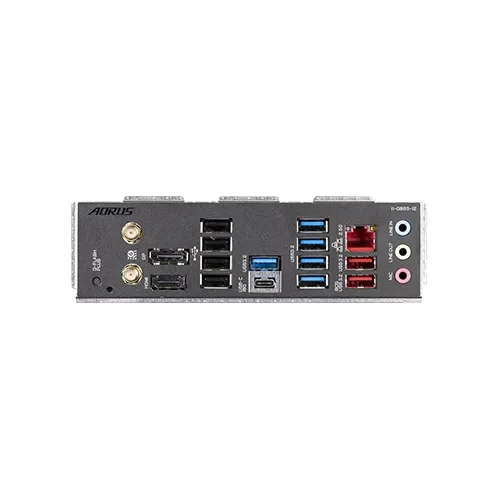

External I/O Ports	1 X Q-Flash Plus Button 2 X SMA Antenna Connectors (2T2R) 1 X DisplayPort 1 X HDMI Port 1 X USB Type-C® Port, With USB 3.2 Gen 2 Support 2 X USB 3.2 Gen 2 Type-A Ports (Red) 5 X USB 3.2 Gen 1 Ports 4 X USB 2.0/1.1 Ports 1 X RJ-45 Port 3 X Audio Jacks
WiFi	AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB Rev. 1.0) WIFI A, B, G, N, Ac, Ax, Supporting 2.4/5/6 GHz Carrier Frequency Bands BLUETOOTH 5.2 Support For 11ax 160MHz Wireless Standard And Up To 2.4 Gbps Data Rate Intel® Wi-Fi 6E AX210 (For PCB Rev. 1.1) WIFI A, B, G, N, Ac, Ax, Supporting 2.4/5/6 GHz Carrier Frequency Bands BLUETOOTH 5.3 Support For 11ax 160MHz Wireless Standard And Up To 2.4 Gbps Data Rate
DIMENSIONS	30.5cm X 24.4cm
Form Factor	ATX Form Factor; 30.5cm X 24.4cm
BIOS	1 X 256 Mbit Flash Use Of Licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Warranty	3 Years

GIGABYTE B650 AORUS ELITE AX AM5 DDR5 AMD WiFi MOTHERBOARD

With The Fast-Moving Technology Changes, GIGABYTE Always Follow The Latest Trends To Provide Customers With Advanced Features And The Latest Technologies. The B650 AORUS ELITE AX Motherboard Is Equipped With An Upgraded Power Solution, 1x PCIe 4.0 X16 Slot, 3x M.2 Slots (1x PCIe 5.0 X4, 2x PCIe 4.0 X4), DDR5 Support And Outstanding Connectivity To Enable Optimised Performance For Gaming. To Ensure Maximum Turbo Boost And Overclocking Performance Of AMD's New Generation CPU, GIGABYTE AORUS Series Motherboard Equip The Best VRM Design Ever Built With The Highest Quality Components. The Latest Wireless Solution 802.11ax Wi-Fi 6E With New Dedicated 6GHz Band, Enables Gigabit Wireless Performance, Provides Smooth Video Streaming, Better Gaming Experience, Few Dropped Connections And Speeds Up To 2.4Gbps. Moreover, Bluetooth 5 Provides 4X Range Over BT 4.2 And With Faster Transmission
