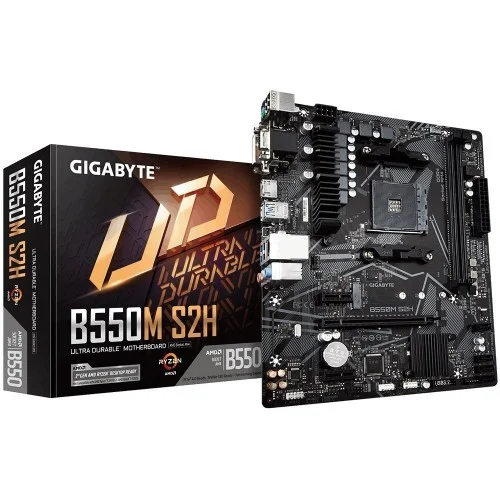

Gigabyte B550M S2H AM4 AMD Micro ATX Motherboard

Out Of Stock

Stock: Out Of Stock
Model: Gigabyte B550M S2H AM4 AMD Micro ATX Motherboard
Product id: 18390

Based on 0 reviews. - Write a review

Add to Cart

Buy Now Ask Question

Add to Wish List Add to Compare

- Supports Up To AMD Ryzen™ 5000 & G-Series Processor
- Dual Ultra-Fast NVMe
- RGB FUSION 2.0 Supports
- High-Quality Audio Capacitors

যেকোনো অনাকাঙ্ক্ষিত ঝামেলা এড়াতে, অনলাইনে অর্ডার করার আগে আমাদের হেল্পলাইনে (+8801612-266507) কল করে পণ্যের স্টক এবং ডেলিভারি সম্পর্কে জেনে নেওয়ার জন্য বিনীত অনুরোধ করা হচ্ছে।

Key Features
Form Factor	mATX
Basic Information
Supported CPU	Ryzen 5000, Ryzen 5000 G, Ryzen 4000 G, Ryzen 3000
Chipset	AMD B550
Memory
Ram Type	DDR4

Gigabyte B550M S2H AM4 AMD Micro ATX Motherboard

The Gigabyte B550M S2H AM4 Micro-ATX Motherboard is designed around the AMD B550 chipset, supporting 3rd Gen AMD Ryzen processors with an AM4 socket. It has two memory slots, supporting up to 64GB of dual-channel RAM, which can run at up to 5100 MHz (O.C.). This motherboard features a micro-ATX form factor, which fits in smaller tower cases. Other integrated features include Realtek Gigabit Ethernet, Realtek 7.1-channel audio support, Smart Fan 5, RGB Fusion 2.0 support, and Gigabyte Q-Flash Plus. High-Speed Gigabit LAN with Automatic Bandwidth Allocation Gigabyte B550M S2H AM4 Realtek 8118 LAN is a high-performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users with the most comprehensive features and the fastest and smoothest Internet experience. HDMI 2.1 for 4K / 60P / 21:9 / HDCP 2.3 Support HDMI 2.1, which is backwards compatible with HDMI 2.0/ 1.4 and offering 48 Gb/s of bandwidth – twice times more than previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), Full HDR and HDCP 2.3 support, to offer the best visual experience for viewers. RGB FUSION 2.0 Gigabyte B550M S2H AM4 Motherboards, RGB Fusion 2.0 is even better with Addressable LEDs. RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips* for their PC build. Already feature filled with colors and patterns, RGB Fusion 2.0 are now upgraded to improve the Addressable LED support. With external Addressable LED strips, where each LED is digitally addressable that users can experience even more patterns, styles, and illuminations. Gigabyte B550M S2H AM4 Motherboards support the external 5V Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.

Gigabyte B550M S2H Feature

Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
Ultra Durable™ PCIe 4.0 Ready x16 Slot
Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connector
GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
HDMI, DVI-D, D-sub Ports for Multiple Display
High-Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Anti-Sulfur Resistors Design

Key Feature

5 Temperature Sensors
3 Fan Pin Headers
All Fan Pin Headers Upgraded to Hybrid Fan Headers
Interoperable Fans and Sensors
Intuitive UI for Fan Control

Specifications:

Basic Information
Supported CPU	AMD Socket AM4, support for 3rd Generation AMD Ryzen processors/ 3rd Generation AMD Ryzen with Radeon Graphics processors
Chipset	AMD B550
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Expansion Slots
PCI	1‎ x PCI Express x16 slot, integrated into the CPU: 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode 2 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2), integrated into the Chipset: Supporting PCIe 3.0 x1 mode
M.2 Socket	1‎ x M.2 connector, integrated into the CPU, supporting Socket 3, M key, type 2242/2260/2280 SSDs: 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
Memory
Type	Dual Channel DDR4 Memory Technology
Slots	2 x DDR4 DIMM
Supported Memory	3rd Gen AMD Ryzen Processors: Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules New Generation AMD Ryzen with Radeon Graphics processors: Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Extreme Memory Profile (XMP) memory modules
Maximum Mamory	64 GB
Graphics
Graphics	Integrated into the 3rd Generation AMD Ryzen with Radeon Graphics processors: D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for up to 3 displays at the same time
Max Shared Memory	16 GB
Connector & Ports
HDMI	1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
USB (s)	Integrated in the CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB headers 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB headers)
LAN Port (s)	Realtek GbE LAN chip (1000 Mbit/100 Mbit)
Supported Storage	1‎ x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280 SSDs: 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10
Audio	Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel
Internal I/O Ports	24-pin ATX main power connector 8-pin ATX 12V power connector CPU fan header system fan headers addressable LED strip header RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors front panel header front panel audio header speaker header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) serial port header chassis intrusion header Clear CMOS jumper
DVI-D (s)	1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
Warranty Information
Manufacturing Warranty	03 years
Others
Special Features	Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Q-Flash Plus Q-Flash Xpress Install
Bundled Software	Windows 10 64-bit
