Gigabyte B550I Aorus PRO AX AMD Motherboard

Name: Gigabyte B550I Aorus PRO AX AMD Motherboard
Brand: GIGABYTE
Availability: OutOfStock

2-3 Days

Gigabyte B550I Aorus PRO AX AMD Motherboard

Stock: 2-3 Days
Model: GIGABYTE B550I
Product id: 19217

Based on 0 reviews. - Write a review

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

• Supports Up to AMD Ryzen 5000 & G-Series Processors • Direct 8 Phases Digital VRM • Ultra Durable PCIe 4.0 Ready x16 Slot • Dual PCIe 4.0/3.0 M.2 with Thermal Guard

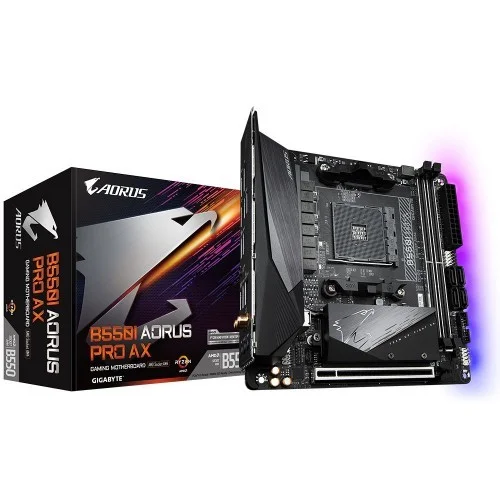

Gigabyte B550I AORUS PRO AX AMD Motherboard

Gigabyte B550I AORUS PRO AX is a mini-ITX motherboard perfect for building a small form factor PC for people who demand higher performance but also care about aesthetics. The compact yet powerful pc delivers amazing performance with the latest CPU, graphic card, and blazing-fast connectivity. It also equips with a comprehensive thermal solution to keep it cool under a heavy workload. Performance is not compromised by its size. It supports AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors. It supports Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs. It features Direct 8 Phases Digital VRM Solution with 90A Smart Power Stage (SPS). It has an advanced Thermal Design with an Extended & Multi-Layered Heatsink and Thermal Baseplate. It comes with Ultra Durable PCIe 4.0 Ready x16 Slot. It has Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard. It features an Onboard Intel WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna. It comes with AMP-UP Audio with ALC1220-VB and Nichicon Audio Capacitors for Rear 120dB SNR. It supports Blazing Fast 2.5GbE LAN with Bandwidth Management. It has been designed with USB 3.2 Gen2 Type-C & DisplayPort + Dual HDMI Support. RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips. It features Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP. Q-Flash Plus Update BIOS without Installing the CPU, Memory, and Graphics Card. It has pre-installed IO Shield for Easy and Quick Installation. It has 3 years of warranty.

Specification

Basic Information
Supported CPU	AMD Socket AM4, support for AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors
Chipset	AMD B550
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Mini-ITX Form Factor; 17.0cm x 17.0cm
Audio	Realtek ALC1220-VB codec * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel
Expansion Slots
PCI	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU
M.2 Socket	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2260/2280 SSDs: - 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs - New Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB) on the back of the motherboard, integrated in the Chipset, supporting Socket 3, M key, type 2260/2280 SSDs: - Supporting SATA and PCIe 3.0 x4/x2 SSDs
Memory
Type	Dual-channel memory architecture
Slots	2 x DDR4 DIMM
Supported Memory	AMD Ryzen 5000 series Processors/ 3rd Gen AMD Ryzen Processors: Support for DDR4 5100(O.C.) / 5000(O.C.) /4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3rd Gen AMD Ryzen with Radeon Graphics processors: Support for DDR4 5300(O.C.)/ 5200(O.C.)/ 5000(O.C.)/ 4866(O.C.)/ 4600(O.C.)/ 4400(O.C.)/ 4000(O.C.)/ 3600(O.C.)/ 3333(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	Up to 64 GB (32 GB single DIMM capacity)
Graphics
Graphics	Integrated in the New Generation AMD Ryzen with Radeon Graphics processors: 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. 2 x HDMI ports, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. Support for up to 3 displays at the same time
Max Shared Memory	16 GB
Connector & Ports
HDMI	2 x HDMI ports, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Display Port (s)	1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.

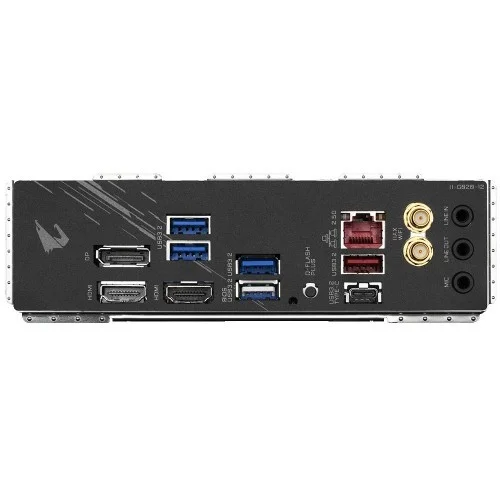

USB (s)	CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 2 x USB 2.0/1.1 ports available through the internal USB header
LAN Port (s)	Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Supported Storage	1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2260/2280 SSDs: - 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs - New Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB) on the back of the motherboard, integrated in the Chipset, supporting Socket 3, M key, type 2260/2280 SSDs: - Supporting SATA and PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors, integrated in the Chipset: - Support for RAID 0, RAID 1, and RAID 10
Audio	3 x audio jacks
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Clear CMOS jumper
TPM (Trusted Platform Module )	1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
Warranty Information
Manufacturing Warranty	3 Years
Others
Special Features	Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Bundled Software	Norton Internet Security (OEM version) XSplit Gamecaster + Broadcaster (12 months license) Realtek 8125 Gaming LAN Bandwidth Control Utility
