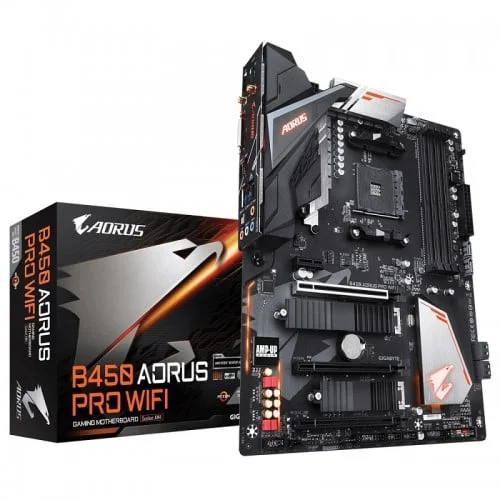

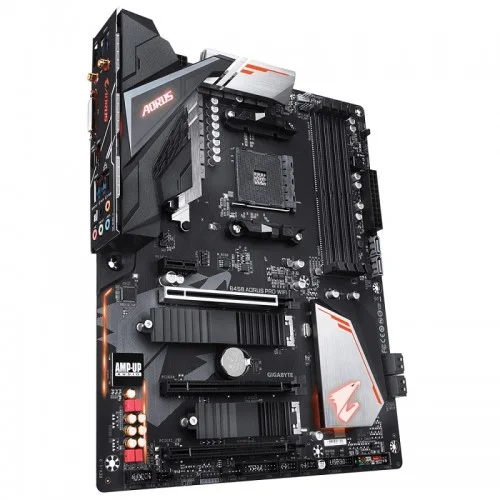

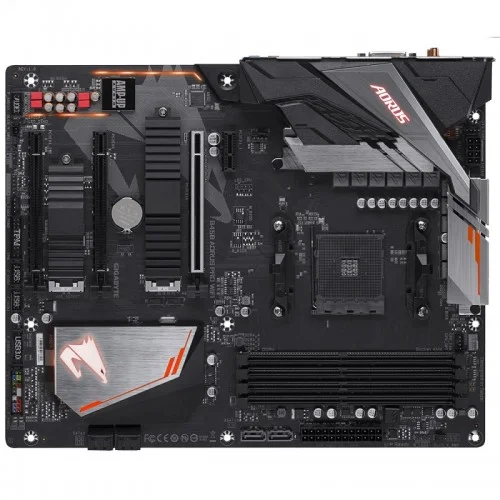

Gigabyte B450 AORUS PRO WIFI AMD ATX Motherboard

Name: Gigabyte B450 AORUS PRO WIFI AMD ATX Motherboard
Brand: GIGABYTE
Availability: OutOfStock

Out Of Stock

Gigabyte B450 AORUS PRO WIFI AMD ATX Motherboard

Stock: Out Of Stock
Model: Gigabyte B450 AORUS PRO WIFI
Product id: 17314

Based on 0 reviews. - Write a review

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে আমাদের হেল্পলাইন +8801612-266507 নম্বরে কল দিয়ে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

• Supports Up to AMD Ryzen 5000 series Processors • Chipset: AMD B450 • Memory: 4 x DDR4, Max 64 GB • 4 x PCI Express slots

Key Features
Form Factor	ATX
Basic Information
Supported CPU	Ryzen 5000, Ryzen 5000 G
Chipset	AMD B450
Memory
Ram Type	DDR4

Gigabyte B450 AORUS PRO WIFI AMD ATX Motherboard

Gigabyte B450 AORUS PRO WIFI ATX AMD AM4 socket ryzen series CPU supported Dual Channel DDR4 maximum 64GB memory motherboard has the capability of Dual Ultra-Fast NVMe PCIe Gen3 M.2 (x4, x2) with Dual Thermal Guards and RGB FUSION with Multi-Zone LED Light Show Design that supports Digital LED & RGB LED Strips. Considering the graphics, it will support HDMI, DVI-D Ports for Multiple Display having maximum resolution of 1920x1200@60 Hz for DVI-D & 4096x2160@60 Hz for HDMI and 1920x1200@60 Hz for DVI-D port. This High Quality ALC1220-VB Enhanced 114dB(Rear) / 110dB(Front) SNR in Microphone with WIMA Audio Capacitors with Integrated I/O Shield of Ultra Durable™ Design motherboard has the facility of Intel® GbE LAN with cFosSpeed Internet Accelerator Software, Smart Fan 5 Features 6 Temperature Sensors and 5 Hybrid Fan Headers with FAN STOP, APP Center Including EasyTune™ and Cloud Station™ Utilities and CEC 2019 Ready for saving Power with a Simple Click.

Purchase Gigabyte B450 AORUS PRO WIFI board with 3 years of warranty facility at best price in Bangladesh. Shop online and place your order at our online shop to have this exclusive AMD gaming mainboard for yor PC.

Specification

Basic Information
Supported CPU	AMD Ryzen 2nd Generation processors, AMD Ryzen with Radeon Vega Graphics processors, AMD Ryzen 1st Generation processors
Chipset	AMD B450
BIOS	2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16 (PCIEX16) * Actual support may vary by CPU. * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the PCIEX1_1 and PCIEX1_2 slots. The PCIEX4 slot operates at up to x2 mode when the PCIEX1_1/PCIEX1_2 slot is populated. The PCIEX4 slot operates at up to x4 mode when both of the PCIEX1_1 and PCIEX1_2 slots are empty. 1 x PCI Express x16 slot, running at x1 (PCIEX1_2) 1 x PCI Express x1 slot (PCIEX1_1) (The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)
M.2 Socket	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x2 SSD support)(M2B_SOCKET)
Memory
Type	Dual Channel DDR4 Memory Technology
Slots	4 x DIMM
Supported Memory	DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Extreme Memory Profile (XMP) memory modulesx`
Maximum Memory	64 GBGigabyte B450 AORUS PRO WIFI AMD ATX Mo
Graphics
Graphics	1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.2. * Actual support may vary by CPU.
Max Shared Memory	16 GB
Connector & Ports
HDMI	1 x HDMI
DVI-D (s)	1 x DVI-D

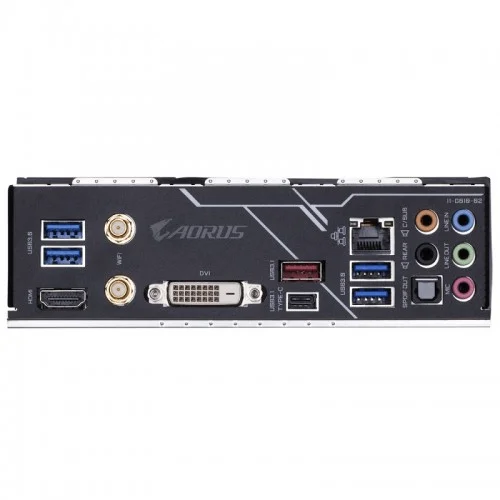

USB (s)	Chipset: 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel 2 x USB 3.1 Gen 1 ports available through the internal USB header 4 x USB 2.0/1.1 ports available through the internal USB headers CPU: 4 x USB 3.1 Gen 1 ports on the back panel
LAN Port (s)	Intel® GbE LAN chip (10/100/1000 Mbit) Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 4.2 Support for 11ac wireless standard and up to 433 Mbps data rate * Actual data rate may vary depending on environment and equipment. 1 x M.2 Socket 1 connector for a wireless communication module (M2_WIFI)
Supported Storage	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x2 SSD support)(M2B_SOCKET) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Audio	Realtek® ALC1220-VB codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 1 x system fan/water cooling pump header 1 x CPU cooler LED strip/RGB LED strip header 2 x digital LED strip headers 2 x digital LED strip power select jumpers 1 x RGB (RGBW) LED strip header 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header 2 x USB 2.0/1.1 headers 1 x USB 3.1 Gen 1 header 1 x Clear CMOS jumper
TPM (Trusted Platform Module )	1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)
Warranty Information
Manufacturing Warranty	03 years
