FiberFox Mini 4S+ Active V-Groov Clade Splicer Machine

Out Of Stock

Stock: Out Of Stock
Model: Model-16355
Product id: 20646

Based on 0 reviews. - Write a review

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে আমাদের হেল্পলাইন +8801612-266507 নম্বরে কল দিয়ে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

• Smallest and the Lightest Active Alignment Fiber Fusion Splicer • SOC Compatible • Stability and Splicing Performance • Waterproof, Anti-shock, Dustproof

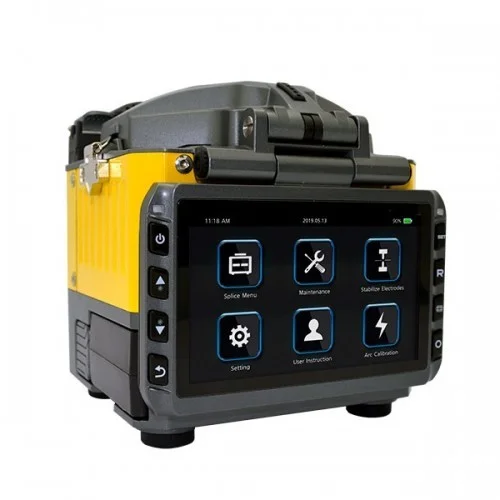

FiberFox Mini 4S+ Active V-Groov Clade Splicer Machine

The FiberFox Mini 4S+ Active V-Groov Clade Splicer Machine is an Active Alignment (DAA: Digitalized Active Alignment) splicer machine. The machine has an average loss of SM(0.02dB) / MM(0.01dB) / DS(0.05dB) / NZDS(0.05dB) / G.657(0.02dB) with a splicing time of 12s average SM / SM 7s Quick mode. It has 78+ 8 user modes, User installable mode : 70+ splicing programs with attenuation range of 0.1dB ~ 20dB (0.1dB step). The fiber types that can be used in this machine are SM(ITU-T G.652, MM(ITU-T G.651), DS(ITU-T G.653), NZDS(ITU-T G.655), IT-G657A, IT-G657B, 0.25mm, 0.9mm, 2.0mm, 2.4mm, 3.0mm, FLAT(indoor cable).The machine can store up to 2000 records. To detect the fiber, the machine uses 2 CCD camera system with Color 4.3" LCD monitor, with Touch Screen (Tempered Glass) monitor which allows you to see all the functions and features clearly. The battery used here typical 200 Cycles (Splice & Heat) / single battery <2 Batteries Standard> with a power supply ability of AC 100-240V input or DC 9~14V. The max wind speed resistance of this splicer machine is 15m/s. The FiberFox Mini 4S+ Active V-Groov Clade Splicer Machine has 1 Year Warranty.
