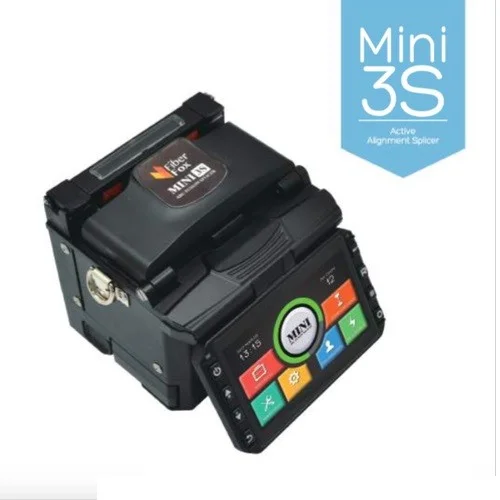

FiberFox Mini 3S Active V-Groov Clade Splicer Machine
Out Of Stock
FiberFox Mini 3S Active V-Groov Clade Splicer Machine
- Stock: Out Of Stock
- Model: FiberFox Mini 3S
- Product id: 20649
* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে আমাদের হেল্পলাইন +8801612-266507 নম্বরে কল দিয়ে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *
- • Weight: 1.1Kg • Splicing Mode: 139 • Average Loss: 0.03 dB • Splicing Time: 8.0 sec
Quick Compare
| Product Details | |||
| Product | FiberFox Mini 3S Active V-Groov Clade Splicer Machine | Tumtec V9 mini Core to Core 6 Splicer Machine | TP-Link TX-6610 1-Port Gigabit GPON Terminal |
| Image |  |
 |
 |
| Price | 155,000৳ | 165,000৳ | 1,299৳ |
| Model | FiberFox Mini 3S | Tumtec V9 mini | Model-16384 |
| Brand | |||
| Availability | Out Of Stock | In Stock | In Stock |
| Rating | Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
| Summary | FiberFox Mini 3S Active V-Groov Clade Splicer Machine The FiberFox Mini 3S Active V-Groov Clade Splicer Machine is an Active Alignment (DAA: Digitalized Active Alignment) splicer machine. The machine has an average loss of SM(0.03dB) / MM(0.02dB) / DS(0.05dB) / NZDS(0.05dB) with a splicing time of SM Mode : 8 Sec. It has 139 (Pre-set: 11 / User set-up: 128) splicing modes with attenuation range of 0.1 ~ 20dB. The fiber types that can be used in this machine are SM(ITU-T G652 & G.657)/ MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655) with a diameter coating of 100 to 3,000um. The average heating time is 18 second and there are 37 (Pre-set: 5 / User set-up: 32) heating modes that are available. The electrode life span in >3,500arcs. The machine can store up to 10,000/ 20,000 images. To detect the fiber, the machine uses Dual CCD camera with LED emitting system and illuminates the area with LED Spot light. The machine has Color 4.3" LCD monitor, with Touch Screen (Tempered Glass) display that allows you to see all the functions and features clearly. The battery used here is Li-ion 11.1V 3000mAh, 200 cycles (Splicing & Heating) with a power supply ability of AC 100-240V input or DC 12.6V 1.8A. The FiberFox Mini 3S Active V-Groov Clade Splicer Machine provides you with 1 Year Warranty. .. | Tumtec V9 mini Core to Core 6 Splicer Machine V9mini uses industrial-grade Euquadrinuclear CPU (main frequency 1.4 GHz)， low power consumption；high performance, has 4.3 inch 480*272 color high-resolution capacitive touch screen， double-click can achieve 500 times the focus amplification effect, three high-power LED lights. At the same time, it has 6800 mA batteries with super endurance, 340 times more typical welding heating time, super durability, self-adaptive discharge, and automatic adjustment according to air pressure and external temperature. V9mini adopts single core alignment, six motors and fully automatic welding procedure, which brings great convenience to user's operation. The display can be adjusted to the optimum angle for easy operation. It runs fast with 3 seconds start-up, 6 seconds welding and 15 seconds heating. It has a 4.3 inch 480*272 color high resolution capacitive touch screen with double-click focusing more than 500 times. Users can realize the optical fiber amplification function by double-clicking the screen. Then they can observe the weld marks on the LCD screen and judge whether the weld status is good or not. The single core fiber core alignment, six motor and fully automatic welding procedure, bring great convenience to the user operation. The Tumtec V9 mini Core to Core 6 Splicer Machine provides you with 1 Year Warranty period. .. | TP-Link TX-6610 1-Port Gigabit GPON Terminal TP-LINK’s TX-6610 is a next-generation Gigabit Passive Optical Network (GPON) terminal, ideal for Fiber to The Home solution. It’s an incredibly robust device allowing users to access high-speed internet connections via its GPON port and share it with a Gigabit Ethernet port. With the transmission rates of up to 2.488Gbps, one GPON port and one Gigabit Ethernet port, the TX-6610 provides high-performance forwarding capabilities to ensure smooth VoIP, HD video streaming experiences. Specification Key Features Data Rate Upstream:1.244Gbps Downstream:2.488Gbps Button 1 Power On/Off Button 1 RESET Button Interface 1 10/100/1000Mbps RJ45 Ports 1 SC/APC Port Network Standard IEEE 802.3, 802.3u, 802.1Q, 802.1p Encryption AES Encryption Packet Filter based on VLAN Others Distance: 0~ 20Km Max GPON Standards: ITU-T G.984.1, G.984.2, G.984.3, G.984.4 Advanced Features: Upstream and Downstream FEC Dynamic Bandwidth Allocation(DBA) support NSR/SR Up to 16 T-CONTs and 256 GEM Ports Optical power detection, Dying Gasp Terminal Silent mechanism 802.3az EEE Energy Conservation Operating System Support Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC® OS, NetWare®, UNIX® or Linux. Power Source Power Mode External Power Supply: 9VDC/0.6A Physical Dimension Dimension 4.0*1.5*4.2 in.（102.7 x 37.9 x 106.9mm） Color Black Manufacturer warranty Warranty 1 Year .. |
