FiberFox Mini 5C+ Core to Core 6 Motors Set Splicer Machine

Out Of Stock

Stock: Out Of Stock
Model: FiberFox Mini 5C+
Product id: 20648

Based on 0 reviews. - Write a review

270,000৳

Ex Tax: 270,000৳

EMI starts at 94,680৳/month. View all 25 banks EMI plans >

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে আমাদের হেল্পলাইন +8801612-266507 নম্বরে কল দিয়ে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

• Heating Time: 15sec with 60mm sleeve • Universial Holder • LED Injection System • The Fast Splicing Time

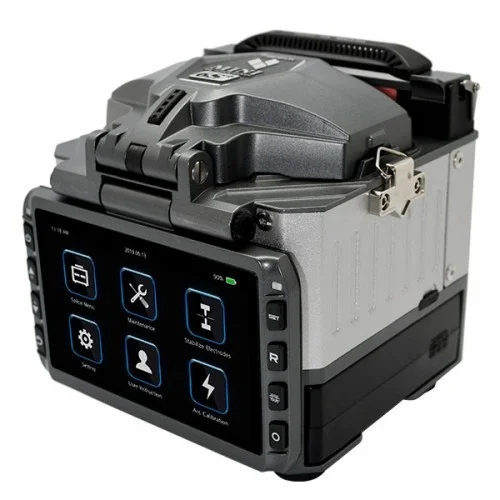

FiberFox Mini 5C+ Core to Core 6 Motors Set Splicer Machine

The FiberFox Mini 5C+ Core to Core 6 Motors Set Splicer Machine uses the Core Alignment DCID (Digitized Core Image Detecting) System method for splicing. The machine has an average loss of SM(0.02dB) / MM(0.01dB) / DS(0.04dB) / NZDS(0.04dB) / G.657(0.02dB). It has Factory Installed : 12 user modes, User installable mode : 128 splicing programs. The fiber types that can be used in this machine are SM(ITU-T G.652, MM(ITU-T G.651), DS(ITU-T G.653), NZDS(ITU-T G.655), IT-G657A, IT-G657B, 0.25mm, 0.9mm, 2.0mm, 2.4mm, 3.0mm, FLAT(indoor cable). The average heating time is Typical 10s (60mm sleeve) and 5 Sec (Micro Sleeve). There are 36 (Factory installed mode : 4, User installable mode : 32) heating modes that are available. The battery used here typical 200 Cycles (Splice & Heat) / single battery, 2 Batteries Standard with a power supply ability of AC 100-240V input or DC 9~14V. The max wind speed resistance of this splicer machine is 15m/s. The FiberFox Mini 5C+ Core to Core 6 Motors Set Splicer Machine has 1 Year Warranty.
