Biostar B450GT3 AMD B450 Motherboard
Out Of Stock
Biostar B450GT3 AMD B450 Motherboard
- Stock: Out Of Stock
- Model: B450GT3
- Product id: 24205
* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *
- By CPU Model Supports DX12 Supports HDCP
- Realtek RTL8118AS - 10/100/1000Mb/S Controller
- 24.4cm X 24.4cm ( W X L )
- 1 X USB 3.2 Gen1 Header(5Gb/S)
Specifications
| Motherboard | |
| Supported CPU | Supports AMD AM4 Socket For 3rd, 2nd And 1st Gen Ryzen/2nd And 1st Gen Ryzen With Radeon Vega. Graphics/Athlon With Radeon Vega Graphics Processors |
| Chipset | AMD B450 |
| Memory | Support Dual Channel DDR4 1866/2133/2400/2666/2933/3200(OC) MHz Max. Supports Up To 64GB Memory. Each DIMM Supports Non-ECC 8/16 GB DDR4 Module |
| Graphics | By CPU Model Supports DX12 Supports HDCP |
| Slots | 1 X PCI-E 3.0 X16 Slot 1 X PCI-E 2.0 X16 Slot(X4) 2 X PCI-E 2.0 X1 Slots |
| Supported Storage | 6 X SATA III Connectors (6Gb/S) : Supports AHCI & RAID 0, 1, 10 1 X M.2 (M Key) 32Gb/S Connector: Support PCI-E (32Gb/S) & SATA III (6Gb/S) SSD * M.2 (32Gb/S) : The Bandwidth Is Depended On CPU, Ryzen Is 32Gb/S ; APU & CPU Is 16Gb/S. * When PCIE-M2_1 Slot Is Occupied, The SATAIII_1 / SATAIII_2 Connector Will Be Disabled. |
| LAN | Realtek RTL8118AS - 10/100/1000Mb/S Controller |
| Audio | Realtek ALC1150 7.1-Channel Audio Support HD Audio Support SPDIF_out |
| USB Port | 1 X USB 3.2 Gen2 Type-C Port(10Gb/S) (1 On Rear I/O) 1 X USB 3.2 Gen2 Type-A Port(10Gb/S) (1 On Rear I/O) 4 X USB 3.2 Gen1 Ports (5Gb/S) (2 On Rear I/Os And 2 Via Internal Headers) 6 X USB 2.0 Ports (2 On Rear I/Os And 4 Via Internal Headers) |
| Internal I/O Ports | 1 X USB 3.2 Gen1 Header(5Gb/S) (Each Header Supports 2 USB 3.2 Gen1 Ports) 2 X USB 2.0 Header (Each Header Supports 2 USB 2.0 Ports) 6 X SATA III Connector (6Gb/S) 1 X Front Audio Header 1 X Front Panel Header 1 X S/PDIF-Out Header 1 X CPU Fan Connector 2 X System Fan Connector 2 X 5050 LED Header 1 X 8-Pin Power Connector 1 X 24-Pin Power Connector 1 X Clear CMOS Header 1 X COM Port Header |

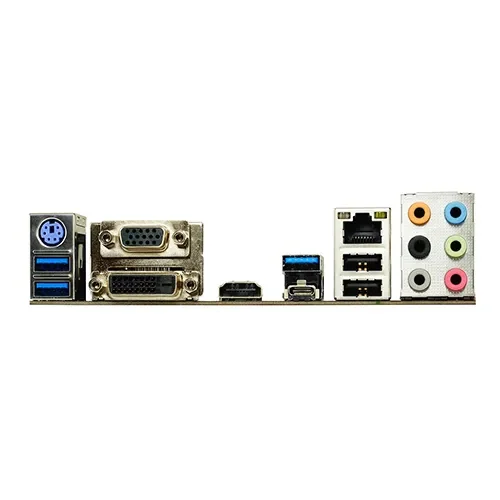

| External I/O Ports | 1 X PS/2 Keyboard/Mouse 1 X USB 3.2 Gen2 (10Gb/S) Type-C Port 1 X USB 3.2 Gen2 (10Gb/S) Type-A Port 2 X USB 3.2 Gen1 (5Gb/S) Ports 2 X USB 2.0 Ports 1 X HDMI Connector ,Resolution Up To 4096 X 2160@30Hz 1 X DVI-D Connector ,Resolution Up To 1920 X 1200 @60Hz 1 X VGA Port ,Resolution Up To 1920 X 1200 @60Hz 1 X LAN Port 6 X Audio Jacks |
| DIMENSIONS | 24.4cm X 24.4cm ( W X L ) |
| Form Factor | Micro ATX Form Factor |
Biostar B450GT3 Motherboard
Biostar B450GT3 Motherboard With AMD B450 Is The High-End Chipset For Overclockers And Tweakers Who Need Robust Platforms. This Chip Provides The Ultimate Low-Level Control To Its Users And Delivers Ultimate Graphics Card Bandwidth. A Combination Of Exclusive Hardware & Software Design Including "Ground-Isolation Circuit Design", "An Independent Audio Power", And "A Built=On-Board Amplifier", With All These Hardware Features Gives You The Best Audio Quality And Performance. As For Software, We Offer You A Free Bundle Utility "Multi-Channel Calibration" Which Normally You'll Find In High-Level Sound Systems; This Feature Allows You To Autodetect Your Location; With A User-Friendly Interface, You Can Easily Adjust The Volume Of Every Speaker To Make A Well-Balanced Surround Sound. And Of Course, The Built-On-Board Amplifier Always Gives You A Super Powerful Sound Comparing To Other Motherboards. Provides High-Quality Sound With Minimal Loss Of Audio Fidelity. DirectX 12 Introduces The Next Version Of Direct3D, The Graphics API At The Heart Of DirectX. Direct3D. Is One Of The Most Critical Pieces Of A Game Or The Game Engine And We've Redesigned It To Be Faster And More Efficient Than Ever Before. Direct3D 12 Enables Richer Scenes, More Objects, And Full Utilization Of Modern GPU Hardware. Integrated HDMI With HDCP Onboard HDMI Connector Allows Full Video & Audio Support. It Has Industry-Leading High Definition Video Quality USB 3.2 Gen2 Offers Up To Double The Transfer Speed Of USB 3.2 Gen1 At 10 Gbps That Allows For Much Higher Data Transfer Rates And More Efficient Data Transfer. And The Type-C Connector Is Reversible So It's Easier For The Plugin. USB 3.2 Gen1 Type-A USB 3.2 Gen1 Delivers Compelling Performance Boosts And Can Be Used To Connect Multiple Devices Without Worrying About Compatibility. It Is Capable Of Data Transfer Speeds Up To 5Gbps And Backwards Compatible With All Existing USB Products. USB 3.2 Gen2 Is A New Standard Called SuperSpeed USB 10Gbps To Address Increased Performance And Improve Data Transmission Speed. It Is For A Max Data Transfer Rate Of 10Gbps And Creates The Best Possible Connection Between Your Devices. Iron Slot Protection The Exclusive Iron Slot Protection Can Reinforce PCI-E X16 Slots To Handle Heavier Graphics Cards, Prevent Bending, And Extend The Longevity Of The Slot, Making The New-Gen RACING Series Much More Robust. Dual BIOS Technology Offers A Backup BIOS Chip To Take Over The Failed Main BIOS And Recover The System Automatically Without Factory Repair.
Quick Compare
| Product Details | ||||
| Product | Biostar B450GT3 AMD B450 Motherboard | Esonic H61FHL Motherboard | Starex ST-H61 Motherboard | HUANANZHI H61 M.2 Motherboard |
| Image | |
|
|
|
| Price | |
|
|
|
| Model | B450GT3 | Esonic H61FHL | Starex ST-H61 | HUANANZHI H61 |
| Brand | BIOSTAR | Esonic | STAREX | HUANANZHI |
| Availability | Out Of Stock | In Stock | In Stock | In Stock |
| Rating | Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
| Summary | Specifications Motherboard Supported CPU Supports AMD AM4 Socket For 3rd, 2nd And 1st Gen Ryzen/2nd And 1st Gen Ryzen With Radeon Vega. Graphics/Athlon With Radeon Vega Graphics Processors Chipset AMD B450 Memory Support Dual Channel DDR4 1866/2133/2400/2666/2933/3200(OC) MHz Max. Supports Up To 64GB Memory. Each DIMM Supports Non-ECC 8/16 GB DDR4 Module Graphics By CPU Model Supports DX12 Supports HDCP Slots 1 X PCI-E 3.0 X16 Slot 1 X PCI-E 2.0 X16 Slot(X4) 2 X PCI-E 2.0 X1 Slots Supported Storage 6 X SATA III Connectors (6Gb/S) : Supports AHCI & RAID 0, 1, 10 1 X M.2 (M Key) 32Gb/S Connector: Support PCI-E (32Gb/S) & SATA III (6Gb/S) SSD * M.2 (32Gb/S) : The Bandwidth Is Depended On CPU, Ryzen Is 32Gb/S ; APU & CPU Is 16Gb/S. * When PCIE-M2_1 Slot Is Occupied, The SATAIII_1 / SATAIII_2 Connector Will Be Disabled. LAN Realtek RTL8118AS - 10/100/1000Mb/S Controller Audio Realtek ALC1150 7.1-Channel Audio Support HD Audio Support SPDIF_out USB Port 1 X USB 3.2 Gen2 Type-C Port(10Gb/S) (1 On Rear I/O) 1 X USB 3.2 Gen2 Type-A Port(10Gb/S) (1 On Rear I/O) 4 X USB 3.2 Gen1 Ports (5Gb/S) (2 On Rear I/Os And 2 Via Internal Headers) 6 X USB 2.0 Ports (2 On Rear I/Os And 4 Via Internal Headers) Internal I/O Ports 1 X USB 3.2 Gen1 Header(5Gb/S) (Each Header Supports 2 USB 3.2 Gen1 Ports) 2 X USB 2.0 Header (Each Header Supports 2 USB 2.0 Ports) 6 X SATA III Connector (6Gb/S) 1 X Front Audio Header 1 X Front Panel Header 1 X S/PDIF-Out Header 1 X CPU Fan Connector 2 X System Fan Connector 2 X 5050 LED Header 1 X 8-Pin Power Connector 1 X 24-Pin Power Connector 1 X Clear CMOS Header 1 X COM Port Header External I/O Ports 1 X PS/2 Keyboard/Mouse 1 X USB 3.2 Gen2 (10Gb/S) Type-C Port 1 X USB 3.2 Gen2 (10Gb/S) Type-A Port 2 X USB 3.2 Gen1 (5Gb/S) Ports 2 X USB 2.0 Ports 1 X HDMI Connector ,Resolution Up To 4096 X 2160@30Hz 1 X DVI-D Connector ,Resolution Up To 1920 X 1200 @60Hz 1 X VGA Port ,Resolution Up To 1920 X 1200 @60Hz 1 X LAN Port 6 X Audio Jacks DIMENSIONS 24.4cm X 24.4cm ( W X L ) Form Factor Micro ATX Form Factor Biostar B450GT3 Motherboard Biostar B450GT3 Motherboard With AMD B450 Is The High-End Chipset For Overclockers And Tweakers Who Need Robust Platforms. This Chip Provides The Ultimate Low-Level Control To Its Users And Delivers Ultimate Graphics Card Bandwidth. A Combination Of Exclusive Hardware & Software Design Including "Ground-Isolation Circuit Design", "An Independent Audio Power", And "A Built=On-Board Amplifier", With All These Hardware Features Gives You The Best Audio Quality And Performance. As For Software, We Offer You A Free Bundle Utility "Multi-Channel Calibration" Which Normally You'll Find In High-Level Sound Systems; This Feature Allows You To Autodetect Your Location; With A User-Friendly Interface, You Can Easily Adjust The Volume Of Every Speaker To Make A Well-Balanced Surround Sound. And Of Course, The Built-On-Board Amplifier Always Gives You A Super Powerful Sound Comparing To Other Motherboards. Provides High-Quality Sound With Minimal Loss Of Audio Fidelity. DirectX 12 Introduces The Next Version Of Direct3D, The Graphics API At The Heart Of DirectX. Direct3D. Is One Of The Most Critical Pieces Of A Game Or The Game Engine And We've Redesigned It To Be Faster And More Efficient Than Ever Before. Direct3D 12 Enables Richer Scenes, More Objects, And Full Utilization Of Modern GPU Hardware. Integrated HDMI With HDCP Onboard HDMI Connector Allows Full Video & Audio Support. It Has Industry-Leading High Definition Video Quality USB 3.2 Gen2 Offers Up To Double The Transfer Speed Of USB 3.2 Gen1 At 10 Gbps That Allows For Much Higher Data Transfer Rates And More Efficient Data Transfer. And The Type-C Connector Is Reversible So It's Easier For The Plugin. USB 3.2 Gen1 Type-A USB 3.2 Gen1 Delivers Compelling Performance Boosts And Can Be Used To Connect Multiple Devices Without Worrying About Compatibility. It Is Capable Of Data Transfer Speeds Up To 5Gbps And Backwards Compatible With All Existing USB Products. USB 3.2 Gen2 Is A New Standard Called SuperSpeed USB 10Gbps To Address Increased Performance And Improve Data Transmission Speed. It Is For A Max Data Transfer Rate Of 10Gbps And Creates The Best Possible Connection Between Your Devices. Iron Slot Protection The Exclusive Iron Slot Protection Can Reinforce PCI-E X16 Slots To Handle Heavier Graphics Cards, Prevent Bending, And Extend The Longevity Of The Slot, Making The New-Gen RACING Series Much More Robust. Dual BIOS Technology Offers A Backup BIOS Chip To Take Over The Failed Main BIOS And Recover The System Automatically Without Factory Repair. .. | Specifications BASIC INFORMATION Brand Esonic H61-FEL MOTHERBOARD BASIC INFO Supported CPU Intel Core ( i3,i5,i7) 2nd & 3rd Gen || Dual Core 2nd and 3rd Gen Chipset H61 Form Factor ATX MOTHERBOARD MEMORY INFO Slots 2 x DDR3 DIMM Slot Supported Memory Supports DDR3 1333 / 1600 Maximum Memory 16 GB CONNECTOR & PORTS (MB) LAN Port (s) LAN 10/100M Ethernet Supported Storage Serial ATA WARRANTY INFORMATION Warranty 1 Year Esonic H61FHL Motherboard When You want to build a desktop computer at cheap prices like 10000 takas or less you need to consider a motherboard that price range from 3800-4000 Taka. Here You Get an Esonic H61-FEL Motherboard with 1 Year Replacement Warranty. .. | Specification General Brand STAREX Model STAREX H61 Specification Chipset Intel H61 Data Rate DDR3 Number of Memory Slots 2 Motherboard Memory Technology DDR3 Supported Starex H61 Support for Intel@ Core™ i7 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® Processors Processors in the LGA1155 package L3 cache varies with CPU Front Side Bus FSB Support FSB 1333/1600 Max Memory Support Dual Channel DDR3 1333/1600 MHz Memory, 2 x DDR3 DIMM Memory Slot, Maximum Support up to 8 GB Memory Onboard Video Intel Extreme Graphics, On Board Graphic Max Onboard Audio HD Audio Onboard Lan 10/100 Controller .. | Specification Mainboard HUANANZHI H61 Platform Intel® H61, LGA1155 Memory 2 x DIMM, Max. 16GB, DDR3 1600/1333 MHz, Supports non-ECC Memory, Dual Channel Memory Architecture Graphic Integrated Graphics Processor 1 x VGA port 1 x DVI-I port 1 x HDMI port Supports NVIDIA® and AMD® Graphics Cards Audio Realtek® ALC662 5.1-Channel, High Definition Audio CODEC LAN Realtek® RTL8105, 1 x 10/100 Mbit/s LAN Controller(s) Expansion Slots 1 x PCIe 3.0 x16 1 x PCIe x1 Storage 4 x SATA2.0 (3GB/s) port(s) Internal I/O Ports 1 x USB 2.0 connector support additional 2 x USB 2.0 port(s) 1 x CPU Fan connector(s) (1 x 4-pin) 1 x Chassis Fan connector(s) (1 x 4-pin) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) Back I/O Ports 1 x PS/2 Keyboard and Mouse port 1 x LAN (RJ45) port(s) 6 x USB 2.0 3 x Audio jack(s) Form Factor Micro ATX Form Factor; 21.5cm x 16.8cm Packing list 1 x I/O Shield, 1 x SATA Cable, 1 x Manual .. |
|
|
|
|
|
|
