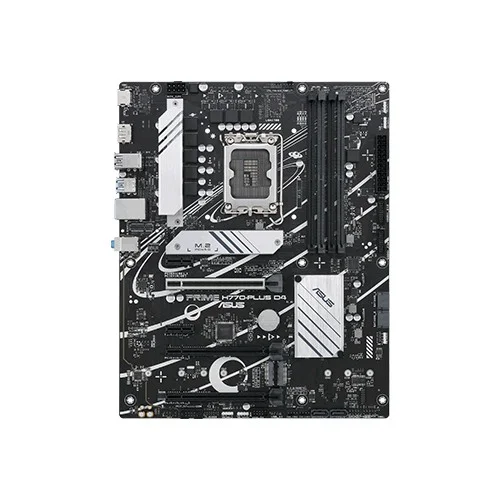

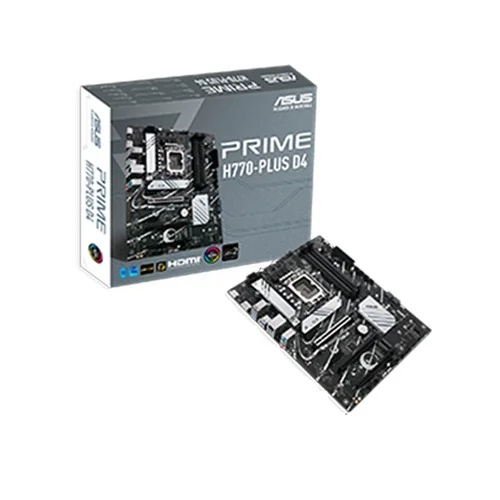

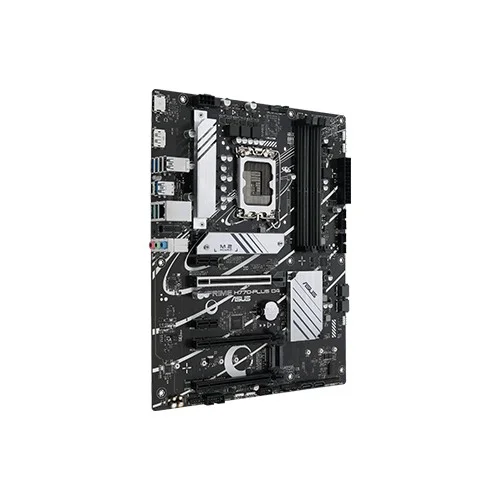

ASUS PRIME H770-PLUS D4 14th Gen ATX Motherboard
- Stock: Out Of Stock
- Model: PRIME H770-PLUS D4
- Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
- Supported Memory: 4 x DIMM, Max. 128GB, DDR4 5066(OC)
- Graphics Output: 1 x DisplayPort, 1 x HDMI
- Features: 1 x Realtek 2.5Gb Ethernet
Specification
| Supported CPU | Intel Socket LGA1700 for 14th, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors* Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| Chipset | Intel H770 Chipset |
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers |
| PCI | Intel 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot |
| Type | DDR4 |
| Slots | 4 x DIMM |
| Supported Memory | DDR4 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem |
| Maximum Memory | Max. 128GB |
| Graphics | x DisplayPort** 1 x HDMI® port*** ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI® 2.1. |
| HDMI | 1 x HDMI |
| Display Port (s) | 1 x DisplayPort |
| USB (s) | Rear USB (Total 8 ports) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®) 3 x USB 3.2 Gen 1 ports (3 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports |
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet |
| Wireless Communication module | Vertical M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module is sold separately. |
| Supported Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® H770 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
| RAID | Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10 |
| Audio | 3 x Audio jacks |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 2 x Aura RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ (USB4®) header |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) |
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool Aura Sync - Aura RGB headers - Addressable Gen 2 headers |
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving AI Suite 3 - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Manufacturing Warranty | 3 years |
ASUS PRIME H770-PLUS D4 14th Gen ATX Motherboard
The ASUS PRIME H770-PLUS D4 Motherboard is a high-performance and reliable motherboard designed for 14th, 13th Gen Intel Core, 12th Gen Intel Core, Pentium Gold, and Celeron processors. It features an Intel H770 chipset and supports a maximum of 128GB DDR4 memory with speeds up to 5066MHz (OC). The motherboard provides excellent graphics capabilities with a DisplayPort and HDMI port, supporting 4K resolution at 60Hz. It offers expansion slots, including a PCIe 5.0 x16 slot and two PCIe 4.0 x16 slots, as well as multiple storage options with three M.2 slots and four SATA 6Gb/s ports. Networking is enhanced with a Realtek 2.5Gb Ethernet port, and the motherboard supports USB 3.2 Gen 2 and Gen 1 ports for high-speed data transfer. The ASUS PRIME H770-PLUS D4 also features advanced audio technologies, including Realtek 7.1 Surround Sound High Definition Audio CODEC. With its robust design and a range of convenient features, this motherboard is an ideal choice for building a powerful and versatile PC system.
