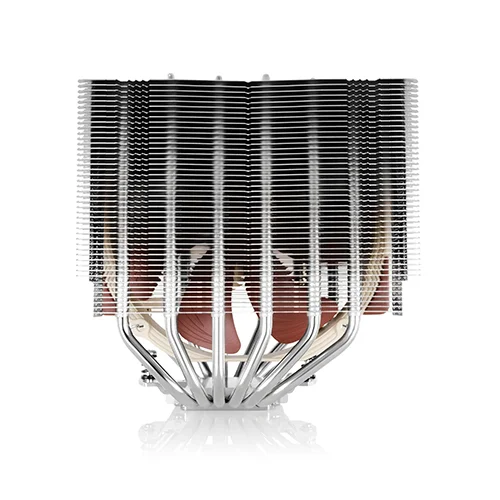

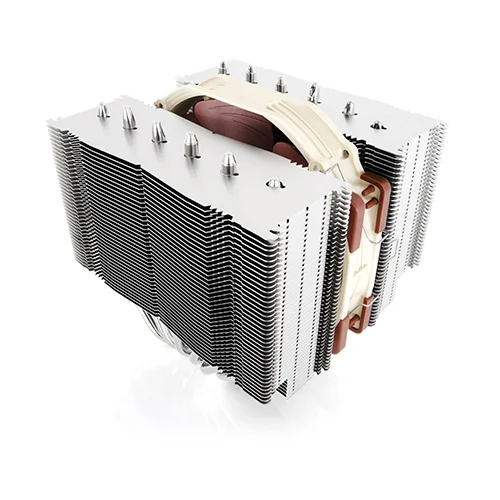

Noctua NH-D15S Premium Dual-Tower CPU Cooler with NF-A15 PWM 140mm Fan
Tailored to provide superior RAM and PCIe compatibility, the
Noctua NH-D15S Premium is an asymmetrical single fan version of
Noctua’s award-winning flagship model, the NH-D15. Thanks to its asymmetrical design, the NH-D15S clears the top PCIe slot on most µATX and ATX motherboards. At the same time, the single fan setup and recessed lower fins guarantee 100% RAM compatibility with memory modules of up to 65mm height. Users who have sufficient room can also upgrade the cooler with either a 120mm or round 140mm fan on the front fin stack for further improved performance in dual fan mode. Topped off with the trusted, pro-grade SecuFirm2 multi-socket mounting system,
Noctua’s proven NT-H1 thermal compound and full 6 years manufacturer’s warranty, the
Noctua NH-D15S Premium forms a complete premium quality solution that combines dual tower efficiency with excellent compatibility and flexible upgrade options.
Specifications:
| Key Features |
| Type |
Noctua NH-D15S Premium |
| Fan Speed |
Max. rotational speed (+/- 10%) : 1500 RPM
Max. rotational speed with L.N.A. (+/- 10%) : 1200 RPM
Min. rotational speed (PWM, +/-20%) : 300 RPM |
| Fan Airflow |
Max. airflow : 140,2 m³/h
Max. airflow with L.N.A. : 115,5 m³/h |
| Noise |
Max. acoustical noise : 24,6 dB(A)
Max. acoustical noise with L.N.A. : 19,2 dB(A) |
| Material |
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
| Physical Specification |
| Dimension |
Height (without fan) : 160 mm
Width (without fan) : 150 mm
Depth (without fan) : 135 mm
Height (with fan) : 160 mm
Width (with fan) : 150 mm
Depth (with fan) : 135 mm |
| Weight |
Weight (without fan) : 980 g
Weight (with fan) : 1150 g |
| Supported Sockets |
| Intel |
LGA2066, LGA2011-0 & LGA2011-3, LGA1156, LGA1155, LGA1151, LGA1150 |
| AMD |
AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+, AM4 |
| Warranty Information |
| Warranty |
06 Years Warranty |
Noctua NH-D15S Premium Dual-Tower Key Features:
- Model: NH-D15S chromax.black
- High-compatibility version of NH-D15 with chromax.black design
- Asymmetrical layout for better PCIe compatibility
- PWM support & Low-Noise Adapters
- NF-A15 140mm fan
Noctua NH-D15S Premium Dual-Tower CPU Cooler view:
m3/h (Max.), 115.5 m3/h (Max. with L.N.A), Fan Rated Voltage - 12 V, Heat Sink Material - Copper, Power Input - 1.56 W, MTTF - 150.000 Hours, Supported
CPU Socket Brand - Intel & AMD, Supported Socket - Intel LGA1200/ LGA1156/ LGA1155/ LGA1151/ LGA1150/ LGA1700 (included since Q4 2021/ older coolers require NM-i17xx-MP83)/ LGA2066/ LGA2011-0 & LGA2011-3 (Square ILM), AMD AM2/ AM2+/ AM3/ AM3+/ FM1/ FM2/ FM2+ (backplate required)/ AM4/ AM5, Body Material - Aluminium (Cooling Fans), Soldered Joints & Nickel Plating, Body Color - Black, Weight (Kg) - 1.150 Kg, Others - Fan Speed: 1200 - 1500 RPM, Height (without fan): 160 mm, Width (without fan): 150 mm, Depth (without fan): 135 mm, Height (with fan): 160 mm, Width (with fan): 150 mm, Depth (with fan): 135 mm. Fan compatibility: 140 x 150 x 25 (with 120mm mounting holes), 140 x140 x 25 (with 120mm mounting holes), 120 x 120 x 25. Max. acoustical noise with L.N.A.: 19,2 dB(A)
Noctua NH-D15S Premium Dual-Tower CPU Cooler Overview:
- Fan Speed - 1500 RPM
- Cooler Type - Air CPU Cooler
- Supported Socket - Intel LGA1200/ LGA1156/ LGA1155/ LGA1151/ LGA1150/ LGA1700
- AMD AM2/ AM2+/ AM3/ AM3+/ FM1/ FM2/ FM2+ (backplate required)/ AM4/ AM5
- Fan Size (Height) - 140mm
NF-A15 PWM 140mm Fan Review:
Conclusions: Performance: What can I say….
Very nice performance compared to other models from other brands providing the same performance but with higher noise level and I believe this model is suitable for installation as a fan cooling CPU cooler and as a fan to be installed on case fan slots.
1. Frame: 140mm plastic round frame painted in light pink with 150mm width for better performance based on
Noctua’s AAO (Advanced Acoustic Optimisation) technology. Of course, the fan frame offers the patented Stepped Inlet Design and Inner Surface Microstructures for decreasing the noise level.
2. Propeller: 7 blades of the painted in brown propeller with low angle offering leading to increased performance and focusing the air while decreasing the noise level from the air passing through the propeller.
3. Bearing: the patented bearing offering nice and smooth operation of the fan.
4. PWM control: Noctua’s NE-FD1 IC fan control tuned for superior quietness
Again this model offers Integrated Anti-Vibration Pads for reducing the vibration and the noise level while the fan is operating.
Before I close the article I want to say that after testing all 3 new models from the A series they offer pretty same features and performance but the third model, namely Noctua NF-A15 PWM, offered a bit lower noise level.
I think Noctua NF-A15 PWM deserves the following reward:
