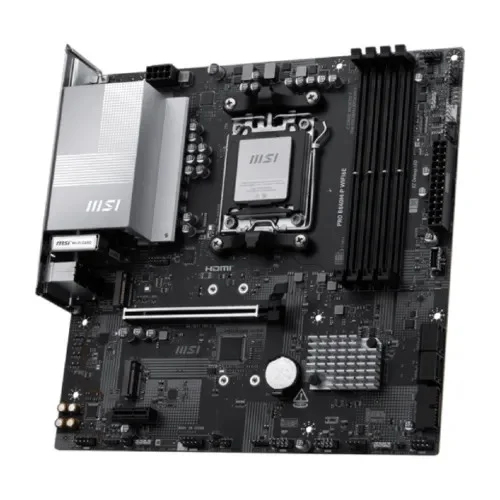

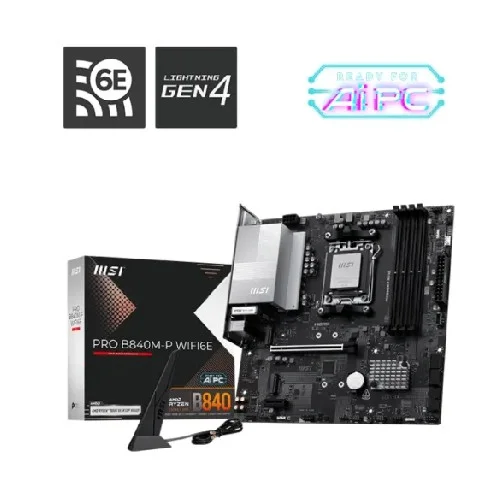

MSI PRO B840M-P WIFI6E AM5 mATX Motherboard

Stock: In Stock
Model: PRO B840M-P WIFI6E
Product id: 29445

Based on 0 reviews. - Write a review

18,800৳

Ex Tax: 18,800৳

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Add to Compare

- Supported CPU: AMD Ryzen 9000/ 8000/ 7000 Series for Socket AM5
- Supported RAM: 4x DDR5 UDIMM, Up to 8000 (OC) Mhz, Max. 256GB
- Graphics Output: 1x HDMI 2.1, maximum resolution of 4K 60Hz
- Features: 2x M.2 Slot, Realtek 8125D 2.5G LAN, Wi-Fi 6E, Bluetooth 5.3

যেকোনো অনাকাঙ্ক্ষিত ঝামেলা এড়াতে, অনলাইনে অর্ডার করার আগে আমাদের হেল্পলাইনে (+8801612-266507) কল করে পণ্যের স্টক এবং ডেলিভারি সম্পর্কে জেনে নেওয়ার জন্য বিনীত অনুরোধ করা হচ্ছে।

Chat Through

Messenger

Basic Information
CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8000+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only*
Chipset	AMD B840
Graphics	1x HDMI™ Support HDMITM 2.1, maximum resolution of 4K 60Hz*
Audio	Realtek® ALC897 7.1-Channel High Definition Audio
Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_2 slot • Supports up to PCIe 4.0 x4 • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) *Please refer to the manual for M.2 SSD heatsink restrictions.
Others	4x EZ Debug LED 1x EZ Memory Detection LED
Memory
Slots	1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot • Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors)
Connector & Ports
Wireless Communication module	Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3**, FIPS, FISMA
RAID	Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Internal I/O Ports	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports
Connectivitys

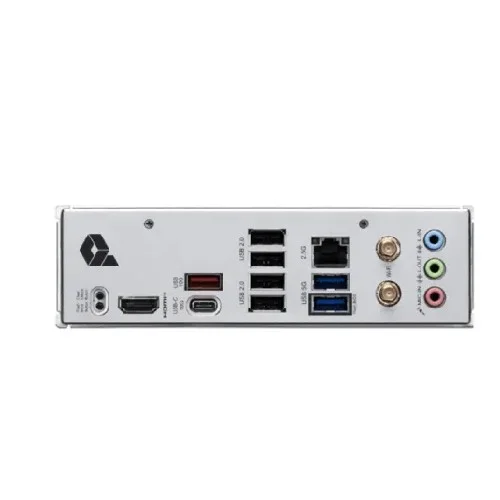

USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear)
Connectivity
LAN	Realtek® 8125D 2.5G LAN
Warranty Information
Warranty	3 Years

MSI PRO B840M-P WIFI6E AM5 mATX Motherboard

The MSI PRO B840M-P WIFI6E AM5 mATX Motherboard is a powerful and reliable platform designed for professionals, creators, and everyday PC builders who demand stability, performance, and next-generation connectivity. Built on the AMD B840 chipset and AM5 socket, this motherboard fully supports AMD Ryzen™ 9000, 8000, and 7000 Series desktop processors, making it a future-ready choice for modern computing needs. With a compact micro-ATX form factor, the board fits perfectly into smaller cases while still delivering premium features. It supports up to 256GB of DDR5 memory across four DIMM slots, with overclocking speeds reaching up to 8000+ MT/s (OC), ensuring exceptional multitasking and system responsiveness. AMD EXPO and dual-channel memory support further enhance performance and stability. For storage and expansion, the MSI PRO B840M-P WIFI6E includes two PCIe 4.0 M.2 slots and four SATA 6G ports, supporting fast NVMe SSDs and flexible RAID configurations. A reinforced PCIe 4.0 x16 slot delivers reliable bandwidth for modern graphics cards, while additional expansion slots allow system customization. Connectivity is a major highlight, featuring built-in Wi-Fi 6E with Bluetooth 5.3 for ultra-fast wireless speeds and low latency. The 2.5G LAN ensures stable, high-speed wired networking, ideal for productivity and online collaboration. A wide range of USB ports, including USB 10Gbps Type-C, provides versatile peripheral support. Designed with MSI’s PRO-series durability, the motherboard includes EZ Debug LEDs, Flash BIOS Button, and comprehensive cooling headers for easy troubleshooting and efficient thermal management. Backed by a 3-year warranty, the MSI PRO B840M-P WIFI6E is a dependable foundation for both professional and home PC builds.

Features of MSI PRO B840M-P WIFI6E AM5 mATX Motherboard

Advanced Processor Support: Compatible with the latest AMD Ryzen™ 9000, 8000, and 7000 Series processors, delivering strong performance for gaming, productivity, and multitasking.
Next-Generation DDR5 Memory: Supports DDR5 up to 8000+ MT/s (OC) with AMD EXPO, ensuring faster speeds and improved efficiency.

High-Speed Storage Options: Dual PCIe 4.0 M.2 slots and four SATA 6G ports provide flexible and ultra-fast storage expansion.

Integrated Wi-Fi 6E & Bluetooth 5.3: Enjoy faster wireless speeds, lower latency, and stable connectivity across 2.4GHz, 5GHz, and 6GHz bands.

2.5G LAN Networking: Enhanced wired network performance for smooth data transfer and online work.

Versatile USB Connectivity: Includes USB 10Gbps Type-A and Type-C ports for high-speed peripherals and modern devices.
