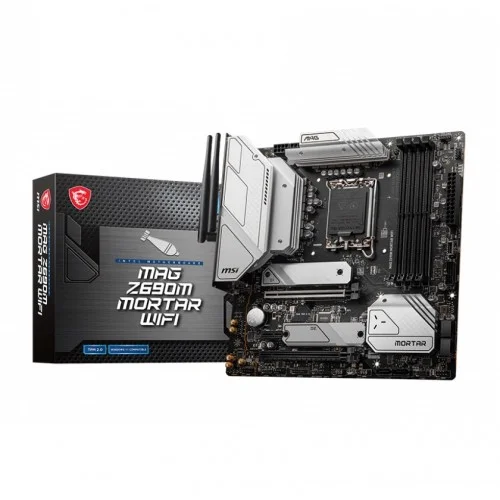

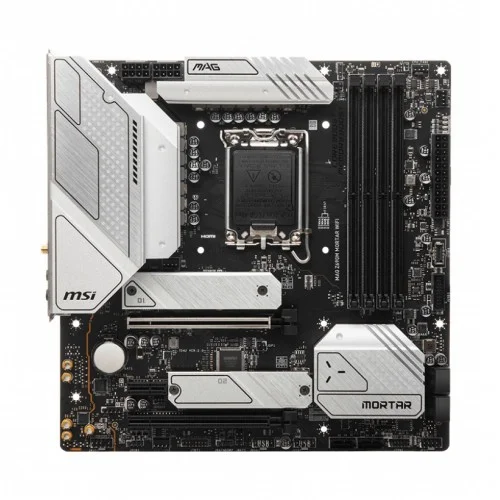

MSI MAG Z690M MORTAR WIFI 12th Gen Micro-ATX Motherboard
Save: 27990৳ (100%)
Discontinued
MSI MAG Z690M MORTAR WIFI 12th Gen Micro-ATX Motherboard
- Stock: Discontinued
- Model: MAG Z690M MORTAR WIFI
- Product id: 23700
0৳
27,990৳
- Supports 12th Gen Intel Core/ Pentium Celeron processors for LGA 1700 socket
- Supports DDR5 Memory, up to 6200+(OC) MHz
- Steel armor PCIe slots. Supports AMD Crossfire
- 2.5G LAN and Intel Wi-Fi 6E Solution
Quick Compare
| Product Details | ||||
| Product | MSI MAG Z690M MORTAR WIFI 12th Gen Micro-ATX Motherboard | MSI PRO Z790-A WIFI DDR4 Intel 12th and 13th Gen ATX Motherboard | MSI PRO B860-P WIFI DDR5 ATX Motherboard | MSI B850 GAMING PLUS WIFI7 AM5 ATX Motherboard |
| Image |  |
 |
 |
 |
| Price | |
|
|
|
| Model | MAG Z690M MORTAR WIFI | Z790-A WIFI DDR4 | B860-P WIFI | B850 GAMING PLUS WIFI |
| Brand | MSI | MSI | MSI | MSI |
| Availability | Discontinued | In Stock | In Stock | In Stock |
| Rating | Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
| Summary | Specification Basic Information Supported CPU Supports 12th Gen Intel Core, Pentium Gold and Celeron Processors Processor socket LGA1700 Chipset Intel Z690 Chipset Form Factor Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) Audio Realtek ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output Expansion Slots PCI 2x PCIe x16 slots PCI_E1 slot (From CPU) Supports PCIe 4.0 x16 PCI_E3 slot (From Z690 Chipset) Supports PCIe 3.0 x4 1x PCIe 3.0 x1 slot Memory Type DDR5 Slots 4 x DIMM Supported Memory Supports 1R 4800 MHz (by JEDEC & POR) Max. overclocking frequency: 1DPC 1R Max speed up to 6200+ MHz 1DPC 2R Max speed up to 5200+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Intel XMP 3.0 OC Supports Dual Controller Dual-Channel mode Supports non-ECC, un-buffered memory Maximum Memory 128GB Graphics Graphics 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz Supports 2-Way AMD CrossFire Technology Connector & Ports HDMI 1x HDMI 2.1 Display Port (s) 1x DisplayPort 1.4 USB (s) Intel Z690 Chipset 1x USB 3.2 Gen2x2 20Gbps Type-C port on the back panel 1x USB 3.2 Gen 2 10Gbps Type-C port available through the internal connector 2x USB 3.2 Gen 1 5Gbps ports available through the internal connector 4x USB 2.0 ports on the back panelUSB Hub-GL3590 3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panelUSB Hub-GL850G 4x USB 2.0 ports available through internal connectors LAN Port (s) 1x Realtek 8125BG 2.5Gbps LAN controller Wireless Communication module Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2, FIPS, FISMA Supported Storage 4x SATA 6Gb/s ports (SATA5~8, from Z690 Chipset) 2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM1061) 2x M.2 slots (Key M) M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_2 slot (From Z690 Chipset) Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel Optane Memory Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Audio 1x Front panel audio connector Internal I/O Ports 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C connector 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TBT connector (supports RTD3) 1x Tuning Controller connector TPM (Trusted Platform Module ) 1x TPM module connector Warranty Information Manufacturing Warranty 3 years MSI MAG Z690M MORTAR WIFI 12th Gen Micro-ATX Motherboard The MSI MAG Z690M MORTAR WIFI Motherboard supports 12th Gen Intel Core/ Pentium Celeron processors for LGA 1700 socket. It supports DDR5 Memory, up to 6666+(OC) MHz. A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with a dedicated SMT welding process and MSI Memory Boost technology, MAG Z690M MORTAR WIFI is ready to deliver world-class memory performance. It delivers a Lightning Fast Game experience with PCIe 5.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2. It comes with an Enhanced Power Design. Direct 18+1+1 phases power, dual 8-pin CPU power connectors, Core Boost, Memory Boost. It is equipped with an enlarged heatsink with heat pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads, and M.2 Shield Frozr are built for a high-performance system and non-stop gaming experience. 16.8 million colors / fancy lighting effects can be controlled in one click. MYSTIC LIGHT SYNC supports RGB, RAINBOW(ARGB), Corsair LED strips, and Ambient devices. The MSI MAG Z690M MORTAR WIFI comes with a 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution. Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection. 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users. It has an 8-layer PCB made of 2oz thickened copper and server-grade level material. The MSI MAG Z690M MORTAR WIFI comes with 3 years of warranty. .. | Specification Basic Information Supported CPU Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700 Chipset INTEL Z790 Form Factor ATX 243.84mmx304.8mm Audio Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output Expansion Slots PCI 3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 PCIe 3.0 supports up to x1 (From Chipset) Memory Type DDR4 Slots 4 x DIMM Supported Memory 5333/ 5200/ 5066/ 5000/ 4800/ 4600/ 4533/ 4400/ 4266/ 4000/ 3866/ 3733/ 3600/ 3466/ 3333(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 (By JEDCE & POR) Max. overclocking frequency: • 1DPC 1R Max speed up to 5333+ MHz • 1DPC 2R Max speed up to 4800+ MHz • 2DPC 1R Max speed up to 4400+ MHz • 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) Maximum Memory 128GB Graphics Graphics 1x HDMI 1x DisplayPort Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz Support DP 1.4, maximum resolution of 4K 60Hz Connector & Ports HDMI 1x HDMI Display Port (s) 1x DisplayPort USB (s) 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) LAN Port (s) Intel 2.5Gbps LAN Wireless Communication module Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2, FIPS, FISMA Supported Storage 4x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G port RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices Audio Audio Connectors Internal I/O Ports 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0) Others Special Features 4x EZ Debug LED Warranty Information Manufacturing Warranty 3 years MSI PRO Z790-A WIFI DDR4 Intel 12th and 13th Gen ATX Motherboard The LGA 1700 processors from the 12th and 13th generation Intel Core, Pentium Gold, and Celeron families are supported by the MSI PRO Z790-A WIFI DDR4 ATX Motherboard. Four DDR4 RAM slots on this ATX motherboard, which uses the Intel Z790 chipset and the LGA 1700 socket, provide twin-channel memory and overclocked speeds of up to 5333 MHz. Ample storage space is provided by six SATA III ports and four M.2 interfaces, which support RAID 0, 1, 5, and 10 via SATA or 0, 1 and 5 via M.2. Through PCIe 5.0 x16, PCIe 4.0 x16, PCIe 3.0 x16, and PCIe 3.0 x1 slots, adapter cards and GPUs can be installed. With a Wi-Fi 6E network and a 2.5 GbE Intel LAN, you may benefit from rapid networking; Bluetooth 5.2 allows you to connect to wireless devices instantly. The back ports can be used for analog or digital output, and the Realtek ALC4080 audio codec provides 7.1 channel surround sound. Connect peripherals through a USB 3.2 Gen 2x2 Type-C port, two USB 2.0, two USB 3.2 Gen 1, and three USB 3.2 Gen 2x2 ports. For video output, DisplayPort and HDMI are employed. On the rear I/O panel, there is also a Flash BIOS button, and internal headers support features including RGB connections, chassis intrusion, a TPM module, front-panel USB 3.2 Gen 2 Type-C and Type-A connectors, and USB 3.2 Gen 1 and 2.0 ports. A three-year guarantee is included with the MSI PRO Z790-A WIFI DDR4 13th Gen ATX Motherboard. .. | MSI PRO B860-P WIFI DDR5 ATX MotherboardMSI PRO B860-P WIFI DDR5 ATX Motherboard is an advanced platform designed to meet the needs of modern computing. Built with the powerful Intel B860 chipset, this motherboard supports the latest Intel Core Ultra processors, ensuring top-tier performance for gaming, content creation, and multitasking. Its ATX form factor provides a spacious layout, allowing easy installation and superior airflow for high-performance components.Equipped with DDR5 memory support, the motherboard can handle up to 256GB of RAM, delivering speeds of up to 8800 MT/s for unparalleled responsiveness and smooth performance. It features three M.2 slots, including one PCIe 5.0 slot, offering lightning-fast storage solutions to enhance system performance. Additionally, its four PCI-E expansion slots provide versatile options for graphics cards and other add-ons.For gamers and creators, the MSI PRO B860-P offers exceptional graphics output with HDMI 2.1, DisplayPort 1.4, and Thunderbolt 4 compatibility, supporting high resolutions of up to 8K. Its advanced networking features include Intel Wi-Fi 7 and Realtek 5Gbps LAN, ensuring stable and high-speed connectivity.The motherboard boasts enhanced audio quality powered by the Realtek ALC897 codec, delivering crystal-clear 7.1-channel sound for an immersive experience. With a range of internal and external ports, including multiple USB 10Gbps Type-C and Type-A options, this motherboard offers robust connectivity for peripherals and devices.Designed with practicality in mind, the MSI PRO B860-P includes EZ Debug LEDs for troubleshooting, Addressable RGB headers for custom lighting, and extensive cooling support to keep your system running smoothly. Backed by a 3-year warranty, the MSI PRO B860-P WIFI DDR5 ATX Motherboard is an excellent choice for building a powerful and future-proof PC.FeaturesSupports Intel Core Ultra processors with the Intel B860 chipset for outstanding performance.DDR5 memory support with speeds up to 8800 MT/s and a maximum capacity of 256GB.Advanced storage options with three M.2 slots, including PCIe 5.0 compatibility.High-resolution graphics output through HDMI 2.1, DisplayPort 1.4, and Thunderbolt 4.Reliable connectivity with Intel Wi-Fi 7 and Realtek 5Gbps LAN.Immersive 7.1-channel high-definition audio powered by Realtek ALC897 codec.Robust build with EZ Debug LEDs, RGB headers, and efficient cooling support... | MSI B850 GAMING PLUS WIFI7 AM5 ATX Motherboard in Bangladesh The MSI B850 GAMING PLUS WIFI7 AM5 ATX Motherboard is designed for gamers, content creators, professionals, and PC enthusiasts who want reliable next-generation performance. Built on the advanced AMD B850 chipset, this motherboard supports AMD Ryzen 9000, 8000, and 7000 Series processors, making it an ideal foundation for high-performance gaming systems and productivity workstations.Whether you are building a new PC or upgrading an existing AM5 platform, this motherboard offers the latest technologies including DDR5 memory support, PCIe 5.0 expansion, Wi-Fi 7 connectivity, 5G LAN networking, and high-speed storage options. For users in Bangladesh seeking a future-ready motherboard that balances performance, features, and value, the MSI B850 GAMING PLUS WIFI7 stands out as an excellent choice. Built for AMD Ryzen AM5 Processors The motherboard supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors through the AM5 socket platform. This ensures compatibility with some of AMD's most powerful CPUs, allowing users to build gaming PCs capable of handling demanding AAA games, streaming workloads, professional software, and multitasking environments.For gamers in Bangladesh who want long-term upgrade flexibility, the AM5 platform provides an excellent investment. Users can start with a mid-range processor and upgrade later without changing the motherboard. Ultra-Fast DDR5 Memory Support Memory performance plays a major role in gaming and productivity, and MSI has equipped this motherboard with four DDR5 DIMM slots supporting up to 256GB memory capacity. The board supports memory overclocking speeds up to 8200+ MT/s, delivering outstanding responsiveness and faster application performance.Whether you are editing videos, running virtual machines, creating 3D designs, or playing competitive esports titles, the advanced DDR5 memory architecture helps ensure smoother performance and lower latency. PCIe 5.0 for Maximum Graphics Performance The MSI B850 GAMING PLUS WIFI7 features a PCIe 5.0 x16 primary slot, providing exceptional bandwidth for modern graphics cards. This enables gamers to take full advantage of high-end GPUs and prepares the system for future graphics upgrades.Users building powerful gaming rigs for 1440p or 4K gaming can confidently pair this motherboard with the latest graphics cards while maintaining optimal performance and stability. Next-Generation Storage Support Storage speed significantly impacts overall system responsiveness. This motherboard includes three M.2 slots and four SATA ports, giving users flexible storage options for gaming libraries, content creation projects, and business data.The primary M.2 slot supports PCIe 5.0 x4 NVMe SSDs, delivering blazing-fast read and write speeds. Additional PCIe 4.0 M.2 slots provide ample room for expanding storage capacity without sacrificing performance.Users who frequently transfer large files, edit high-resolution videos, or run demanding applications will appreciate the high-speed storage architecture offered by this motherboard. Advanced Wi-Fi 7 and Bluetooth 5.4 Connectivity One of the standout features of the MSI B850 GAMING PLUS WIFI7 motherboard is its built-in Wi-Fi 7 solution. Wi-Fi 7 provides significantly improved wireless speeds, lower latency, and enhanced network stability compared to previous generations.For Bangladeshi users who rely on wireless internet connections, Wi-Fi 7 helps improve online gaming experiences, video conferencing quality, cloud computing access, and high-speed downloads.The integrated Bluetooth 5.4 support also allows seamless connectivity with wireless headphones, keyboards, mice, controllers, and other compatible devices. High-Speed 5G LAN Networking In addition to wireless connectivity, the motherboard includes a Realtek 8126VB 5G Ethernet controller. This high-speed wired networking solution is ideal for competitive gamers, streamers, and professionals who require maximum network stability and low latency.Whether you are participating in online tournaments, streaming content, or transferring large files across a local network, the 5G LAN connection delivers reliable performance. Immersive Audio Experience The MSI B850 GAMING PLUS WIFI7 utilizes the Realtek ALC897 audio codec with support for 7.1-channel High Definition Audio. This provides rich sound quality for gaming, movies, music, and professional multimedia applications.Gamers can enjoy better positional awareness during competitive gameplay, while content consumers benefit from more immersive audio experiences. Comprehensive USB Connectivity Modern users often connect multiple devices simultaneously, and MSI addresses this requirement with a wide range of USB connectivity options. The motherboard offers USB 10Gbps Type-A and Type-C ports, USB 5Gbps ports, and additional front-panel connectivity.This allows convenient connection of external SSDs, gaming peripherals, smartphones, capture cards, printers, and other accessories without bandwidth limitations. Designed for Easy Building and Maintenance MSI has integrated several user-friendly features that simplify system assembly and maintenance. The Flash BIOS Button allows BIOS updates without requiring a processor installation, while EZ Debug LEDs help quickly identify hardware issues during system setup.These features are particularly beneficial for first-time PC builders and users upgrading their systems independently. RGB Customization and Cooling Support The motherboard includes multiple RGB and ARGB headers, enabling users to create visually impressive gaming setups. Whether you prefer subtle lighting or a fully synchronized RGB ecosystem, the board offers extensive customization possibilities.It also provides multiple fan headers and pump support, allowing users to build efficient cooling solutions for gaming, rendering, and workstation applications. Why Buy MSI B850 GAMING PLUS WIFI7 from Creatus? When purchasing premium PC components in Bangladesh, authenticity and after-sales support are important considerations. Creatus provides genuine MSI products backed by official manufacturer warranty coverage, helping customers shop with confidence.Customers choosing Creatus benefit from competitive pricing, reliable service, secure ordering, and professional support for building high-performance gaming and productivity systems.If you are searching for a future-ready AM5 motherboard that delivers excellent connectivity, high-speed storage, advanced networking, and strong upgrade potential, the MSI B850 GAMING PLUS WIFI7 AM5 ATX Motherboard is a smart investment. Available from Creatus, this motherboard is well-suited for gamers, creators, professionals, and PC enthusiasts throughout Bangladesh.Whether your goal is competitive gaming, content creation, software development, or building a premium workstation, Creatus offers this MSI motherboard as a dependable platform capable of supporting your computing needs for years to come. Frequently Asked Questions (FAQs) 1. What is the warranty period for the MSI B850 GAMING PLUS WIFI7 motherboard? The MSI B850 GAMING PLUS WIFI7 AM5 ATX Motherboard comes with a 3-year manufacturer warranty, ensuring peace of mind and long-term reliability. 2. Does this motherboard support AMD Ryzen 9000 Series processors? Yes, the motherboard supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors through the AM5 socket platform. 3. Is Wi-Fi 7 built into the motherboard? Yes, the motherboard includes built-in Wi-Fi 7 and Bluetooth 5.4 support, providing high-speed wireless connectivity without requiring additional adapters... |
