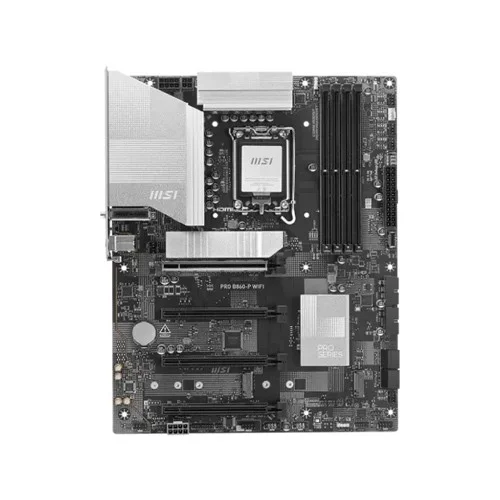

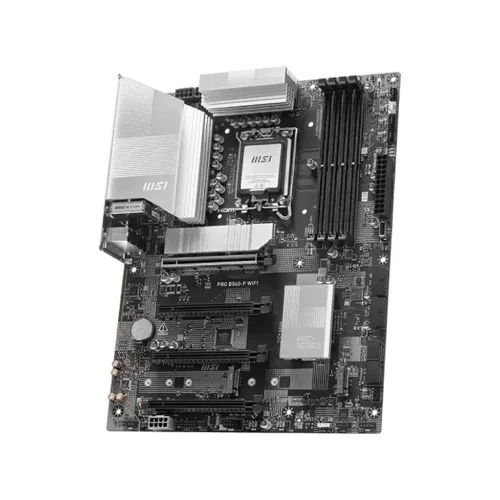

MSI PRO B860-P WIFI DDR5 ATX Motherboard

Save: 2001৳ (7%)

MSI PRO B860-P WIFI DDR5 ATX Motherboard

Stock: In Stock
Model: B860-P WIFI
Product id: 27635

Based on 0 reviews. - Write a review

26,499৳

28,500৳

Ex Tax: 26,499৳

EMI starts at 9,292৳/month. View all 25 banks EMI plans >

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
Supported RAM: 4x DDR5, Max 256GB 8800- 6400 (OC) MT/s
Graphics Output: 1x HDMI, 1x DisplayPort, 1x Type-C DisplayPort
Features: 3x M.2, Realtek 8126 5Gbps LAN, Wi-Fi 7, Bluetooth 5.4

Basic Information
Supported CPU	Supports Intel Core Ultra Processors (Series 2)
Chipset	INTEL B860
Form Factor	ATX (243.84mmx304.8mm)
Audio	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Expansion Slots
PCI	4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x1 (From Chipset)
M.2 Socket	3x M.2
Memory
Slots	4
Supported Memory	4x DDR5 UDIMM, Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 8800+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s
Maximum Memory	Maximum Memory Capacity 256GB
Graphics
Graphics	1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
Connector & Ports
HDMI	1x HDMI 2.1
Display Port (s)	1x DisplayPort 1x Type-C DisplayPort Thunderbolt 4 port, supporting DisplayPort 1.4 over USB Type-C, with a maximum resolution of 4K 120Hz / 8K 60Hz*
USB (s)	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front)
LAN Port (s)	Realtek 8126 5Gbps LAN
Wireless Communication module	Intel Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4**, MLO, 4KQAM
Supported Storage	3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices 4x SATA 6G
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Audio	1x Front Audio (JAUD)
Internal I/O Ports	1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
General information
Memory Type	DDR5
Warranty Information
Warranty	3 Year warranty

MSI PRO B860-P WIFI DDR5 ATX Motherboard

MSI PRO B860-P WIFI DDR5 ATX Motherboard is an advanced platform designed to meet the needs of modern computing. Built with the powerful Intel B860 chipset, this motherboard supports the latest Intel Core Ultra processors, ensuring top-tier performance for gaming, content creation, and multitasking. Its ATX form factor provides a spacious layout, allowing easy installation and superior airflow for high-performance components.Equipped with DDR5 memory support, the motherboard can handle up to 256GB of RAM, delivering speeds of up to 8800 MT/s for unparalleled responsiveness and smooth performance. It features three M.2 slots, including one PCIe 5.0 slot, offering lightning-fast storage solutions to enhance system performance. Additionally, its four PCI-E expansion slots provide versatile options for graphics cards and other add-ons.For gamers and creators, the MSI PRO B860-P offers exceptional graphics output with HDMI 2.1, DisplayPort 1.4, and Thunderbolt 4 compatibility, supporting high resolutions of up to 8K. Its advanced networking features include Intel Wi-Fi 7 and Realtek 5Gbps LAN, ensuring stable and high-speed connectivity.The motherboard boasts enhanced audio quality powered by the Realtek ALC897 codec, delivering crystal-clear 7.1-channel sound for an immersive experience. With a range of internal and external ports, including multiple USB 10Gbps Type-C and Type-A options, this motherboard offers robust connectivity for peripherals and devices.Designed with practicality in mind, the MSI PRO B860-P includes EZ Debug LEDs for troubleshooting, Addressable RGB headers for custom lighting, and extensive cooling support to keep your system running smoothly. Backed by a 3-year warranty, the MSI PRO B860-P WIFI DDR5 ATX Motherboard is an excellent choice for building a powerful and future-proof PC.

Features

Supports Intel Core Ultra processors with the Intel B860 chipset for outstanding performance.
DDR5 memory support with speeds up to 8800 MT/s and a maximum capacity of 256GB.
Advanced storage options with three M.2 slots, including PCIe 5.0 compatibility.
High-resolution graphics output through HDMI 2.1, DisplayPort 1.4, and Thunderbolt 4.
Reliable connectivity with Intel Wi-Fi 7 and Realtek 5Gbps LAN.
Immersive 7.1-channel high-definition audio powered by Realtek ALC897 codec.
Robust build with EZ Debug LEDs, RGB headers, and efficient cooling support.
