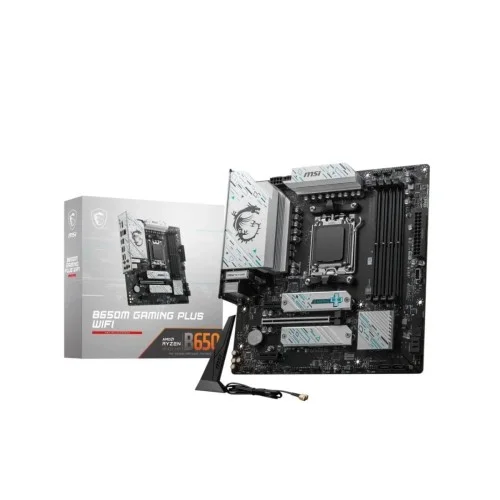

MSI B650M GAMING Plus WIFI AMD AM5 mATX Motherboard
- Stock: In Stock
- Model: B650M GAMING Plus WIFI
- Product id: 26770
- Supports AMD Ryzen™ 8000/ 7000 Series
- 4x DDR5 UDIMM, Memory Capacity 256GB
- Graphics Output: 1x HDM, 1x Display
- Support for Windows® 11 64-bit, Windows® 10 64-bit
| Basic Information | |
| Supported CPU | Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors Socket AM5 |
| Chipset | AMD B650 |
| Form Factor | mATX 243.84mmx243.84mm |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Memory | |
| Type | DDR5 |
| Slots | 1x PCI-E x16 slot • Supports x16 (For Ryzen™ 7000 Series processors) • Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors) • Supports x4 (For Ryzen™ 5 8500G processor) 2x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Supported Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO™ Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6000+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5400+ MHz |
| Maximum Memory | 256GB |
| Graphics | |
| Graphics | 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* |
| Connector & Ports | |
| HDMI | 1 |
| USB (s) | 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2 Type C (Front) |
| LAN Port (s) | Realtek® RTL8125BG 2.5Gbps LAN |
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G • M2_2 supports PCIe 4.0 x2 speed when Ryzen™ 5 8500G is installed |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 for M.2 NVMe storage devices |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports |
| Software | |
| Operating System | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Warranty Information | |
| Warranty | 3 years warranty |
MSI B650M GAMING Plus WIFI – High-Performance mATX Motherboard with Wi-Fi 6E
The MSI B650M GAMING Plus WIFI is a high-performance mATX motherboard designed to meet the needs of gamers and PC enthusiasts who demand reliability and power. Built for AMD's AM5 socket, this motherboard supports the latest Ryzen 7000 series processors, offering exceptional performance for both gaming and productivity tasks. Featuring a robust power delivery system, the B650M GAMING Plus WIFI ensures stable operation even under heavy loads, thanks to its premium components and advanced cooling solutions. Its compact mATX form factor strikes a balance between space-saving and expandability, making it an excellent choice for smaller cases without sacrificing performance. One of the standout features of this motherboard is its built-in Wi-Fi 6E connectivity, which provides faster and more reliable wireless internet speeds, reducing latency and improving your overall online gaming experience. It supports Bluetooth 5.3 for seamless connection to a variety of peripherals. The motherboard offers ample connectivity options, including PCIe 4.0 slots for high-speed graphics cards and storage drives, and multiple M.2 slots for ultra-fast NVMe SSDs. It also comes equipped with USB 3.2 Gen 2 ports for rapid data transfer and a 2.5G LAN port for high-speed wired networking. For gamers and overclockers, the B650M GAMING Plus WIFI features customizable RGB lighting, allowing you to personalize your system's aesthetics. The BIOS is user-friendly, providing easy access to various tuning and performance options to get the most out of your hardware. Overall, the MSI B650M GAMING Plus WIFI offers a well-rounded package for those seeking a reliable and feature-rich motherboard, combining cutting-edge technology with ease of use and stylish design.
Advanced DDR5 Memory Compatibility
The MSI B650M GAMING Plus WIFI supports up to 256GB of DDR5 memory across four DIMM slots. With overclocking capabilities up to 7200+ MHz, users can fine-tune their system for maximum speed and stability. DDR5 not only offers improved bandwidth and performance over DDR4 but also ensures future-proofing for the next generation of applications and games.
Enhanced Expansion and Graphics Capabilities
Equipped with a PCIe 4.0 x16 slot and two PCIe x1 slots, this motherboard provides flexible options for graphics cards and expansion devices. It supports various PCIe configurations depending on the Ryzen processor used. The inclusion of HDMI 2.1 and DisplayPort 1.4 means users can enjoy high-resolution displays with support for up to 4K at 60Hz, making it an excellent choice for gamers and creators.
Comprehensive Connectivity and Storage
When it comes to connectivity, the MSI B650M GAMING Plus WIFI doesn’t disappoint. It features dual M.2 slots for NVMe SSDs and four SATA 6Gb/s ports for traditional storage. Both M.2 slots support PCIe 4.0 x4, enabling lightning-fast data transfer speeds. Additionally, it offers a rich array of USB ports including USB 3.2 Gen2 Type-A and Type-C, ensuring compatibility with a wide range of peripherals.
Robust Networking and Audio Performance
This motherboard features Realtek® RTL8125BG 2.5 Gbps LAN for high-speed wired networking, making it ideal for online gaming and streaming. On the wireless side, it includes onboard Wi-Fi capabilities for convenient and stable wireless connectivity. The Realtek® ALC897 7.1-channel high-definition audio codec provides immersive sound for gaming and media consumption without the need for an external sound card.
Durable Build and Aesthetics
The MSI B650M GAMING Plus WIFI sports a robust, attractive design with premium PCB materials and solid capacitors to ensure long-lasting performance. Its sleek black aesthetic with subtle accents blends well with most gaming setups. RGB header support allows users to personalize their builds with stunning lighting effects, adding to the overall appeal.
Features of MSI B650M GAMING Plus WIFI Motherboard
- AM5 Socket with Ryzen 8000/7000 Series Support: This motherboard supports the latest AMD Ryzen™ 8000 and 7000 Series Desktop Processors, making it future-ready with cutting-edge AM5 socket compatibility.
- DDR5 Memory Support Up to 256GB: Equipped with 4x DDR5 UDIMM slots, it supports a massive 256GB RAM capacity with speeds up to DDR5 7200+ MHz (OC), ensuring ultra-fast performance for gaming and multitasking.
- Dual M.2 Slots with PCIe 4.0 Interface: It features 2x M.2 slots, both supporting PCIe 4.0 x4 speeds, enabling lightning-fast NVMe SSD performance ideal for gaming, creative workloads, and rapid boot times.
- Multiple USB Ports with USB 3.2 Gen2 Type-C: Comes with a rich USB configuration, including USB 3.2 Gen2 Type-C ports on both front and rear panels, ensuring fast data transfer and modern device compatibility.
- 2.5G LAN for High-Speed Networking: Features the Realtek® RTL8125BG 2.5 Gbps LAN, which delivers ultra-fast and stable internet connectivity — perfect for online gaming, streaming, and productivity.
- Integrated Wi-Fi Support: With built-in Wi-Fi capability, this board offers wireless convenience right out of the box — ideal for users who prefer clutter-free setups without sacrificing connectivity.
- 4K Display Support with HDMI 2.1 & DP 1.4: Includes HDMI 2.1 and DisplayPort 1.4 outputs, both supporting 4K resolution at 60Hz, making it suitable for high-definition displays and modern home theater or gaming setups.
- Advanced RGB & Cooling Support: Comes with multiple RGB headers (JARGB_V2, JRGB) and fan connectors (CPU, Pump, and System Fans), allowing for customizable lighting and efficient thermal management.
MSI B650M GAMING Plus WIFI Price in BD
Level up your gaming setup with the MSI B650M GAMING Plus WIFI AMD AM5 mATX Motherboard, now at a special offer price of 21,500৳ from Creatus Computer (regular price: 22,500৳). Built for AMD Ryzen 7000 series processors, it supports DDR5 memory, PCIe 4.0, and features Wi-Fi 6, fast networking, and robust power design. Ideal for gamers and creators, this compact mATX board offers high performance, reliability, and future-ready features. Buy the MSI B650M GAMING Plus WIFI motherboard now from Creatus Computer in Bangladesh and upgrade your rig today
