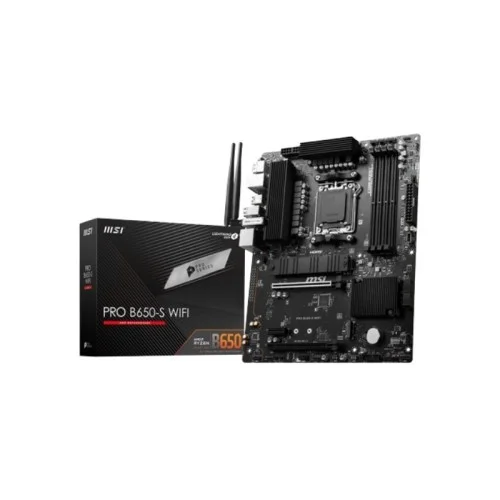

MSI PRO B650-S WIFI AMD AM5 ATX Gaming Motherboard
- Stock: In Stock
- Model: PRO B650-S WIFI
- DDR5 Support
- Wi-Fi 6E Connectivity
- Ryzen 7000 Series Support
- PCIe 4.0 Slots
| Basic Information | |
| Supported CPU | Supports AMD Ryzen™ 7000 Series Desktop Processors |
| Chipset | AMD B650 |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Form Factor | ATX |
| Expansion Slots | |
| PCI | PCIe 4.0 x4 |
| Memory | |
| Type | Memory Type: DDR5 |
| Slots | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Supported Memory | Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6000+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO |
| Maximum Memory | Memory Capacity: 192GB |
| Connector & Ports | |
| HDMI | 1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz* |
| Display Port (s) | 1x DisplayPort Supports DP1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |

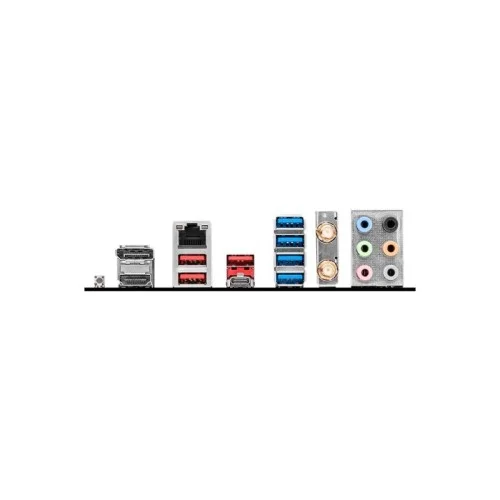

| USB (s) | 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| LAN Port (s) | Realtek® 8125BG 2.5G LAN |
| Wireless Communication module | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports |
| Warranty Information | |
| Warranty | 3 Years |
MSI PRO B650-S WIFI AMD AM5 ATX Gaming Motherboard
MSI PRO B650-S WIFI AMD AM5 ATX Gaming Motherboard embodies cutting-edge technology, catering to the demands of high-performance gaming and content creation. Crafted to complement the prowess of AMD Ryzen™ 7000 Series Desktop Processors, this motherboard ushers in a new era of computing power.Designed with DDR5 memory support, it maximizes data transfer rates, ensuring lightning-fast responsiveness and seamless multitasking. The inclusion of PCIe 4.0 slots empowers users to leverage the latest in graphics cards and storage solutions, guaranteeing a future-ready gaming experience.Boasting integrated Wi-Fi 6E, this motherboard delivers unparalleled wireless connectivity, offering low-latency gaming and high-speed data transfers. The Realtek® ALC897 Codec provides immersive 7.1-channel high-definition audio, heightening the gaming and multimedia experience.MSI’s attention to detail extends to the board's layout, which optimizes cooling and system stability. Multiple system fan headers and a dedicated pump fan connector ensure efficient cooling for demanding gaming sessions.With its robust build, extensive connectivity options, and support for the latest technologies, the MSI PRO B650-S WIFI AMD AM5 ATX Gaming Motherboard stands as a reliable cornerstone for gamers and content creators seeking uncompromised performance and future-proof features.
Features:
- AMD Ryzen™ 7000 Series Support: Designed for seamless compatibility with the latest AMD processors.
- DDR5 Memory Compatibility: Harnesses the power of high-speed DDR5 memory for enhanced performance.
- Wi-Fi 6E Connectivity: Integrated Wi-Fi 6E for ultra-fast wireless networking.
- PCIe 4.0 Slots: Future-proof expansion capabilities for high-speed components.
- Realtek® ALC897 Codec: Immersive 7.1-channel high-definition audio.
- Optimized Cooling: Multiple system fan headers and a dedicated pump fan connector for efficient cooling.
- Robust Build Quality: Durable construction ensuring long-term reliability.
- ATX Form Factor: Standardized form factor suitable for a variety of PC builds.
- USB 3.2 Gen1 and Gen2 Support: Versatile connectivity options for high-speed data transfer.
- HDMI and DisplayPort Outputs: Supports high-resolution displays and modern monitors.
- AMD EXPO Support: Enhances memory overclocking and system performance.
- Tuning Controller Connector (JDASH): Allows for easy tuning and monitoring.
- RGB LED Connectivity: Multiple connectors for customizable lighting effects.
- TPM Pin Header: Supports TPM 2.0 for enhanced system security.
- Three-Year Warranty: Ensures peace of mind with a three-year warranty period.
