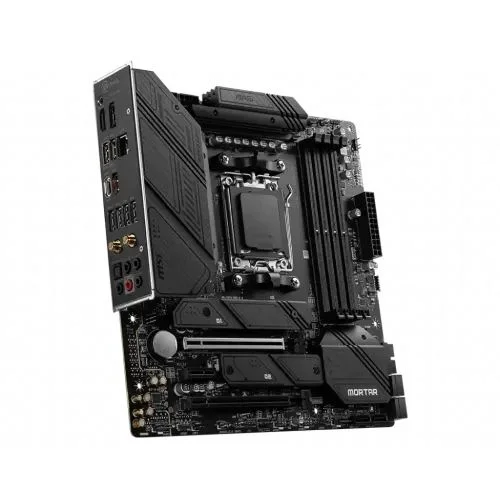

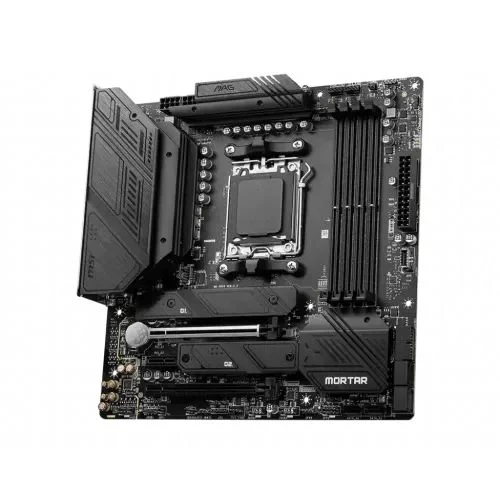

MSI MAG B650M MORTAR WIFI DDR5 AMD AM5 mATX Motherboard
-8 %
MSI MAG B650M MORTAR WIFI DDR5 AMD AM5 mATX Motherboard
- Stock: In Stock
- Model: B650M MORTAR WIFI
* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *
- Supported CPU: Ryzen 7000 Series Processors for Socket AM5
- Supported RAM: 4x DDR5, up to 6400+(OC) MHz
- Graphics Output: 1x HDMI, 1x Display Port
- : 2.5G LAN and Intel Wi-Fi 6E Solution
Quick Compare
| Product Details | ||||
| Product | MSI MAG B650M MORTAR WIFI DDR5 AMD AM5 mATX Motherboard | Gigabyte B850 eagle wifi6e Motherboard | GIGABYTE Z690 UD AX DDR5 12th Gen ATX Motherboard | MSI PRO Z790-P WIFI DDR4 Intel 12th and 13th Gen ATX Motherboard |
| Image |  |  |  |  |
| Price | | | | |
| Model | B650M MORTAR WIFI | B850 EAGLE WIFI6E | Z690 UD AX | PRO Z790-P WIFI DDR4 |
| Brand | MSI | GIGABYTE | GIGABYTE | MSI |
| Availability | In Stock | In Stock | In Stock | In Stock |
| Rating | Based on 0 reviews. | Based on 0 reviews. | Based on 0 reviews. | Based on 0 reviews. |
| Summary | SpecificationBasic InformationSupported CPU Supports AMD Ryzen 7000 Series Desktop Processors Socket AM5Chipset AMD B650Form Factor mATX 243.84mmx243.84mmAudio Realtek ALC4080 Codec 7.1-Channel High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panelExpansion SlotsPCI 2x PCI-E x16 slot Support x16/ x4 1x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)MemoryType DDR5Slots 4 DIMMsSupported Memory Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHzMaximum Memory 128GBGraphicsGraphics 1x HDMI 1x DisplayPort Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz Support DP 1.4, maximum resolution of 8K 60HzConnector & PortsHDMI 1x HDMIDisplay Port (s) 1x Display PortUSB (s) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)LAN Port (s) Realtek RTL8125B 2.5Gbps LANWireless Communication module AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2Supported Storage 2x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G portRAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devicesAudio HD Audio ConnectorsInternal I/O Ports 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type CTPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)Warranty InformationManufacturing Warranty 3 YearsMSI MAG B650M MORTAR WIFI DDR5 AMD AM5 mATX Motherboard The AMD Ryzen 7000-series CPUs with up to 16 Zen 4 cores and dual-channel DDR5 memory with a maximum memory capacity of up to 128GB and a bus speed of up to 6400+(OC) MHz are supported by the MSI MAG B650M MORTAR WIFI Motherboard. It has a dual 8-pin CPU power connector, a 12+2+1 Duet Rail Power System, Core Boost, and Memory Boost. It is designed for a high-performance system and a nonstop gaming experience and includes an expanded heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads, and a Double-sided M.2 Shield Frozr. The motherboard is constructed from an 8-layer PCB comprised of server-grade materials and copper that is 2 oz thicker. With PCIe 4.0 slots, Lightning Gen 5 x4 M.2, and USB 3.2 Gen 2x2 it can give a lightning-fast gaming experience. The double-sided Shield Frozr architecture makes M.2 SSDs quicker while keeping them safe and reducing throttling. The rear I/O panel now provides quick access to Turbo mode, a one-click toggle for all RGB lights, and direct safe boot entry. Built-in USB 3.2 Gen 2x2 port; 20Gbps transmission speed; 4X quicker than USB 3.2 Gen 1; available on the MSI MAG B650M MORTAR WIFI DDR5 AMD AM5 mATX Motherboard. When using the Rear USB Type-C, the MAG B650 series motherboards provide never-before-seen USB speeds of up to 20Gb/s, giving you a wide range of options for connecting and enhancing your USB devices. With PCIe 4.0 slots, Lightning Gen 5 x4 M.2, and USB 3.2 Gen 2x2 it can give a lightning-fast gaming experience. The double-sided Shield Frozr architecture makes M.2 SSDs quicker while keeping them safe and reducing throttling. The rear I/O panel now provides quick access to Turbo mode, a one-click toggle for all RGB lights, and direct safe boot entry. Built-in USB 3.2 Gen 2x2 port; 20Gbps transmission speed; 4X quicker than USB 3.2 Gen 1; available on the MSI MAG B650M MORTAR WIFI. When using the Rear USB Type-C, the MAG B650 series motherboards provide never-before-seen USB speeds of up to 20Gb/s, giving you a wide range of options for connecting and enhancing your USB devices. The warranty period for the MSI MAG B650M MORTAR WIFI Motherboard is three years. .. | Gigabyte B850 Eagle WiFi6E Motherboard Price in BangladeshGigabyte B850 Eagle WiFi6E motherboard is designed to support AMD's latest AM5 processors, including the Ryzen 7000, 8000, and 9000 series. It offers robust performance with support for DDR5 memory modules up to 8200MHz (overclocked) and a maximum capacity of 256GB across four DIMM slots. For storage, the motherboard provides three M.2 connectors compatible with PCIe 5.0 and 4.0 SSDs, ensuring high-speed data transfer rates. In terms of connectivity, it features the latest 802.11ax Wi-Fi 6E technology, offering gigabit wireless performance on the 6GHz band for smoother streaming and gaming experiences. Additionally, the Realtek 1GbE LAN chip ensures reliable wired network connections. The motherboard also includes multiple USB ports, including USB Type-C, and comprehensive audio support with Realtek High Definition Audio CODEC.Efficient Performance for Modern ComputingThe Gigabyte B850 Eagle WiFi6E motherboard is designed to power high-end gaming and productivity setups. Built with the AMD B850 chipset, it supports AMD Ryzen™ 9000, 8000, and 7000 Series processors, delivering exceptional computing power for seamless multitasking and high-performance applications.Reliable Memory Support for MultitaskingWith four DDR5 DIMM slots, this motherboard supports memory speeds of up to 8200+ MT/s (OC), allowing for blazing-fast performance. The dual-channel architecture enhances stability, making it ideal for gamers and content creators who demand peak efficiency.High-Quality Graphics and Display OptionsEquipped with HDMI 2.1 and DisplayPort 1.4 outputs, the Gigabyte B850 Eagle WiFi6E supports 4K resolution at high refresh rates, ensuring smooth visuals and immersive experiences for gaming, streaming, and professional workflows.Fast and Versatile Storage OptionsThis motherboard features PCIe 5.0 and PCIe 4.0 M.2 slots, providing high-speed data transfer for NVMe SSDs. Additionally, four SATA 6Gb/s ports allow for extensive storage expansion, catering to high-capacity storage needs.Comprehensive Connectivity PortsEnjoy superior connectivity with USB 3.2 Gen 2, USB Type-C, and multiple high-speed USB ports. The Intel® WiFi 6E module ensures ultra-fast wireless networking, while Realtek 2.5GbE LAN offers stable wired connections for competitive gaming and data transfers.Enhanced Cooling and DurabilityDesigned for optimal heat dissipation, the Gigabyte B850 Eagle WiFi6E features multiple fan headers, an advanced cooling solution, and reinforced PCIe slots. This ensures reliability under heavy workloads and extended gaming sessions.Superior Audio ExperienceEquipped with Realtek® high-definition audio, this motherboard delivers crystal-clear sound, supporting 7.1-channel configurations for an immersive audio experience.Built for Stability and LongevityEngineered with premium components and ultra-durable design, this motherboard ensures long-lasting performance. Q-Flash Plus allows BIOS updates without a CPU installation, enhancing future compatibility.FeaturesPowerful CPU Support – Compatible with AMD Ryzen™ 9000, 8000, and 7000 Series processors.High-Speed Memory – Supports DDR5 up to 8200+ MT/s (OC) for ultra-fast performance.Next-Gen Storage – Features PCIe 5.0 & PCIe 4.0 M.2 slots, plus 4x SATA 6Gb/s.Superior Connectivity – Includes Intel® WiFi 6E, 2.5GbE LAN, USB Type-C & USB 3.2.Enhanced Display Support – Offers HDMI 2.1 & DisplayPort 1.4 for 4K resolution.Advanced Cooling – Multiple fan headers & robust thermal solutions for stability.Durable Build – Reinforced PCIe slots & Q-Flash Plus for BIOS updates.Why Choose Gigabyte B850 Eagle WiFi6E?The Gigabyte B850 Eagle WiFi6E Price in Bangladesh makes it an excellent choice for gamers and professionals looking for high performance, superior connectivity, and advanced cooling in an ATX form factor. Order online or visit our shop today... | SpecificationBasic InformationSupported CPU LGA1700 socket: Support for 12th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors L3 cache varies with CPUChipset Intel Z690 Express ChipsetBIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Form Factor ATX Form Factor; 30.5cm x 24.4cmAudio Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. Support for S/PDIF OutExpansion SlotsPCI 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 5.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x16 slot, running at x1 (PCIEX1_4) 2 x PCI Express x1 slots (The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)M.2 Socket 3 x Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Enlarged Thermal GuardsMemoryType DDR5Slots 4 x DIMMSupported Memory Support for DDR5 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules Dual-channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modulesMaximum Memory Up to 128 GB (32 GB single DIMM capacity)GraphicsGraphics Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologiesConnector & PortsHDMI 1 x HDMI portDisplay Port (s) 1 x DisplayPortUSB (s) Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)Wireless Communication module Intel Wi-Fi 6 AX201 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rateSupported Storage CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory ReadyAudio 1 x front panel audio headerInternal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x reset jumper 1 x Q-Flash Plus button 1 x Clear CMOS jumperTPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)OthersSpecial Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress InstallBundled Software Norton Internet Security (OEM version) cFosSpeedWarranty InformationManufacturing Warranty 3 yearsGIGABYTE Z690 UD AX DDR512th Gen ATX MotherboardThe GIGABYTE Z690 UD AX 12th Gen ATX Motherboard is featured with Direct 16+1+2 Digital VRM Design with 60A Power Stage and Tantalum Polymer Capacitor, DDR5 XTREME MEMORY Design, Fins-Array III Heatsink, Direct-Touch Heatpipe II, NanoCarbon Baseplate, M.2 Thermal Guard III, AQUANTIA 10GbE LAN. It is supported with LGA1700 socket: Support for 12th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors. It comes with Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs. It has a DDR5 XTREME MEMORY Design with SMD DIMM and Shielded Memory Routing. Advanced Thermal Solution with NanoCarbon Fins-Array III Heatsink, Direct-Touch Heatpipe II, and NanoCarbon Baseplate. It comes with Intel WIFI6 802.11ax 2T2R & BT5.2 with AERO Antenna. It has a Fast 2.5GbE LAN with Bandwidth Management. It has 3 x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guards. The SuperSpeed USB 3.2 Gen2x2 TYPE-C delivers up to 20Gb/s transfer speeds. It features RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips. The Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP, and Noise Detection. The GIGABYTE Z690 UD AX comes with 3 years of warranty... | SpecificationBasic InformationSupported CPU Supports 12th/13th Gen Intel Core Processors, Pentium Gold, and Celeron Processors LGA 1700Chipset INTEL Z790Form Factor ATX Form Factor 243.84mmx304.8mmAudio Realtek ALC897 Codec 7.1-Channel High-Definition AudioExpansion SlotsPCI 3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 PCIe 3.0 supports up to x1 (From Chipset)M.2 Socket 4x M.2 slotMemoryType DDR4Supported Memory 4x DDR4, Maximum Memory Capacity 128GB Max. overclocking frequency: 1DPC 1R Max speed up to 5333+ MHz 1DPC 2R Max speed up to 4800+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)Maximum Memory 128GBGraphicsGraphics 1x HDMI 1x DisplayPort Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz Support DP 1.4, the maximum resolution of 4K 60HzConnector & PortsHDMI 1x HDMI 2.1Display Port (s) 1x DisplayPort 1.4USB (s) 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)LAN Port (s) Intel 2.5Gbps LANWireless Communication module Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2, FIPS, FISMASupported Storage 4x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4, supports 22110/2280/2260/2242 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G portAudio 1x Front Audio (JAUD)Internal I/O Ports 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 4x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type CTPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)OthersSpecial Features LED FEATURE: 4x EZ Debug LEDWarranty InformationManufacturing Warranty 3 yearsMSI PRO Z790-P WIFI DDR4 Intel 12th and 13th Gen ATX Motherboard The performance and connection provided by the MSI PRO Z790-P WIFI DDR4 LGA 1700 ATX Motherboard are enough. This ATX motherboard offers four DDR4 RAM slots that support dual-channel memory and can be overclocked to 5333 MHz. It uses the Intel Z790 chipset and the LGA 1700 socket. Storage space is provided by six SATA III and four M.2 ports, which support RAID 0, 1, 5, and 10. Utilize the PCIe 5.0 x16, PCIe 4.0 x16, PCIe 3.0 x16, and PCIe 3.0 x1 slots to install GPUs or other adapter cards. Profit from quick networking with a 2.5 GbE Intel LAN and Wi-Fi 6E; quickly connect to wireless accessories with Bluetooth 5.2. 7.1 channel surround sound is provided by the Realtek ALC897 audio codec, which also includes rear analog output ports. A USB 3.2 Gen 2x2 Type-C connector, two USB 3.2 Gen 1 ports, and four USB 2.0 Type-A connections are used to connect peripheral devices. Additionally, there is a PS/2 port for older devices. For video output, DisplayPort and HDMI are employed. On the back I/O panel, there is also a Flash BIOS button, and internal headers support front-panel A TPM module, RGB connections, chassis intrusion, USB 3.2 Gen 2 Type-C and Type-A connectors, and other features are included. The warranty period for the MSI PRO Z790-P WIFI DDR4 ATX Motherboard is three years... |
