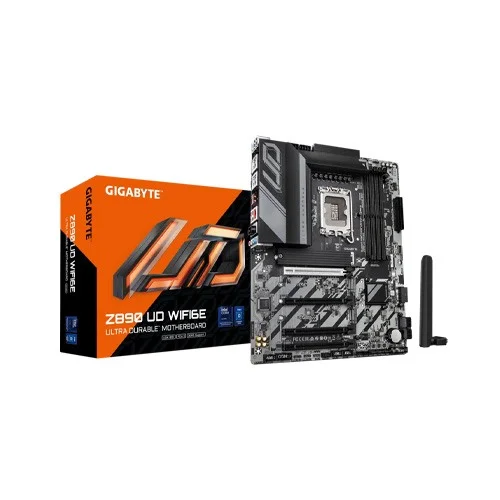

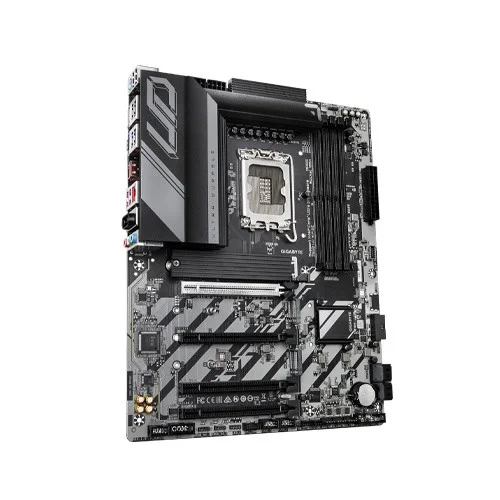

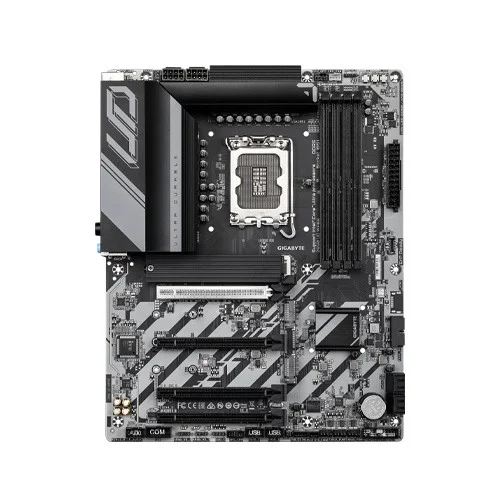

Gigabyte Z890 UD WIFI6E Motherboard

Name: Gigabyte Z890 UD WIFI6E Motherboard
Brand: GIGABYTE
Price: 33.00 BDT
Availability: InStock

Save: 4000৳ (11%)

Gigabyte Z890 UD WIFI6E Motherboard

Stock: In Stock
Model: Z890 UD WIFI6E
Product id: 27340

Based on 0 reviews. - Write a review

33,500৳

37,500৳

Ex Tax: 33,500৳

EMI starts at 11,747৳/month. View all 25 banks EMI plans >

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

Support for Intel® Core™ Ultra Processors
Intel® Z890 Express Chipset
Integrated Graphics Processor-Intel® HD Graphics support
Support for GIGABYTE Control Center (GCC)

Basic Information
Memory	Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Support CUDIMM memory module (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Supported CPU	LGA1851 socket: Support for Intel® Core™ Ultra Processors L3 cache varies with CPU * Please refer to "CPU Support List" for more information.
Chipset	Intel® Z890 Express Chipset
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Graphics Card	Integrated Graphics Processor-Intel® HD Graphics support: - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version (Graphics specifications may vary depending on CPU support.)
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Expansion Slots
PCI	CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2) - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x1 (PCIEX1)
Memory
Storage Type	CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Connector & Ports
USB (s)	CPU: - 1 x USB4® USB Type-C® port on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Wireless Communication module	Intel® Wi-Fi 6E AX211 (PCB rev. 1.0) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Back Panel Connectors	4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x DisplayPort (Note) 4 x USB 3.2 Gen 1 ports 1 x USB4® USB Type-C® port (DisplayPort (Note)) 1 x USB 3.2 Gen 2 Type-A port (red) 1 x RJ-45 port 2 x SMA antenna connectors (2T2R) 3 x audio jacks (Note) Actual support may vary by CPU.
Internal I/O Ports	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 2 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x power button 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
Network & Connectivity
Lan	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Software
Operating System	Support for Windows 11 64-bit
General information
Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup Bundled Software Norton® Internet Security (OEM version) LAN bandwidth management software

Gigabyte Z890 UD WIFI6E Motherboard

Gigabyte Z890 UD WIFI6E Motherboard is a high-performance solution designed for the latest Intel® Core™ Ultra processors, offering cutting-edge features for gamers, creators, and tech enthusiasts. With the advanced Intel® Z890 Express Chipset, this motherboard supports the newest LGA1851 socket, ensuring compatibility with powerful CPUs and unlocking superior multitasking and processing performance.Equipped with DDR5 memory support, it accommodates up to 256GB of ultra-fast RAM with speeds reaching an impressive 9200MHz (OC). The dual-channel architecture ensures smooth and efficient data handling, making it ideal for demanding applications. This motherboard also supports ECC and non-ECC unbuffered DIMMs, adding an extra layer of stability and reliability.The Z890 UD WIFI6E is future-ready with PCIe 5.0 technology, offering unparalleled speed and bandwidth for graphics cards and NVMe SSDs. It features multiple M.2 slots and SATA connectors for versatile storage solutions, along with RAID support to enhance data redundancy and performance.Networking is seamless with built-in Intel® Wi-Fi 6E and Realtek® 2.5GbE LAN, providing blazing-fast internet speeds and enhanced connectivity. Bluetooth 5.3 adds convenience for connecting peripherals wirelessly. Onboard audio powered by Realtek® ensures crystal-clear sound for an immersive experience.The motherboard boasts comprehensive connectivity options, including USB4®, USB 3.2, and Type-C® ports, ensuring compatibility with the latest devices. Advanced features like Q-Flash Plus, RGB lighting control, and fan monitoring enhance user experience and customization.The Gigabyte Z890 UD WIFI6E Motherboard is housed in a durable ATX form factor, making it suitable for high-performance builds. Backed by Gigabyte’s reliable design and a range of bundled software, it is the perfect choice for building your next-gen PC.

Features

Processor Compatibility: Supports Intel® Core™ Ultra processors with LGA1851 socket.
Memory Support: DDR5 RAM up to 256GB with speeds up to 9200MHz (OC).
Connectivity: Integrated Intel® Wi-Fi 6E, Realtek® 2.5GbE LAN, and Bluetooth 5.3.
Storage Options: PCIe 5.0 M.2 slots and multiple SATA ports with RAID support.
Expansion Slots: PCIe 5.0 and PCIe 4.0 slots for GPUs and add-on cards.
USB Features: USB4®, USB 3.2 Gen 2, and Type-C® for fast data transfer and compatibility.
Enhanced Audio: Realtek® audio codec for immersive 7.1 surround sound.
Customization: RGB lighting control and support for addressable LED strips.
Advanced Cooling: Multiple fan and water cooling headers for thermal management.
Durable Design: ATX form factor with Gigabyte's premium components for reliability.
