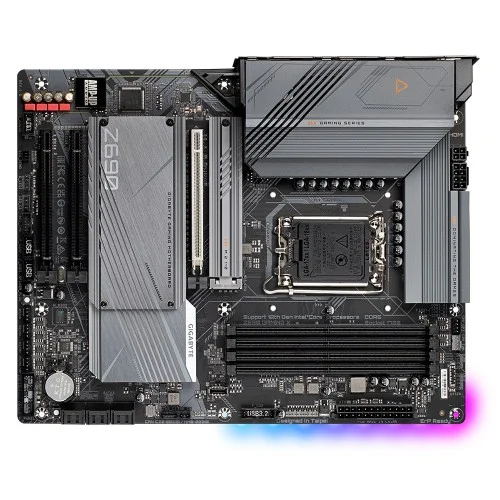

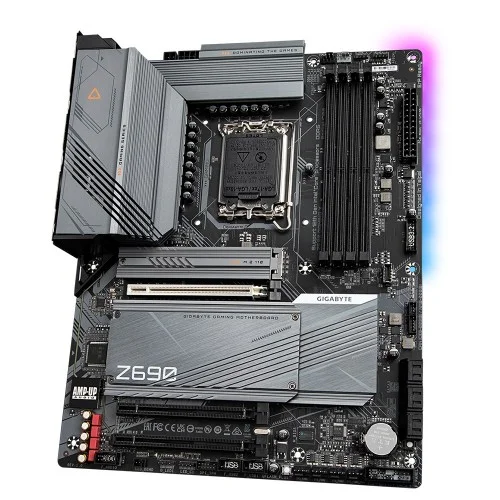

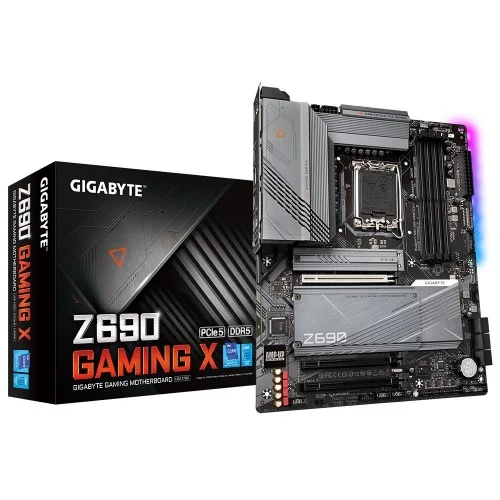

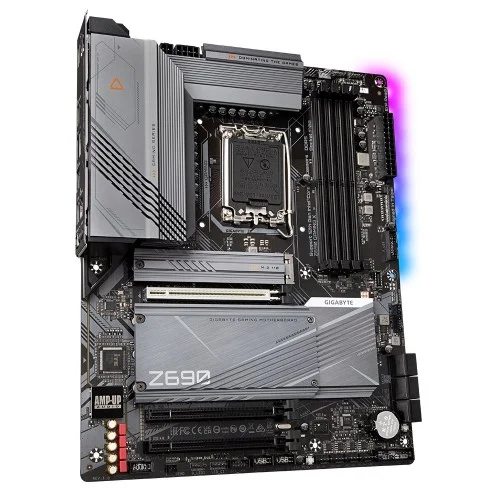

Gigabyte Z690 GAMING X DDR5 12th Gen ATX Motherboard
Out Of Stock
Gigabyte Z690 GAMING X DDR5 12th Gen ATX Motherboard
- Stock: Out Of Stock
- Model: Z690 GAMING X
- Product id: 21775
25,300৳
Ex Tax: 25,300৳
- • LGA1700 socket support 12th Gen Intel Series Processors • Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs • 16+1+2 Twin Hybrid Digital VRM Design • Fast 2.5GbE LAN with Bandwidth Management
Quick Compare
| Product Details | ||||
| Product | Gigabyte Z690 GAMING X DDR5 12th Gen ATX Motherboard | GIGABYTE B760M AORUS ELITE AX 13TH GEN Micro ATX MOTHERBOARD | GIGABYTE B760M AORUS ELITE X AX DDR5 mATX Motherboard | Gigabyte B650M Gaming X AX DDR5 M-ATX AMD Motherboard |
| Image |  |
 |
 |
 |
| Price | 25,300৳ | |
|
|
| Model | Z690 GAMING X | B760M AORUS ELITE AX | B760M AORUS ELITE X AX | B650M GAMING X AX |
| Brand | GIGABYTE | GIGABYTE | GIGABYTE | GIGABYTE |
| Availability | Out Of Stock | In Stock | In Stock | In Stock |
| Rating | Based on 3 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
Based on 0 reviews. |
| Summary | Gigabyte Z690 GAMING X 12th Gen ATX Motherboard The Gigabyte Z690 GAMING X DDR4 12th Gen ATX Motherboard is featured with direct 16+1+2 Digital VRM Design with 60A Power Stage and Tantalum Polymer Capacitor, DDR4 XTREME MEMORY Design, Fins-Array III Heatsink, Direct-Touch Heatpipe II, NanoCarbon Baseplate, M.2 Thermal Guard III, 125dB ESS Sabre Audio, Intel WIFI 6E 802.11ax, AQUANTIA 10GbE LAN. It is supported with LGA1700 socket: Support for 12th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors. It comes with Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs. Advanced Thermal Solution with NanoCarbon Fins-Array III Heatsink, Direct-Touch Heatpipe II, and NanoCarbon Baseplate. It has a Fast 2.5GbE LAN with Bandwidth Management. It is equipped with AMP-UP Audio with ALC1220 and WIMA Audio Capacitors. It has 4 x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guards. The SuperSpeed USB 3.2 Gen2x2 TYPE-C delivers up to 20Gb/s transfer speeds. It features RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips. The Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP, and Noise Detection. Gigabyte Z690 GAMING X Review Intel’s new 12th generation of CPUs, named Adler Lake, for those interested, have once again changed their socket. The 11th generation CPUs used the LGA1200 socket and with the 12th generation, they have gone to LGA1700. The increase in number is due to the increase in pins. But thanks to a new socket, manufacturers have had to create a new range of motherboards. Thanks to Gigabyte, we have been able to upgrade our setup with a new Gigabyte Z690 Gaming X motherboard. The Gigabyte Z690 Gaming X motherboard does come in two variations, DDR4, and DDR5 versions. We are using the DDR4 version to take advantage of the 32Gb of RAM that we currently have. We will do an overview of the Gigabyte Z690 Gaming X motherboard as well as our experience of installing and setting up our newly powered rig powered by the wonderful Gigabyte! The Gigabyte Z690 GAMING X comes with 3 years of warranty. Specification Basic Information Supported CPU LGA1700 socket: Support for 12th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors L3 cache varies with CPU Chipset Intel Z690 Express Chipset BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Form Factor ATX Form Factor; 30.5cm x 24.4cm Audio Realtek ALC1220-VB CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2-channel analog output Support for S/PDIF Out 7.1-channel digital signals Expansion Slots PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 5.0 standard.) 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) (The PCIEX4 slots conform to PCI Express 3.0 standard.) M.2 Socket 4 x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Enlarged Thermal Guards Memory Type DDR5 Slots 4 x DIMM Supported Memory Support for DDR5 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules Dual-channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Maximum Memory Up to 128 GB (32 GB single DIMM capacity) Graphics Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies Connector & Ports HDMI 1 x HDMI port Display Port (s) 1 x DisplayPort USB (s) Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) LAN Port (s) Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Supported Storage CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to "2-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.Intel Optane Memory Ready * System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset. Audio 1 x front panel audio header Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x reset jumper 1 x Q-Flash Plus button 1 x Clear CMOS jumper TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) Warranty Information Manufacturing Warranty 3 years Others Special Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install Bundled Software Norton Internet Security (OEM version) cFosSpeed .. | Key Features Motherboard Supported CPU LGA1700 Socket: Support For The 13th And 12th Generation Intel® Core™, Pentium® Gold And Celeron® Processors* L3 Cache Varies With The CPU Chipset Intel® B760 Express Chipset Memory Support For DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/S Memory Modules 4 X DDR DIMM Sockets Supporting Up To 128 GB (32 GB Single DIMM Capacity) Of System Memory Dual Channel Memory Architecture Support For ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules (Operate In Non-ECC Mode) Support For Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules Support For Extreme Memory Profile (XMP) Memory Modules Graphics Integrated Graphics Processor-Intel® HD Graphics Support: 1 X HDMI Port, Supporting A Maximum Resolution Of 4096x2160@60 Hz * Support For HDMI 2.0 Version And HDCP 2.3. 1 X DisplayPort, Supporting A Maximum Resolution Of 4096x2304@60 Hz * Support For DisplayPort 1.2 Version And HDCP 2.3 Multi-GPU Support Support For AMD CrossFireX™ Technology Slots CPU: 1 X PCI Express X16 Slot, Supporting PCIe 4.0 And Running At X16 (PCIEX16) * For Optimum Performance, If Only One PCI Express Graphics Card Is To Be Installed, Be Sure To Install It In The PCIEX16 Slot. Chipset: 1 X PCI Express X16 Slot, Supporting PCIe 4.0 And Running At X4 (PCIEX4) Support For AMD CrossFireX™ Technology Supported Storage CPU: 1 X M.2 Connector (Socket 3, M Key, Type 2280 PCIe 4.0 X4/X2 SSD Support) (M2A_CPU) Chipset: 1 X M.2 Connector (Socket 3, M Key, Type 22110/2280 PCIe 4.0 X4/X2 SSD Support) (M2P_SB) 4 X SATA 6Gb/S Connectors RAID 0, RAID 1, RAID 5, And RAID 10 Support For SATA Storage Devices Bluetooth 5.3 LAN Realtek® 2.5GbE LAN Chip (2.5 Gbps/1 Gbps/100 Mbps) Audio Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-Channel * You Can Change The Functionality Of An Audio Jack Using The Audio Software. To Configure 7.1-Channel Audio, Access The Audio Software For Audio Settings. Support For S/PDIF Out USB Port Chipset: 1 X USB Type-C® Port On The Back Panel, With USB 3.2 Gen 2x2 Support 1 X USB Type-C® Port With USB 3.2 Gen 2 Support, Available Through The Internal USB Header 1 X USB 3.2 Gen 2 Type-A Port (Red) On The Back Panel 1 X USB 3.2 Gen 1 Port On The Back Panel 4 X USB 2.0/1.1 Ports Available Through The Internal USB Headers Chipset+USB 3.2 Gen 1 Hub: 4 X USB 3.2 Gen 1 Ports (2 Ports On The Back Panel, 2 Ports Available Through The Internal USB Header) Chipset+USB 2.0 Hub: 4 X USB 2.0/1.1 Ports On The Back Panel Internal I/O Ports 1 X 24-Pin ATX Main Power Connector 1 X 8-Pin ATX 12V Power Connector 1 X 4-Pin ATX 12V Power Connector 1 X CPU Fan Header 3 X System Fan Headers 2 X Addressable LED Strip Headers 2 X RGB LED Strip Headers 2 X M.2 Socket 3 Connectors 4 X SATA 6Gb/S Connectors 1 X Front Panel Header 1 X Front Panel Audio Header 1 X USB Type-C® Header, With USB 3.2 Gen 2 Support 1 X USB 3.2 Gen 1 Header 2 X USB 2.0/1.1 Headers 2 X Thunderbolt™ Add-In Card Connectors 1 X Trusted Platform Module Header (For The GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 Module Only) 1 X Q-Flash Plus Button 1 X Reset Button 1 X Reset Jumper 1 X Clear CMOS Jumper External I/O Ports 2 X SMA Antenna Connectors (2T2R) 1 X USB Type-C® Port, With USB 3.2 Gen 2x2 Support 1 X USB 3.2 Gen 2 Type-A Port (Red) 3 X USB 3.2 Gen 1 Ports 4 X USB 2.0/1.1 Ports 1 X HDMI Port 1 X DisplayPort 1 X RJ-45 Port 1 X Optical S/PDIF Out Connector 2 X Audio Jacks WiFi Intel® Wi-Fi 6E AX211 WIFI A, B, G, N, Ac, Ax, Supporting 2.4/5/6 GHz Carrier Frequency Bands Support For 11ax 160MHz Wireless Standard And Up To 2.4 Gbps Data Rate DIMENSIONS 24.4cm X 24.4cm Form Factor Micro ATX BIOS 1 X 256 Mbit Flash Use Of Licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5. Special Features Support For GIGABYTE Control Center (GCC) * Available Applications In GCC May Vary By Motherboard Model. Supported Functions Of Each Application May Also Vary Depending On Motherboard Specifications. Support For Q-Flash Support For Q-Flash Plus Software Features Bundled Software Norton® Internet Security (OEM Version) LAN Bandwidth Management Software Others I/O Controller ITE® I/O Controller ChipH/W Monitoring Voltage Detection Temperature Detection Fan Speed Detection Water Cooling Flow Rate Detection Fan Fail Warning Fan Speed Control Warranty 3 Years GIGABYTE B760M AORUS ELITE AX 13TH GEN Micro ATX MOTHERBOARD The GIGABYTE B760M AORUS ELITE AX Motherboard is a high-performance motherboard that supports Intel® CoreTM, Pentium® Gold, and Celeron® Processors from the 13th and 12th Generations. This motherboard can give a smooth performance for demanding applications thanks to DDR5 memory support and the Intel® B760 Express Chipset. This motherboard's inbuilt graphics processor supports resolutions of up to 4096x2304 @ 60 Hz and has HDMI and DisplayPort outputs. The Realtek® Audio CODEC supports high-definition audio with 2/4/5.1/7.1-channel capability, while the Realtek® 2.5GbE LAN chip and Intel® Wi-Fi 6E AX211 module offer quick and dependable networking choices. This motherboard also has four SATA 6Gb/s connections, one M.2 connector (Socket 3, M key), and one USB Type-C® port on the rear panel that supports USB 3.2 Gen 2x2. This motherboard is an excellent choice for a powerful and versatile system since it supports AMD CrossFireXTM technology and has 4 USB 3.2 Gen 1 connections. .. | GIGABYTE B760M AORUS ELITE X AX DDR5 mATX MotherboardGIGABYTE B760M AORUS ELITE X AX DDR5 mATX Motherboard, a compact powerhouse designed to deliver exceptional performance and versatility in a smaller form factor. Whether you're a gamer, content creator, or enthusiast, this motherboard combines advanced features, reliable construction, and cutting-edge technology to take your computing experience to new heights. The GIGABYTE B760M AORUS ELITE X AX DDR5 mATX Motherboard is built to support the latest Intel 12th generation Alder Lake processors, ensuring powerful performance for demanding applications and games. With its LGA 1700 socket and support for DDR5 memory, this motherboard maximizes the potential of the latest CPUs, enabling seamless multitasking, smooth gaming experiences, and lightning-fast data transfers. Despite its smaller size, the B760M AORUS ELITE X AX doesn't compromise on expansion capabilities. Equipped with PCIe 5.0 slots, this motherboard allows you to install high-performance graphics cards, storage devices, and other expansion cards to meet your needs. With PCIe 5.0, you can take advantage of increased bandwidth and faster data transfer speeds, unleashing the full potential of your system. Connectivity is another area where the B760M AORUS ELITE X AX shines. With a range of USB ports, including USB 3.2 Gen 2x2 and USB Type-C, Thunderbolt 4 support, and the latest Wi-Fi 6E technology, this motherboard ensures lightning-fast data transfers and seamless connectivity. Whether you're gaming online, streaming content, or working on data-intensive projects, this motherboard keeps you connected without compromise. Efficient cooling is a priority for the B760M AORUS ELITE X AX. With multiple fan headers, advanced thermal design, and integrated heatsinks, this motherboard ensures optimal heat dissipation, even during intense workloads. Say goodbye to overheating and hello to uninterrupted performance and stability. Additionally, the B760M AORUS ELITE X AX features an advanced audio solution, delivering immersive and crystal-clear sound for your gaming and multimedia needs. With high-quality audio components and advanced audio technologies, you can experience every detail and nuance in your favorite games, movies, and music. Upgrade your computing experience with the GIGABYTE B760M AORUS ELITE X AX DDR5 mATX Motherboard. With its compact size, powerful performance, extensive connectivity options, efficient cooling, and immersive audio, this motherboard is the perfect choice for those seeking a high-performance system in a smaller form factor. Embrace the power and versatility of the B760M AORUS ELITE X AX and take your computing to new heights... | Gigabyte B650M Gaming X AX DDR5 M-ATX AMD MotherboardGigabyte B650M Gaming X AX DDR5 M-ATX AMD Motherboard stands as a compact yet powerful solution tailored for gaming enthusiasts and content creators alike. Designed to support AMD Ryzen processors and equipped with DDR5 memory compatibility, this Micro-ATX motherboard packs a punch in terms of performance and features. At the heart of the B650M Gaming X AX lies its support for AMD Ryzen processors, providing users with the processing power needed to tackle demanding tasks, including gaming, content creation, and productivity. The AM4 socket ensures compatibility with a wide range of Ryzen CPUs, allowing users to choose the processor that best fits their needs and budget. The motherboard's Micro-ATX form factor offers a balance between compactness and expandability, making it suitable for smaller PC builds without sacrificing performance or features. Despite its smaller size, the B650M Gaming X AX boasts a robust set of features, including PCIe 4.0 support, DDR5 memory compatibility, and ample connectivity options. With support for DDR5 memory modules, the B650M Gaming X AX offers faster data transfer speeds and improved system responsiveness compared to DDR4 memory. This allows users to take full advantage of the latest memory technology for enhanced gaming performance and multitasking capabilities. In terms of connectivity, the B650M Gaming X AX offers a range of options to meet modern gaming and networking needs. The motherboard features built-in Wi-Fi 6E and 2.5G Ethernet connectivity, providing users with fast and reliable networking options for online gaming, streaming, and content creation. The motherboard also includes PCIe 4.0 slots for high-speed storage solutions, such as NVMe SSDs, as well as multiple USB ports for connecting peripherals and accessories. Additionally, RGB Fusion 2.0 technology allows users to customize the motherboard's RGB lighting effects, adding a touch of personalization to their gaming setup. Overall, the Gigabyte B650M Gaming X AX DDR5 M-ATX AMD Motherboard offers a compelling combination of performance, features, and compactness, making it an ideal choice for gamers and content creators looking to build a powerful yet space-efficient PC system.Features;Micro-ATX Form Factor: Designed in a Micro-ATX form factor, balancing compactness with expandability, making it suitable for smaller PC builds while retaining essential features.AMD Ryzen Processor Support: Compatible with AMD Ryzen processors, offering powerful computing performance for gaming, content creation, and multitasking.DDR5 Memory Compatibility: Supports DDR5 memory modules, providing faster data transfer speeds and improved system responsiveness compared to DDR4, enhancing gaming performance and multitasking capabilities.PCIe 4.0 Support: Features PCIe 4.0 slots for high-speed data transfer, enabling compatibility with the latest graphics cards and NVMe SSDs for faster storage access.Built-in Wi-Fi 6E and 2.5G Ethernet: Equipped with built-in Wi-Fi 6E and 2.5G Ethernet connectivity options, ensuring fast and reliable networking for online gaming, streaming, and content creation.USB Connectivity: Offers multiple USB ports, including USB 3.2 Gen 2 for high-speed data transfer and quick device charging, supporting a wide range of USB peripherals and accessories.RGB Fusion 2.0: Incorporates RGB Fusion 2.0 technology for customizable RGB lighting effects, allowing users to personalize their gaming setup and create immersive lighting environments.Audio Enhancements: Features audio enhancements, including high-quality audio capacitors and audio noise guard design, providing immersive sound experiences for gaming and multimedia content.Comprehensive Cooling Solutions: Includes heatsinks on critical components and multiple fan headers for efficient heat dissipation, ensuring stable performance under heavy workloads and during extended gaming sessions.BIOS Features: Provides user-friendly BIOS features for easy system configuration and optimization, allowing users to fine-tune performance settings and overclocking parameters.Expansion Slots: Offers PCIe expansion slots for additional expansion cards, such as graphics cards, sound cards, and networking cards, enabling users to customize their PC setup according to their needs... |
