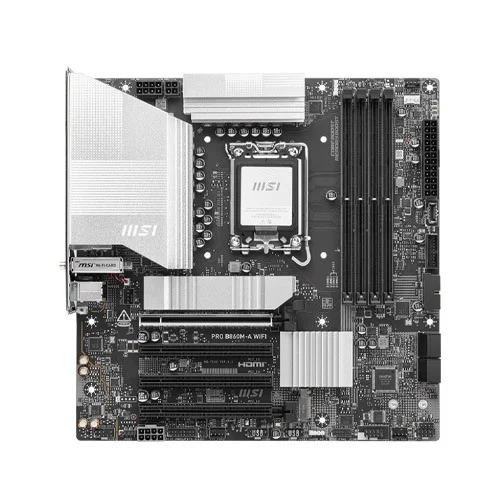

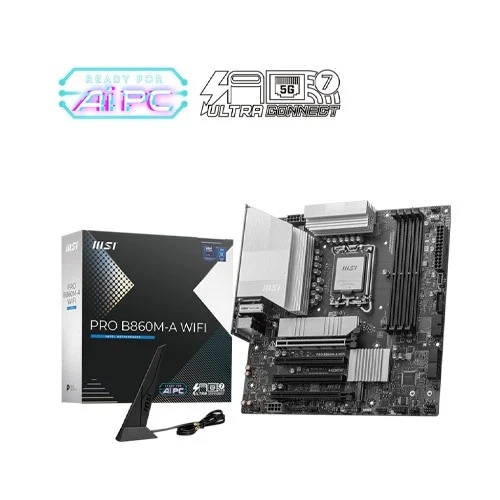

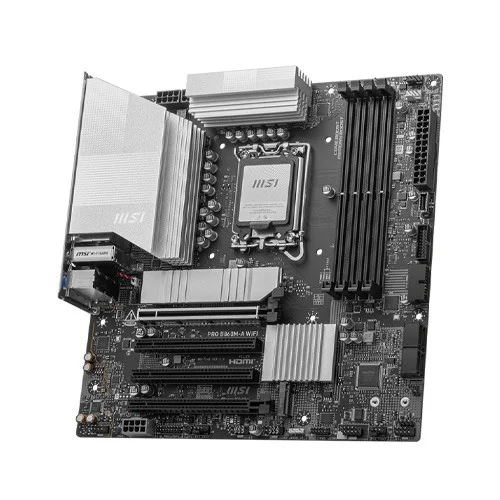

MSI PRO B860M-A WIFI M-ATX Intel Motherboard

Up Coming

MSI PRO B860M-A WIFI M-ATX Intel Motherboard

Stock: Up Coming
Model: PRO B860M-A WIFI
Product id: 27975

Based on 0 reviews. - Write a review

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে আমাদের হেল্পলাইন +8801612-266507 নম্বরে কল দিয়ে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851)
Up to DDR5 8600+ MT/s (OC)
5G LAN & Wi-Fi 7
The latest PCIe 5.0 solution with up to 128GB/s bandwidth

Basic Information
Supported CPU	Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
Chipset	INTEL B860
Form Factor	mATX 243.84mmx243.84mm
Audio	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Memory
Slots	4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
Supported Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 8800+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM
Graphics

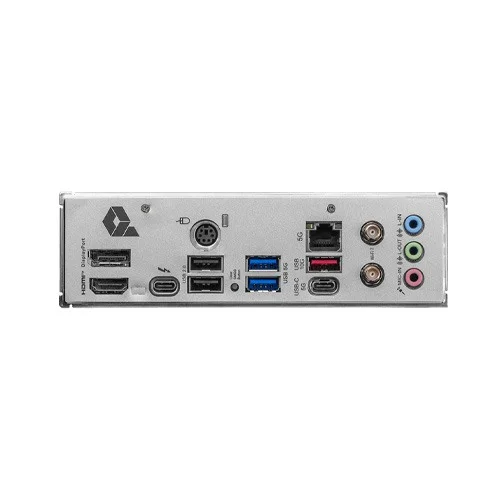

Graphics	1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
Connector & Ports
USB (s)	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 1x USB 5Gbps Type C (Rear) 4x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front)
LAN Port (s)	Realtek® 8126 5Gbps LAN
Wireless Communication module	Intel® Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM
Supported Storage	3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices 4x SATA 6G
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Internal I/O Ports	1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
Main Features
Operating System	Support for Windows® 11 64-bit
Others
Special Features	1x Thunderbolt4 ports (Rear) Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display
Warranty Information
Warranty	3 Years

MSI PRO B860M-A WIFI M-ATX Intel Motherboard

The MSI PRO B860M-A WIFI M-ATX Intel Motherboard is a high-performance motherboard designed to meet the needs of modern computing. Featuring the Intel B860 chipset, it supports the latest Intel Core Ultra processors (Series 2) with LGA 1851 socket. With its M-ATX form factor, it provides a compact yet powerful solution for building a high-performance PC that doesn’t compromise on features.This motherboard offers support for DDR5 memory with speeds ranging from 6400MT/s to 8800MT/s, delivering exceptional performance for multitasking and heavy workloads. It can accommodate up to 256GB of memory, ensuring ample capacity for memory-intensive applications. The board supports Intel XMP 3.0 for memory overclocking, allowing users to push their system to the limit for optimal performance.The MSI PRO B860M-A also offers advanced graphics capabilities, with HDMI 2.1 and DisplayPort 1.4 ports supporting 4K resolutions at 60Hz. It features a Thunderbolt 4 port with support for 8K display output, ultra-fast data transfer speeds, and charging for compatible devices. The board also includes 3 M.2 slots for high-speed storage and 4 SATA 6G ports for additional storage devices.Connectivity is taken to the next level with Intel Wi-Fi 7 and Bluetooth 5.4 support, ensuring fast and stable wireless connections. The 5Gbps LAN port guarantees smooth online gaming and streaming experiences. The motherboard also comes equipped with various USB ports, including 10Gbps Type A and C, ensuring a wide range of peripheral support.Built with durability and stability in mind, the MSI PRO B860M-A features four EZ Debug LEDs for easy troubleshooting. With a 3-year warranty, it provides reliable performance for both professional and personal use.

Features

Supports Intel Core Ultra Processors (Series 2) with LGA 1851 socket
DDR5 Memory support up to 256GB, with speeds from 6400MT/s to 8800MT/s (OC)
Thunderbolt 4 Port with 8K display support and 40Gbps data transfer
Wi-Fi 7 for fast wireless connectivity and Bluetooth 5.4 support
3 M.2 Slots and 4 SATA 6G ports for fast storage options
Multiple Display Outputs: HDMI 2.1, DisplayPort 1.4, and Thunderbolt 4
5Gbps Realtek LAN for high-speed wired network performance
Easy Debugging with 4x EZ Debug LEDs for troubleshooting
